EinScan Trak
Wireless Marker-Free Tracking System
- Tracking & Handheld Dual Modes
- Marker-Free Wireless 3D Scanning
- 38 + 7 + 1 Laser Lines
- 5MP Texture Camera
trak4 by SHINING 3D on Sketchfab
Trak in, Markers out
EinScan Trak is the world's first wireless, dual-form, marker-free tracking system, delivering a portable, professional 3D digitization solution for reverse engineering, cultural heritage preservation, automotive customization, and large-object digitization.

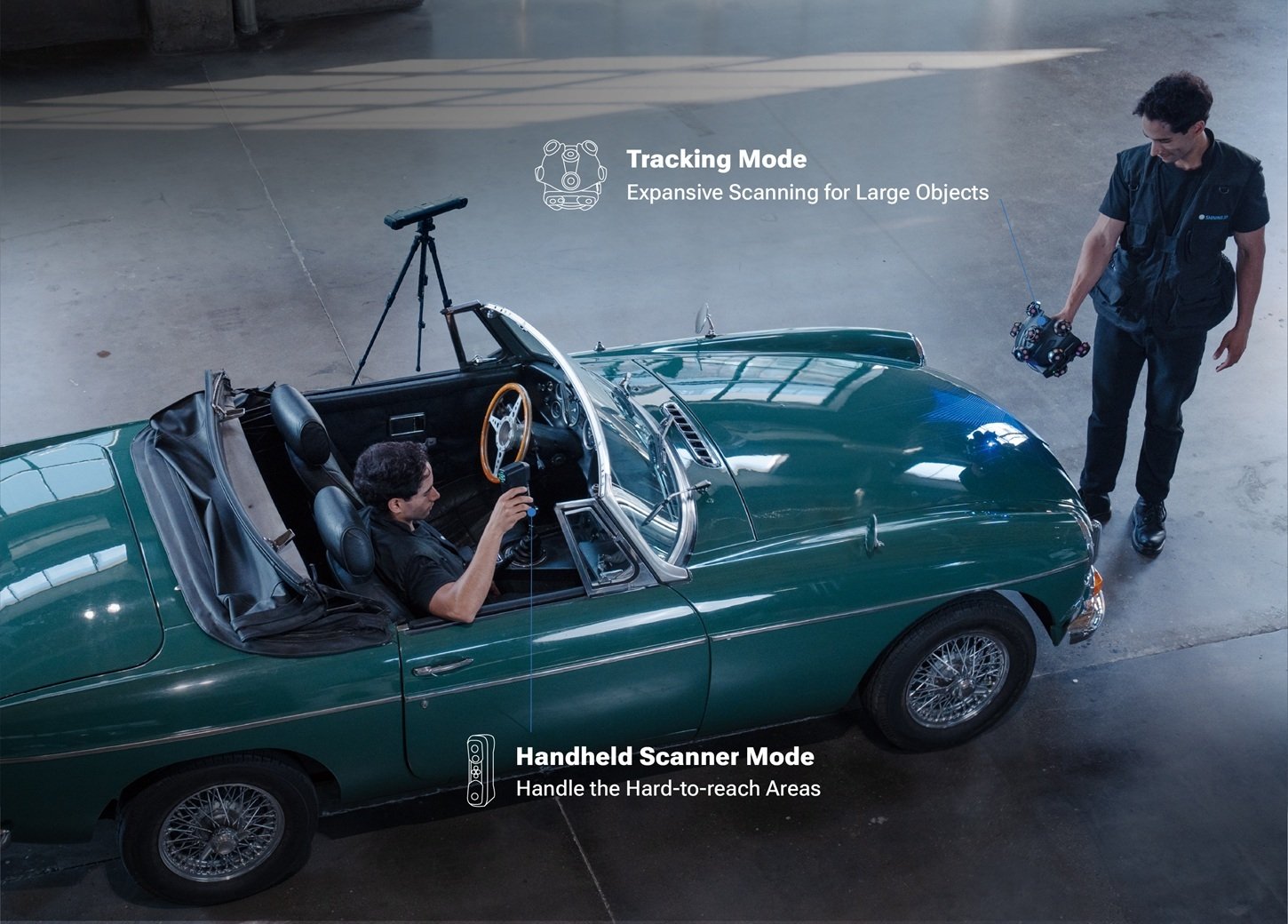

One System, Two Work Modes
Choose the right setup for your applications—detachable, easy to calibrate,and ready with one-click startup. Enables seamless switching and flexible combination of tracking mode and handheld scanner mode, supporting real-time adjustment during scanning and cross-mode resolution merging.

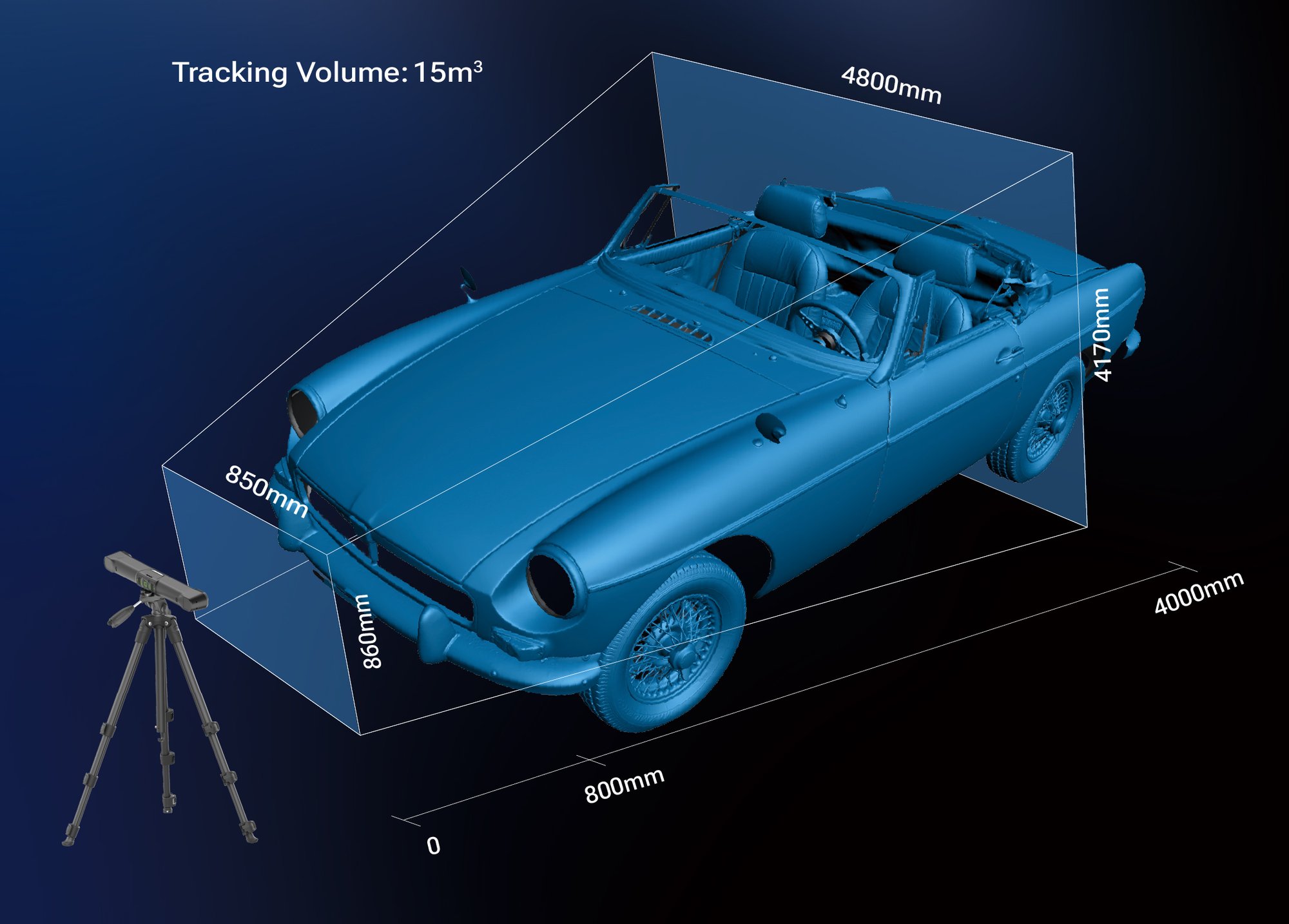

Wireless Freedom, Higher Efficiency
Equipped with Wi-Fi 6 module supports wireless scanning. Connects via an independent LAN and pairs automatically at startup. Enjoy 15m³ ultra-large tracking volume, giving you more freedom to move, capture, and create with higher efficiency.
*A router is required and included as standard.

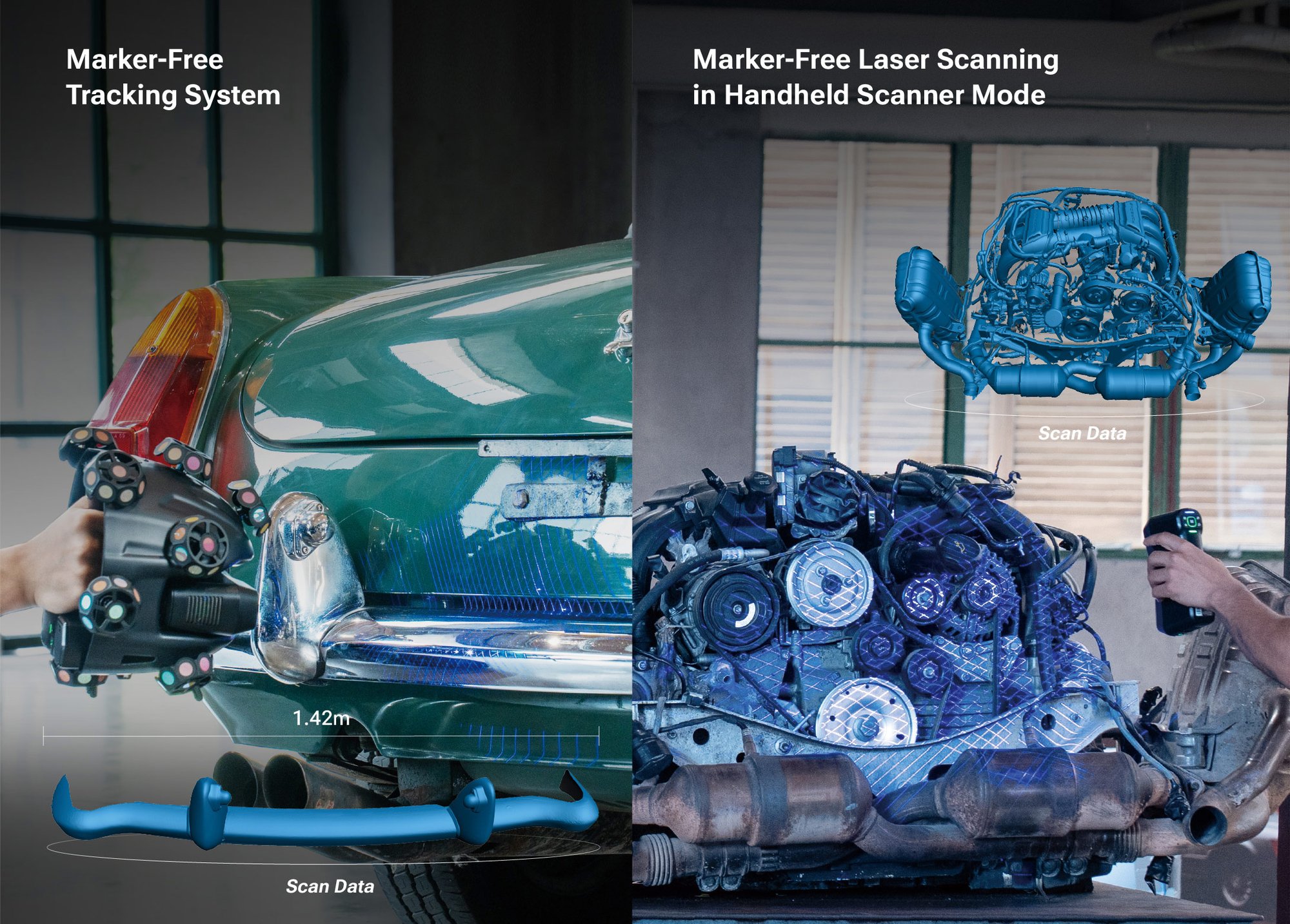

All-Scenario Marker-Free 3D Scanning
Marker-Free Tracking System: EinScan Trak features built-in retroreflective markers on its spherical scanner module, enabling the wireless tracker to precisely monitor the scanner’s position in real time.
Marker-Free Laser Scanning in Handheld Scanner Mode: For feature-rich surfaces, handheld scanner mode delivers
a smooth, marker-free scan experience.

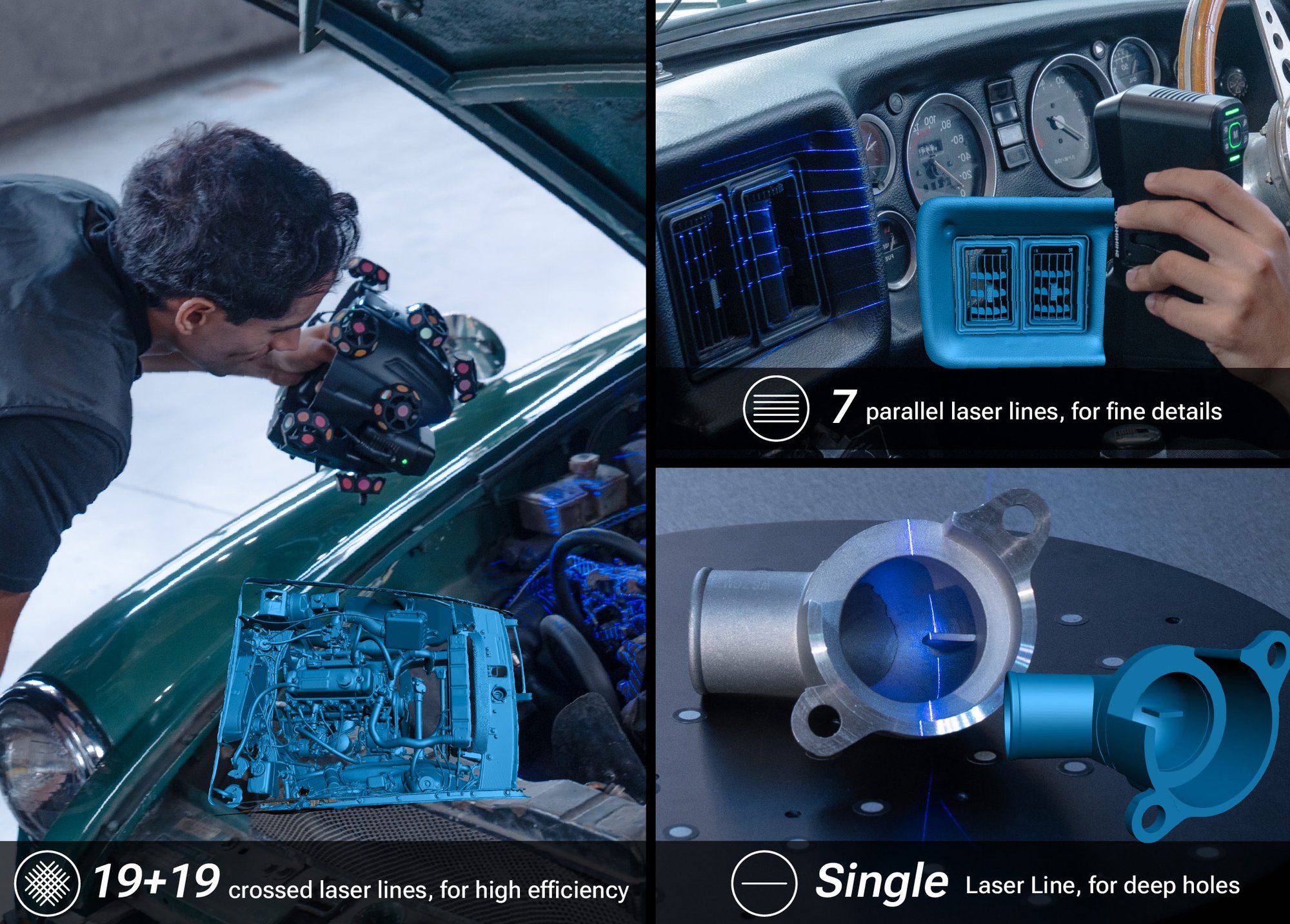

Three Scanning Modes for Diverse Needs
19+19 crossed laser lines acquire high-quality data from large objects quickly, delivering workflow efficiency and scanning flexibility.
7 parallel laser lines capture lines and sharp edges on automotive components with greater clarity.
Single laser line reaches deeper to capture fine details with 1:4 diameter- depth ratio, supporting applications such as vehicle reverse engineering.

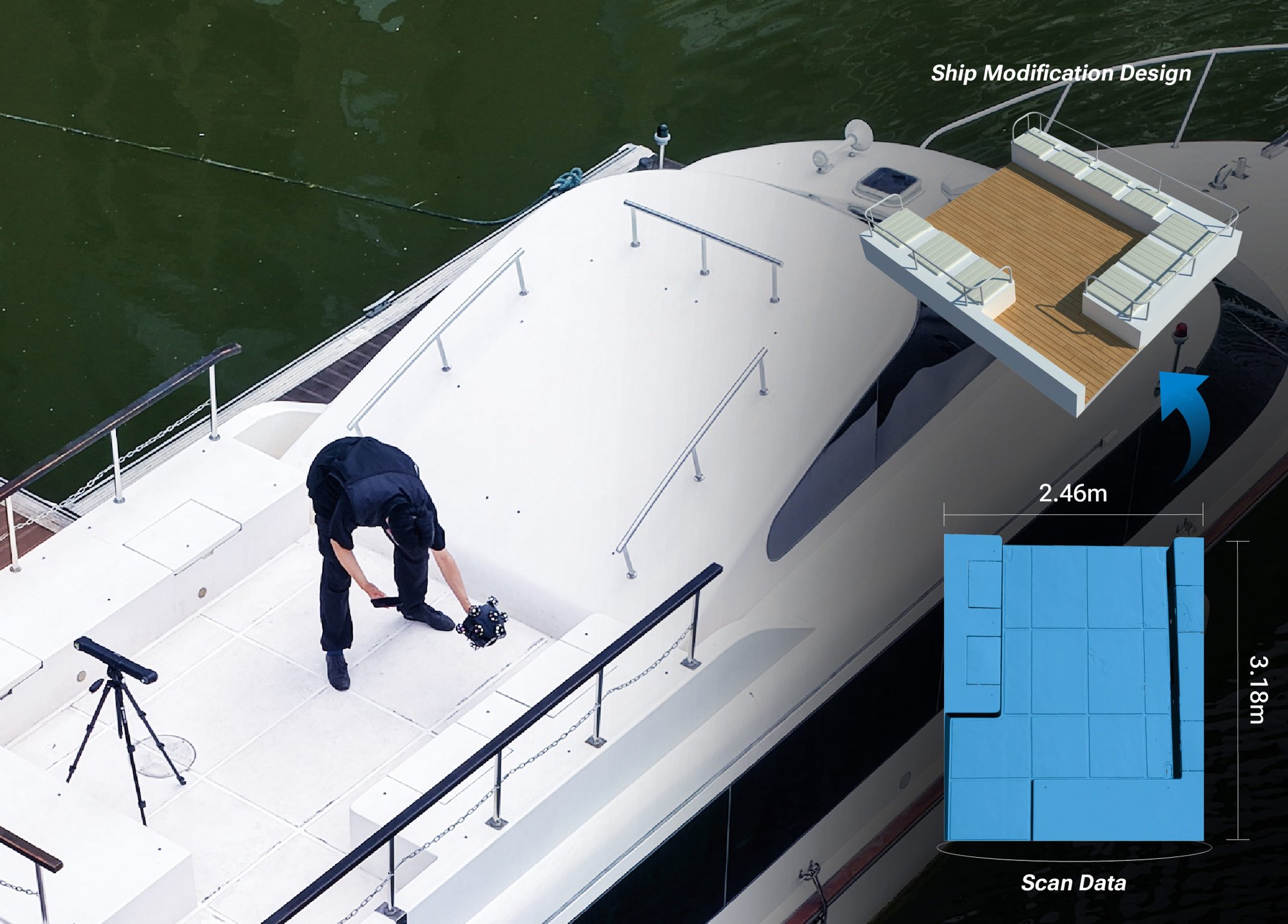

Adaptable to Every Task
- Ideal for Various Materials
Scan black and reflective surfaces (e.g., car rims) effortlessly without any data loss. - Multi-Environment Adaptability
Reliable scanning outdoor & indoor, supports scanning under strong outdoor light up to 110,000 lux.

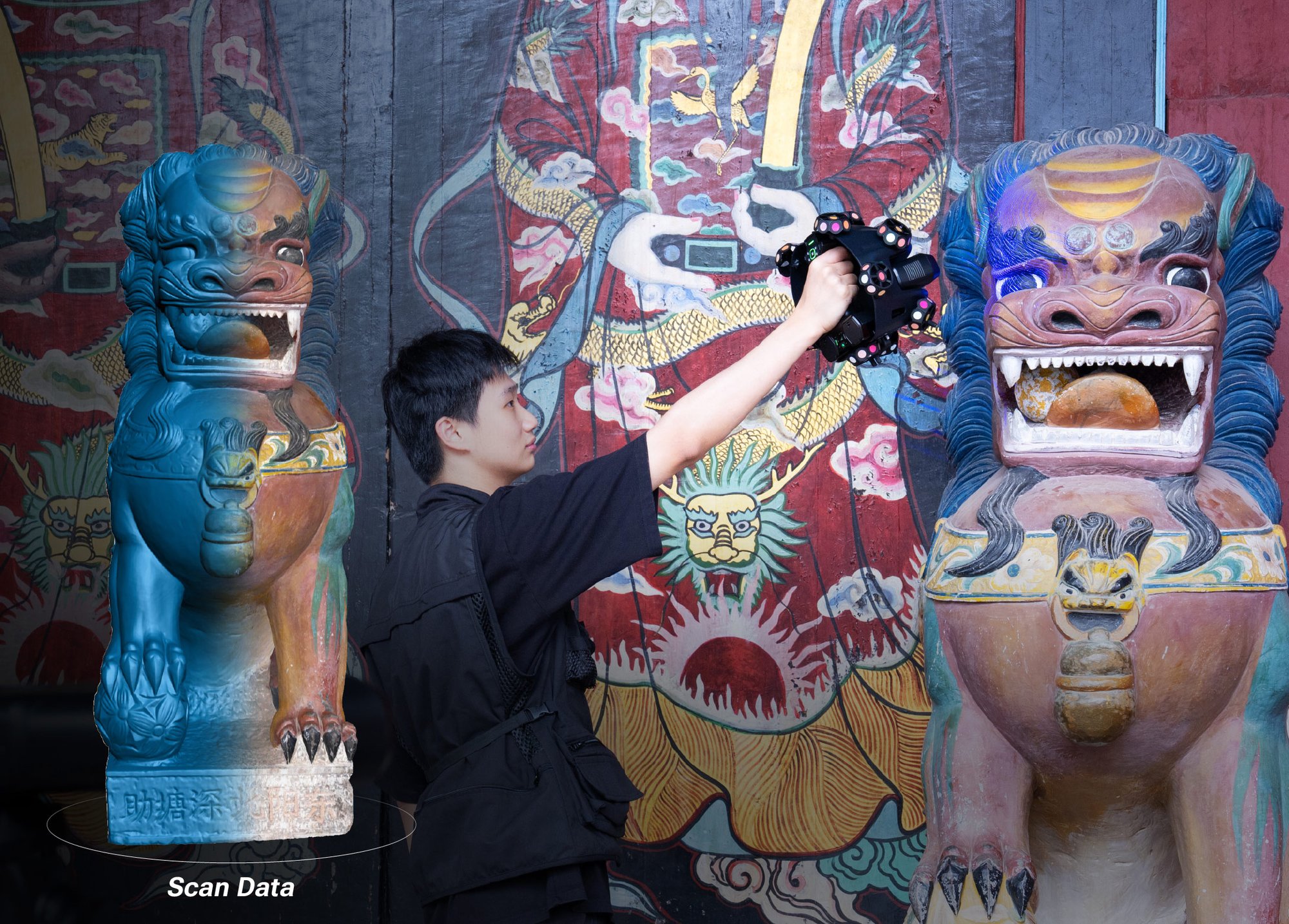

High-definition. True-color.
5MP HD texture scanning accurately captures object colors and material details. It breaks the stereotype that laser tracking 3D scanning lacks color, bringing the efficiency of tracking systems to cultural heritage, research, and other fields.

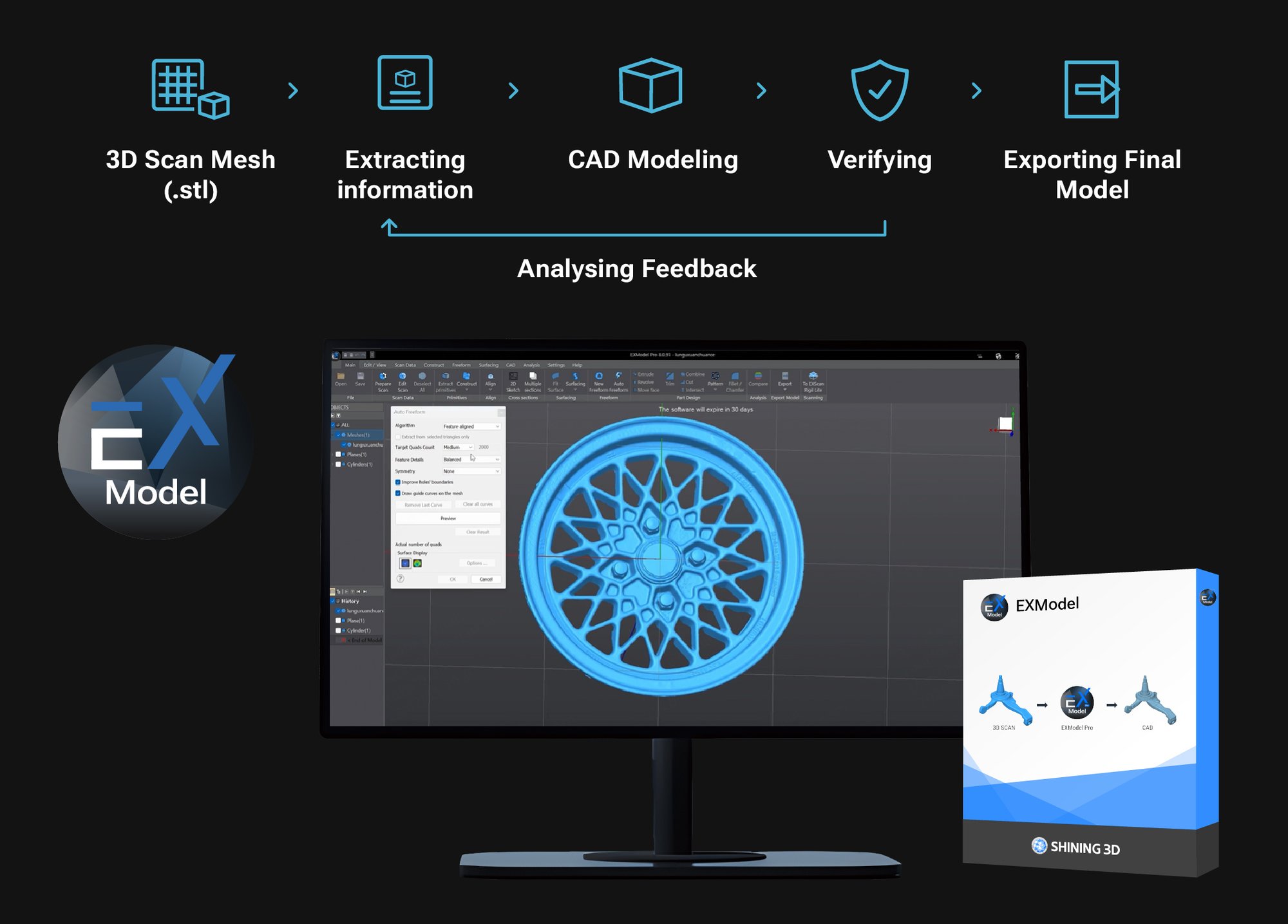

For Streamlined Reverse Engineering
EXModel Series is a powerful gateway that simplifies CAD modeling, from 3D scanning to manufacturing. It provides a comprehensive set of tools that enable you to transform a mesh into a professional-quality CAD solid model in just a few simple steps

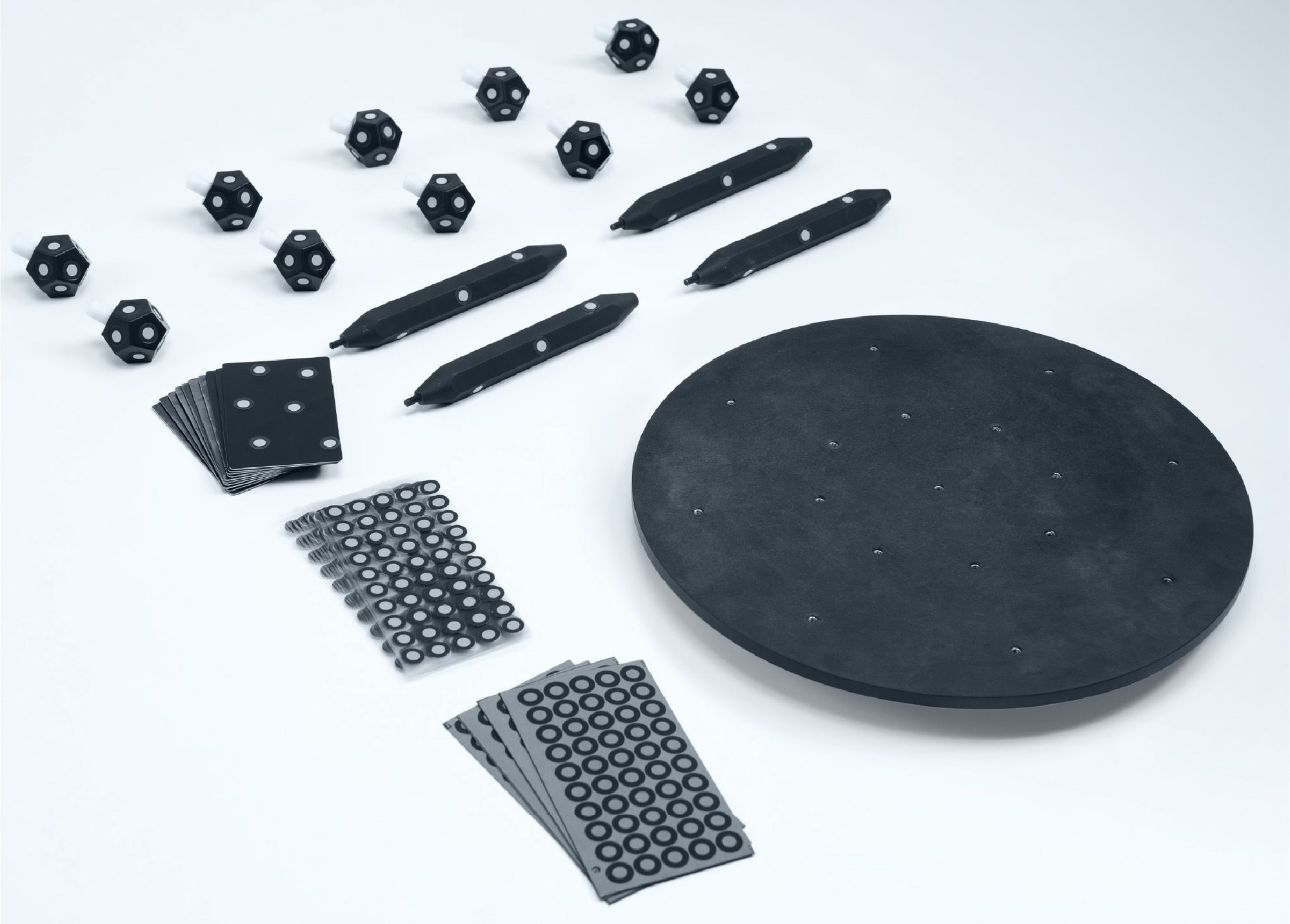

Accessories Pro Kit
A professional marker set designed to improve scan quality and tracking stability in 3D scanning workflows. It includes
-
6 mm magnetic marker balls
-
Adhesive markers
-
Marker cards
-
Fixture columns
-
A 300mm turntable.
What You Can Achieve with Our Scanners
Discover how integrating our scanners into your workflow can enhance efficiency and help you achieve remarkable results.
-
Industry-Specific Customization
Capture large components, custom parts, and complex surfaces with a flexible marker-free workflow. EinScan Trak helps users quickly obtain accurate 3D data for reverse engineering, modification, restoration, and industry-specific customization projects.
-
Product & Industrial Design
Digitize prototypes, mechanical parts, fixtures, and industrial components with high efficiency and fine detail. With multiple laser modes and flexible scanning setups, EinScan Trak supports product development, design iteration, and manufacturing workflows from concept to production.
-
Heritage Preservation & Art
Preserve sculptures, reliefs, historical artifacts, and architectural details without placing markers on valuable surfaces. With 5MP texture capture, EinScan Trak records both geometry and color details for restoration, archiving, research, and digital exhibition.
-
AR, VR & Digital Content
Create accurate, true-color 3D assets from real-world objects for immersive digital experiences. EinScan Trak helps transform artworks, props, cultural objects, and physical models into high-quality digital content for AR, VR, games, and visualization.
-
Education & Scientific Research
Provide students, researchers, and laboratories with an intuitive tool for 3D data capture, measurement, and analysis. Wireless operation and flexible scanning modes make it easier to explore complex objects, document findings, and support hands-on learning.
3D Model Gallery
MG car by SHINING 3D on Sketchfab
EXScan Trak Software
EXScan Trak is a scanning software for EinScan Trak Series, designed to support complex 3D data acquisition with a flexible and efficient workflow.
Smart Merge of Different Modes and Resolutions
Real-Time Laser and Resolution Switching
Rapid & Diverse Data Editing Tools
Real-Time Feedback Scan Interface
Technical Data
- Volumetric accuracy Up to 0.1 mm
- High-speed scan Included (19 + 19 crossed laser lines)
- Detailed scan Included (7 parallel laser lines)
- Deep pockets scan Included (single line)
- Resolution 0.05 ~ 10 mm
- Scan Speed 2,630,000 points/s
-
Max. FOV
Tracking mode: 4796 x 4174 mm @4000mm
Handheld scanner mode: 547 x 463 mm @500mm -
Net weight
Tracker: 1.02 kg
Spherical scanner: 1.46 kg
Handheld scanner: 0.48 kg - Certifications CE, FCC, ROHS, WEEE, FDA, SRRC, IP50
*For full specs please refer to the brochure.
Our Expertise, Your Advantage
20
years experience
300
authorized patents
200
3D scanners sold worldwide
Discover More of EinScan Trak in Action
Unbox EinScan Trak and get familiar with everything included. This complete package supports flexible wireless and wired workflows and provides everything needed to set up your tracking system for professional 3D scanning.
Unboxing, what's Inside the Box?
Unbox EinScan Trak and get familiar with everything included. This complete package supports flexible wireless and wired workflows and provides everything needed to set up your tracking system for professional 3D scanning.
Set up your EinScan Trak with this step-by-step guide, covering tripod installation, tracker and scanner assembly, battery setup, router connection, and device activation. Learn how to switch between wireless and wired modes for both Tracking Mode and Handheld Scanner Mode.
How to Set up Your EinScan Trak
Set up your EinScan Trak with this step-by-step guide, covering tripod installation, tracker and scanner assembly, battery setup, router connection, and device activation. Learn how to switch between wireless and wired modes for both Tracking Mode and Handheld Scanner Mode.
To maintain stable scanning quality with your EinScan Trak, follow this calibration tutorial every two weeks. Complete Tracker Calibration, System Calibration, and White Balance Calibration as instructed to keep your tracking system performing reliably.
Complete Calibration Guide
To maintain stable scanning quality with your EinScan Trak, follow this calibration tutorial every two weeks. Complete Tracker Calibration, System Calibration, and White Balance Calibration as instructed to keep your tracking system performing reliably.
Learn how to use EinScan Trak in Handheld Scanner Mode for small-to-medium objects and tight spaces. Handheld Scanner Mode gives you a flexible handheld workflow for capturing areas that are difficult to reach in Tracking Mode.
Handheld Scanner Mode Walkthrough
Learn how to use EinScan Trak in Handheld Scanner Mode for small-to-medium objects and tight spaces. Handheld Scanner Mode gives you a flexible handheld workflow for capturing areas that are difficult to reach in Tracking Mode.
Learn how to use EinScan Trak in Single-Station Tracking Mode for marker-free scanning of medium to large objects. This guide covers scan setup, point distance, tracking range, laser distance indicators, exposure adjustment, and laser mode switching for detailed or narrow areas.
Tracking Mode-Single Station Scanning
Learn how to use EinScan Trak in Single-Station Tracking Mode for marker-free scanning of medium to large objects. This guide covers scan setup, point distance, tracking range, laser distance indicators, exposure adjustment, and laser mode switching for detailed or narrow areas.
Learn how to use Hybrid Leapfrog Mode on EinScan Trak for efficient large-scene scanning. This tracking system workflow lets you scan from multiple stations and directions with automatic alignment, without manually merging projects.
Step-by-Step Hybrid Leapfrog Mode Guide
Learn how to use Hybrid Leapfrog Mode on EinScan Trak for efficient large-scene scanning. This tracking system workflow lets you scan from multiple stations and directions with automatic alignment, without manually merging projects.
Learn how to use EinScan Trak in Transit-Station Tracking Mode for large objects that extend beyond a single tracking range, such as cars or boats. With its tracking system workflow, EinScan Trak supports efficient multi-station tracking scanning and complete 3D data capture.
Tracking Mode-Transit Station Scanning
Learn how to use EinScan Trak in Transit-Station Tracking Mode for large objects that extend beyond a single tracking range, such as cars or boats. With its tracking system workflow, EinScan Trak supports efficient multi-station tracking scanning and complete 3D data capture.
Learn how to use EinScan Trak and EXScan Trak software to align multiple projects captured with different work modes and point distances into one complete 3D model.
How to Combine Two Work Modes for Data Acquisition
Learn how to use EinScan Trak and EXScan Trak software to align multiple projects captured with different work modes and point distances into one complete 3D model.
Trusted Worldwide
Let's explore why SHINING 3D is the go-to choice for experts across various industries.
-
Automotive
Black Falcon Integrates 3D Scanning...
-
Automotive
Accelerating Automotive Paint...
-
Engineering Machinery & Other Transportation
High-Accuracy 3D Scanning for...
-
Engineering Machinery & Other Transportation
How High-Precision 3D Scanning Is Used...
-
Automotive
How a Stamping Parts Manufacturer Slash...
-
FreeScan Trak Nova is agile, fast and accurate. It has a wider range of scanning capabilities. We are able to scan complete cars within a matter of minutes. The other fantastic feature about Nova is it's wireless, so we don't have to have wires or cords for set up times.
Saad Kanno,
Babylon Engineering
-
I believe that meeting SHINING 3D is a great opportunity, because the quality of their products fully meets our high standards of excellence. We need top-notch tools to support us in re-creating cars at the highest level.
BORIS BRACQ,
Bracq Heritage
-
.jpg?width=1060&height=596&name=Patricia%20Fung(1).jpg)
_RGB-1.png?width=230&height=55&name=SHINING%203D%20LOGO%20(EN)_RGB-1.png)
FreeScan Trak Nova from SHINING 3D is a new wireless 3D measurement system built for high precision and large scale scanning. With the FreeScan Trak Nova, you can capture more data in less time. Use it on its own for targeted applications, or combine it with other devices for a complete scanning workflow that delivers unmatched speed, precision, and efficiency.
Patricia Fung,
3D Wonders
Frequently Asked Questions
-
What makes EinScan Trak unique?
It addresses common limitations of handheld scanners, including restricted scanning range, the need for markers, and reliance on surface features for continuous alignment.
Within the tracking volume, users can scan smoothly without markers or surface features. The system also retains the compact size and flexibility of a handheld scanner with an unique standalone scanner mode.
-
What object sizes can EinScan Trak scan?
EinScan Trak provides a tracking volume of up to 15 m³, easily covering vehicle-sized objects.
For larger objects, such as boats or large sculptures, users can reposition the tracker and extend the scanning area through a tran-station workflow.
For small objects, the seven parallel laser lines provide a point distance of up to 0.05 mm and can clearly capture objects approximately 5cm in size.
-
How does wireless operation work, and how long does the battery last?
EinScan Trak supports fully wireless operation.
A dedicated router connects the tracker and scanner to the computer, providing a cable-free scanning experience. Both devices are battery-powered and do not require an external power connection during operation.
The system provides up to 5.5 hours of battery life and supports hot-swapping individual batteries.
-
Which 3D file formats does EinScan Trak support?
EinScan Trak supports the following file formats:
STL/OBJ/PLY/3MF/ASC
-
Can the scanner be used independently?
Yes. The handheld scanner can be detached from the spherical frame and used independently without recalibration.
Unlike systems that require a large and heavy target frame during standalone scanning, EinScan Trak works as a compact wireless handheld scanner. It can access narrow areas that the tracking system cannot reach and is also more convenient for scanning small objects.
-
Do I still need markers when scanning?
Markers are not required in most situations. Both Tracking Mode and Scanner Mode support marker-free laser scanning.
Markers may improve the scanning experience in two situations:
For large objects that require multiple scanning passes, Global Marker or Hybrid Leapfrog can help maintain higher alignment accuracy.
In Scanner Mode, small objects or objects with few geometric features may not be suitable for marker-free alignment. Markers can be placed around the object to support stable tracking.
-

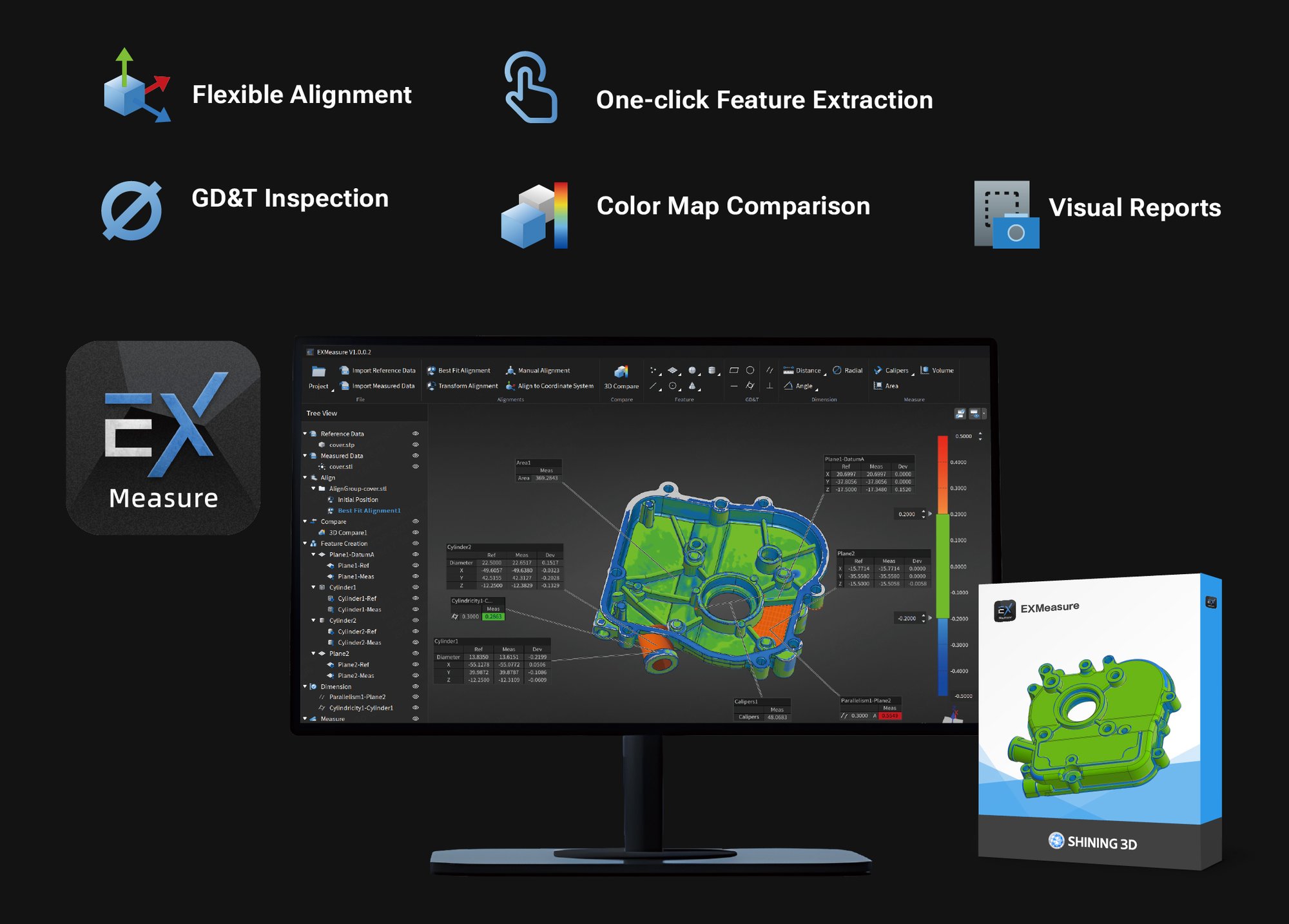

What is EXMeasure, and how can I get it?
EXMeasure is professional measurement software designed for users who need advanced functions such as dimensional measurement, coordinate-system alignment, and geometric dimensioning and tolerancing analysis.
It also supports the export of visual inspection reports.
A one-year EXMeasure license, valued at US$699, is included with every EinScan Trak purchase at no additional cost.
