Why Choose SHINING3D Inspect
This PTB-certified module provides advanced 3D inspection and evaluation capabilities, enabling the generation of comprehensive inspection reports.
Streamlined Workflow with
Integrated Hardware and Software
Visualized Inspection Results with
Customizable Reports
Industry-Specific Module Inspection
Advanced Dimension Functions
.png?width=2000&name=inspect(1).png)

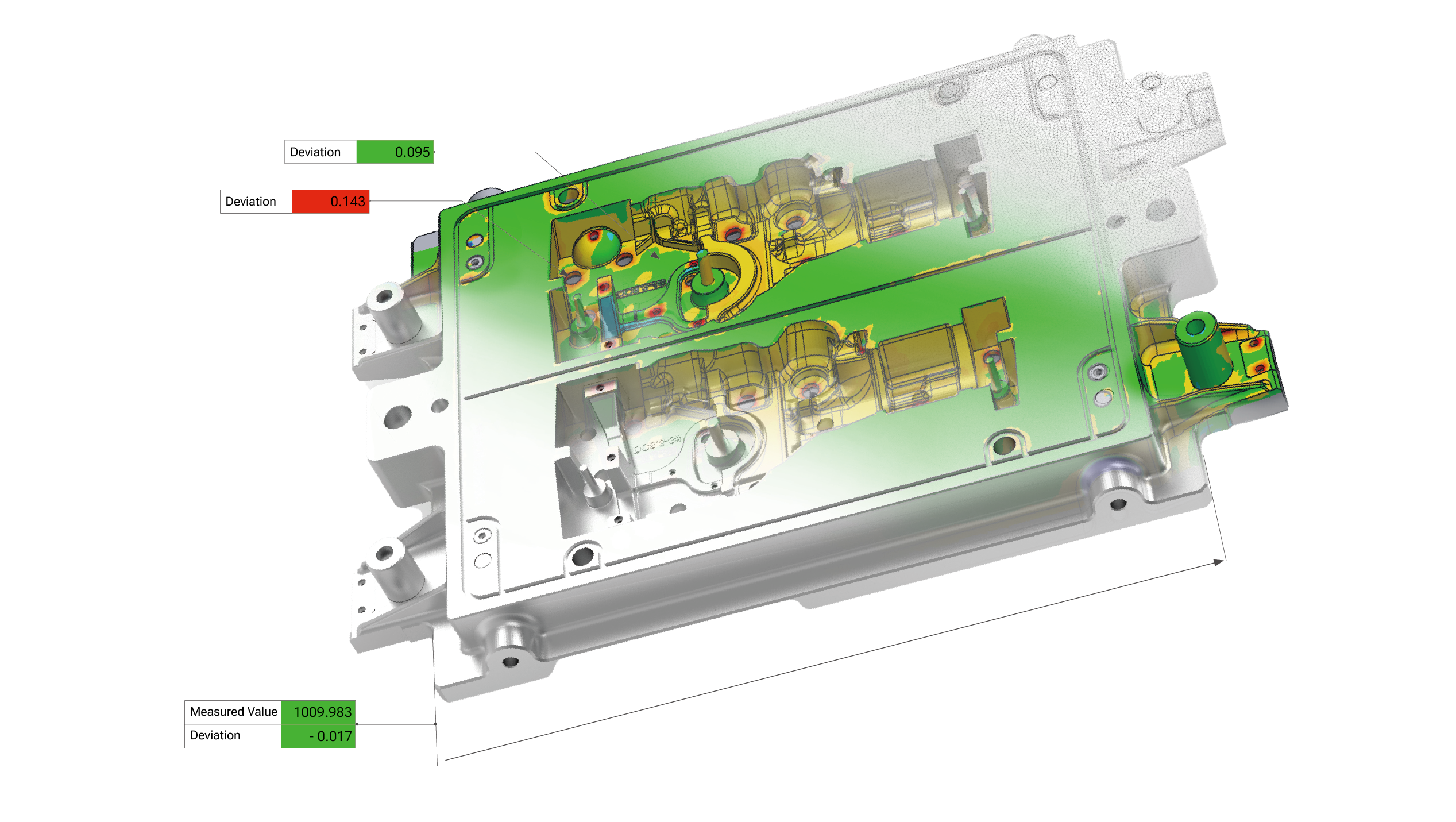

GD&T Inspection
Equipped with powerful GD&T tools, this feature enables precise measurement of feature diameter, position, orientation, distances and angles between features. An intuitive 3D display provides clear visual feedback for comprehensive analysis.

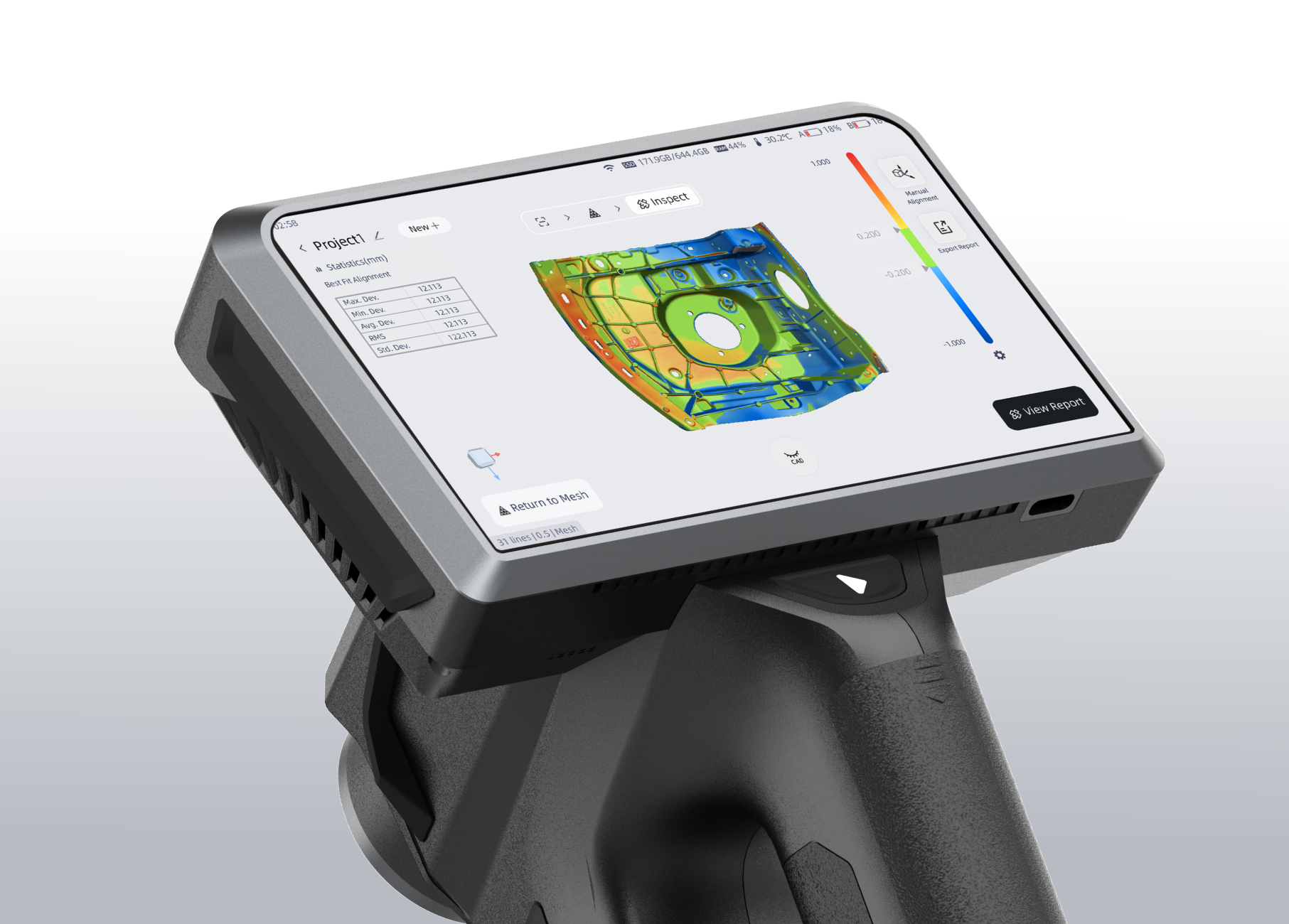

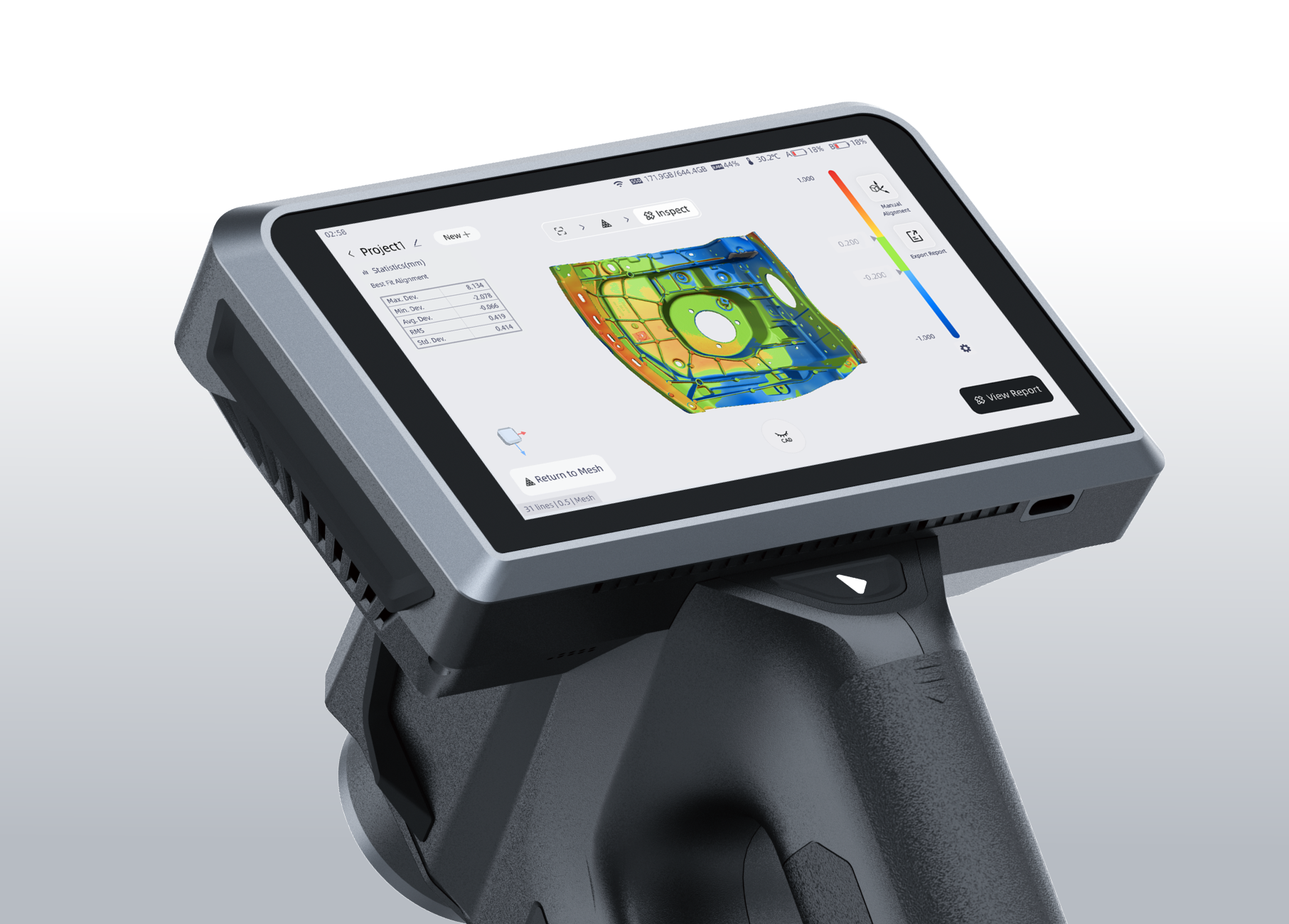

On-Scanner Inspection
SHINING3D Inspect delivers a seamless, non-contact measurement experience on FreeScan Omni, enabling users to run inspection templates with just one click. Designed with an intuitive interface and clear visual results, it simplifies complex workflows and ensures efficient, accurate inspections — perfect for diverse scenarios and industries.
3D Mesh Inspection
Import scanned data and employ multiple alignment methods for comprehensive 3D / 2D comparisons and other inspection functionalities. This feature supports full field inspection, allowing for thorough analysis of your mesh data.

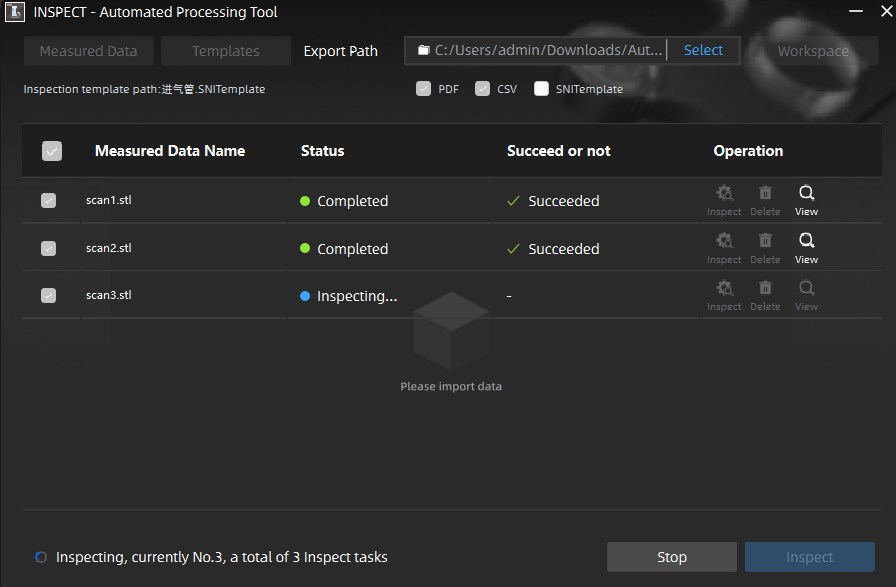

Auto Inspect
Auto Inspect provides an integrated scan-to-inspection solution, significantly enhancing efficiency. It supports batch processing of inspections, making it ideal for high-volume tasks and ensuring consistent, automated quality control.
More Key Features
Multi Alignment Toolset
2D & 3D Comparison
2D Dimensions Inspection
Measurement Toolset
Multi-format Data Import and Management
Intelligent Feature Recognition
Cross-Section Analysis Toolset
