AutoScan Inspec2

Automatic Desktop 3D Scanner

  • One-Click Scan
  • 0.01 mm Accuracy
  • Full Color Scanning
  • Compact & Lightweight

Automatic Desktop 3D Scanner

Portability and Ease of Use icon

One-Click Operation

All-In-One Scanning System

Metrology-Grade Accuracy

W网页配图-04

High Resolution

Photorealistic texture icon

Full Color Scanning

Advanced Software icon

Advanced Software

Lightweight and Compact

Compact & Lightweight

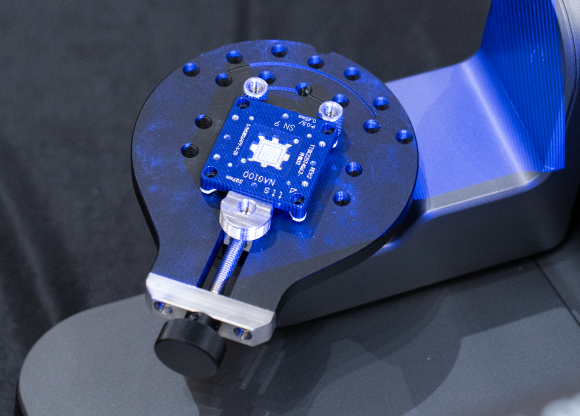

Automatic & Efficient

Automatic & Efficient

Features a 3-axis turntable for hands-free, multi-angle scanning with one-click operation. Automatic calibration and user-friendly design make the scanning process easy, efficient, and highly accurate.



Metrology-Grade Accuracy

Metrology-Grade Accuracy

With a scan accuracy of 0.01 mm, it delivers consistent, reliable results for complex small objects, guaranteeing high-quality 3D data for inspection, reverse engineering, and precision manufacturing.

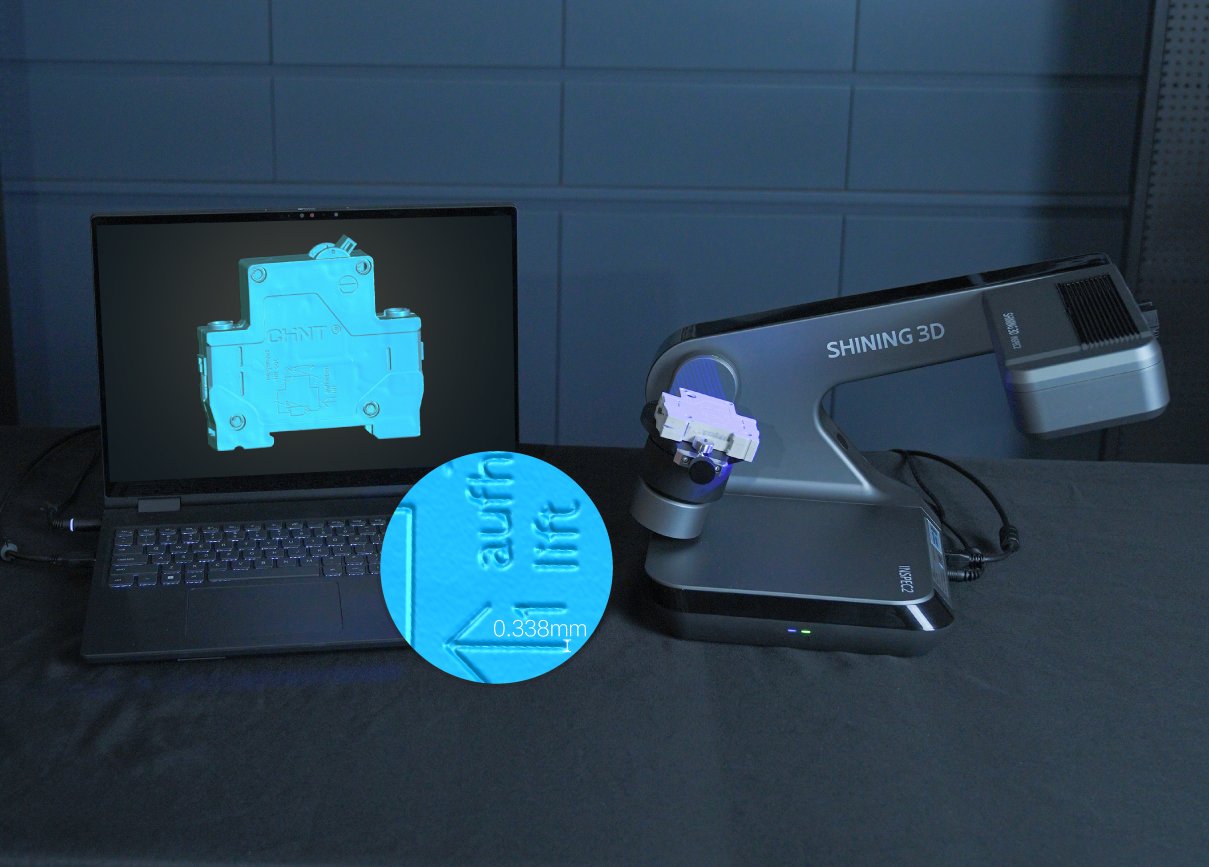

Unparalled Details

Unparalleled Details

Equipped with 2 × 5MP high-resolution cameras, it meticulously captures every detail of components, ensuring sharp, accurate 3D data — even on fine features and intricate geometries.

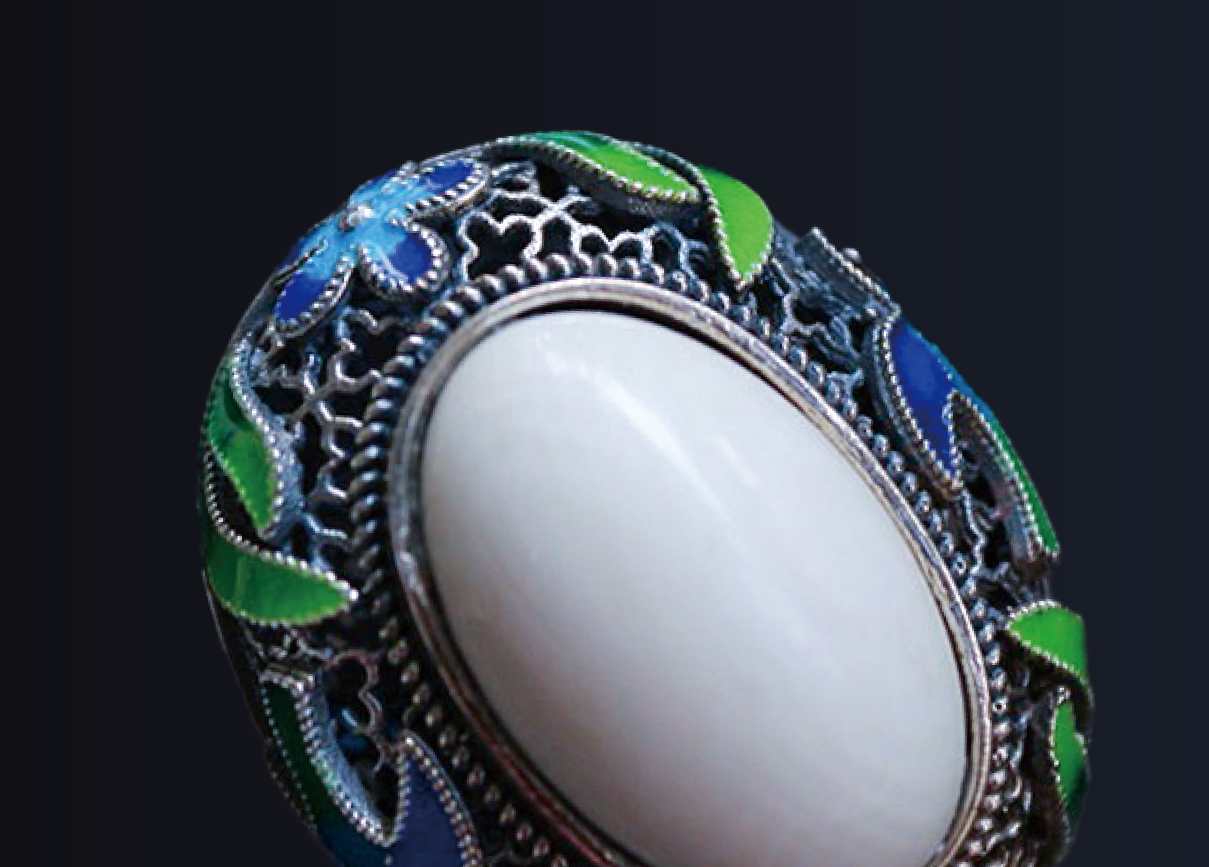

Full color scanning

Full Color Scanning

The texture module can capture true-to-life colors that ensure accurate texture reproduction for enhanced inspection, documentation, and digital modeling for various applications.

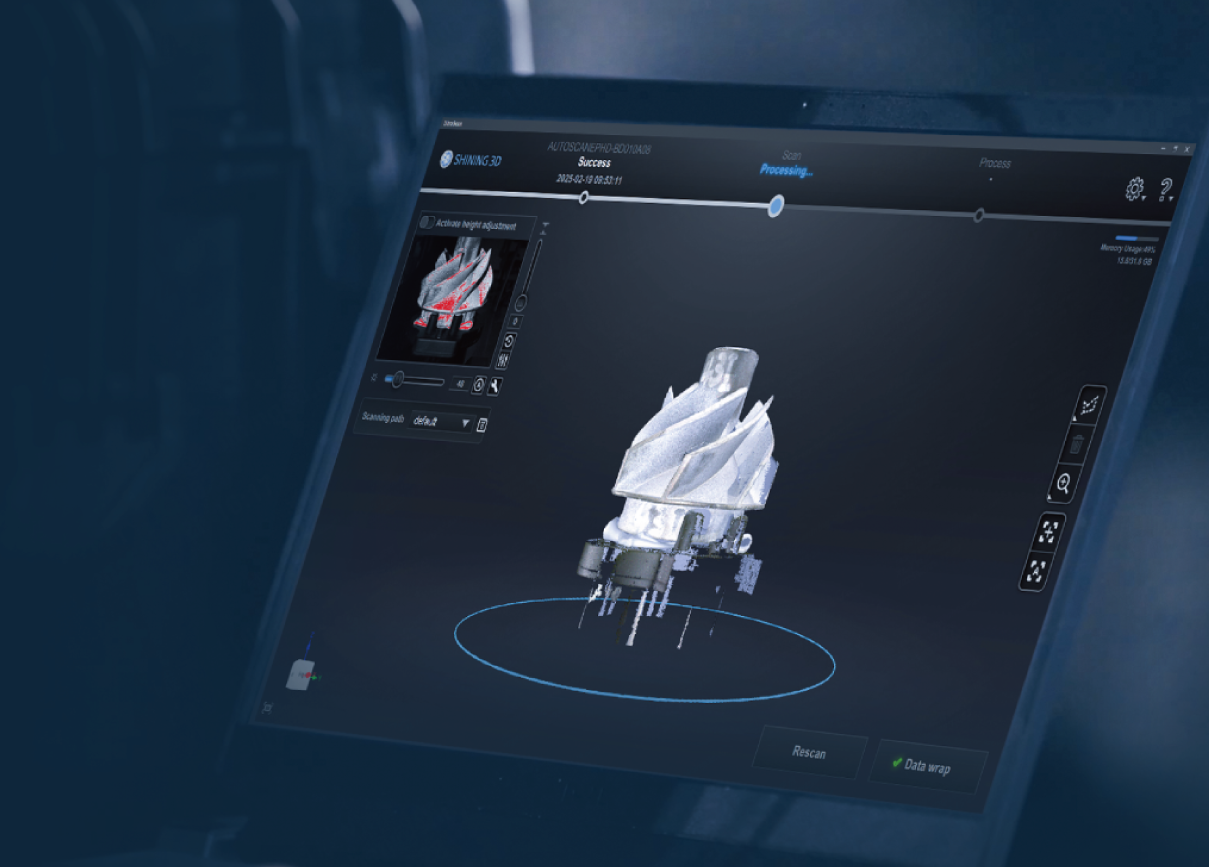

AutoScan Inspec2 Software

Advanced Software

Powered by UltraScan software, it delivers AI AI-intelligent scanning algorithm for effortless operation. With broad compatibility across Geomagic Control X, Design X, PolyWorks, EXModel and others, it streamlines workflows for quality inspection and reverse engineering.

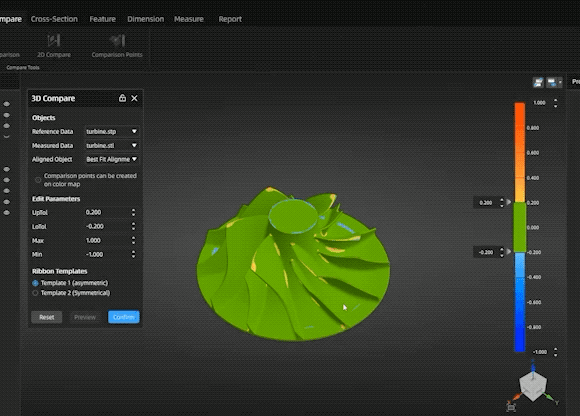

PTB-Certified Inspection

Scan to Inspect

Integrated inspection module, certified by PTB, for reliable, high-quality 3D measurement and output the inspection report.



Compact & Lightweiht

Compact & Lightweight

Weighing only 5 kg, its streamlined, space-saving design makes it easy to integrate into laboratories, workshops, and industrial environments.
custom support for your needs1

Our Support Coverage

At SHINING 3D, we don’t just provide devices – we deliver customized solutions, global support, and a commitment to your success. From intuitive tools to calibrated accuracy, we’re here to empower your work.





UltraScan Software

Advanced Software for Seamless 3D Measurement

Automatic Calibration

Automatic Calibration

Just one click to achieve automatic calibration. The calibration process is simple and convenient, greatly reducing the probability of calibration failure.

Multi-object Mode

Multi-Object Mode

AutoScan Inspec2 offers a multi-object mode that supports up to 8 objects in a single scan, greatly improving scanning efficiency.

AI Feature Recognition

Intelligent Add-Scan

After selecting a specific area, the software will automatically recognize and perform additional scanning to ensure data completeness.

Flip Scan

Flip Scan

Selecting this mode will automatically create a second project to scan the other side of the object. These projects' data can be automatically or manually merged, making it very easy to capture the complete data of the object.

Technical Data

  • Accuracy 0.01 mm
  • Field of view 140 × 90 × 80 mm
  • Align mode Feature, Markers
  • Point distance 0.05 mm
  • Rotation axis 3 Axis
  • Camera resolution 2 × 5MP
  • Light source LED blue light
  • Color scan Supported
  • Output format STL, OBJ, PLY
  • Certification CE, FCC, ROHS, WEEE, KC

Our Expertise, Your Advantage

20

years of experience

400

patents

200

3D scanners sold Worldwide



Frequently Asked Questions

  • Can AutoScan Inspec2 capture color data?

    Yes. With its advanced algorithm, AutoScan Inspec2 supports the texture capturing and rebuild the color data of the scanned objects.

  • What is the recommended object size that can be scanned?

    The FOV of AutoScan Inspec2 is 140 × 90 × 80 mm, so within this scope, the object data can be captured effortlessly.

  • How many objects can be scanned in one go?

    There is a Multi-object mode in AntoScan Inspec2 which enables 8 objects scanning at the same time.

  • Is it possible to scan without placing markers on the object?

    Yes. If the object has rich geometric features, feature alignment is recommended.
