FreeScan Trak Nova
Wireless Multi-Functional Dynamic Tracking & Scanning System
- Flexible & Separable System
- Compact & Agile Dynamic Tracking
- Wireless & Lightweight Design
- Integrated Video Photogrammetry (VPG)
- Verified Accuracy (VDI/VDE 2634 & ISO 10360)
Small in Form, Big on Performance.
From construction machinery to rail transit, civil aviation to energy, FreeScan Trak Nova is built to meet the diverse needs of industries requiring accurate and efficient large-scale measurements with extreme portability, productivity and versatility.
All-In-One Scanning System
Detachable Handheld Scanner
Dynamic Tracking
Integrated Video Photogrammetry
Completely Wireless
Effortlessly Portable

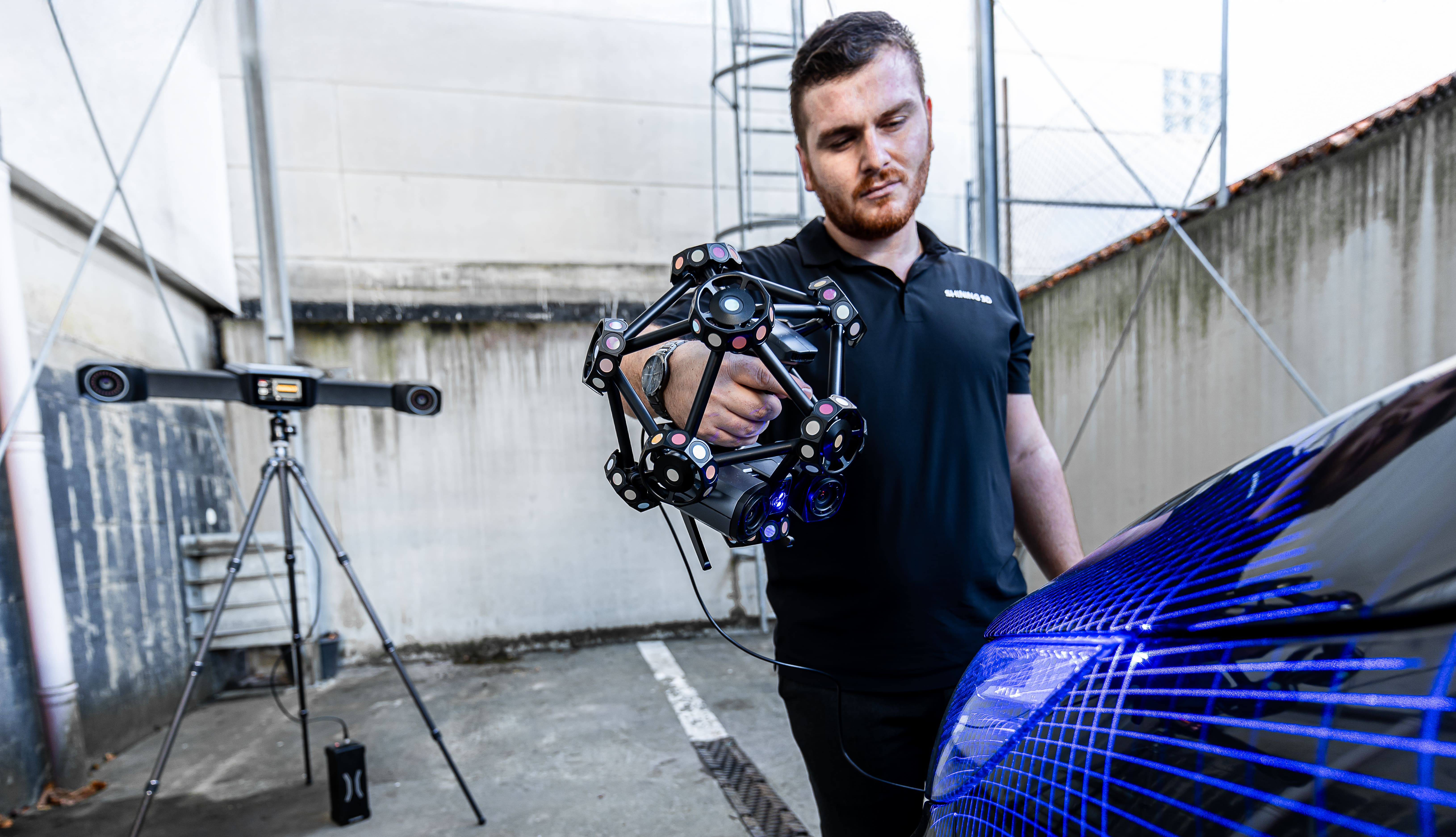

Dynamic Tracking Scan: Compact and Agile
The real-time tracking technology allows for the capture of fine details. With its wireless and compact design, the system excels in scanning confined spaces, ensuring efficient and precise measurements.
Flexible & Separable System
FreeScan Trak Nova includes a detachable handheld scanner. The tracker, FreeScan UE Nova, also serves as a handheld laser scanner with the largest FOV on the market, delivering unparalleled efficiency and flexibility.
- Large-scale scanning coverage with 2.6 × 2.2 m FOV
- Ultra fast scan speed
- Verified in our ISO 17025 accredited Accuracy Lab according to VDI/VDE 2634 Part 3 and ISO 10360 standards.
-1.jpg?width=2000&name=Video%20Photogrammetry%20(VPG)-1.jpg)

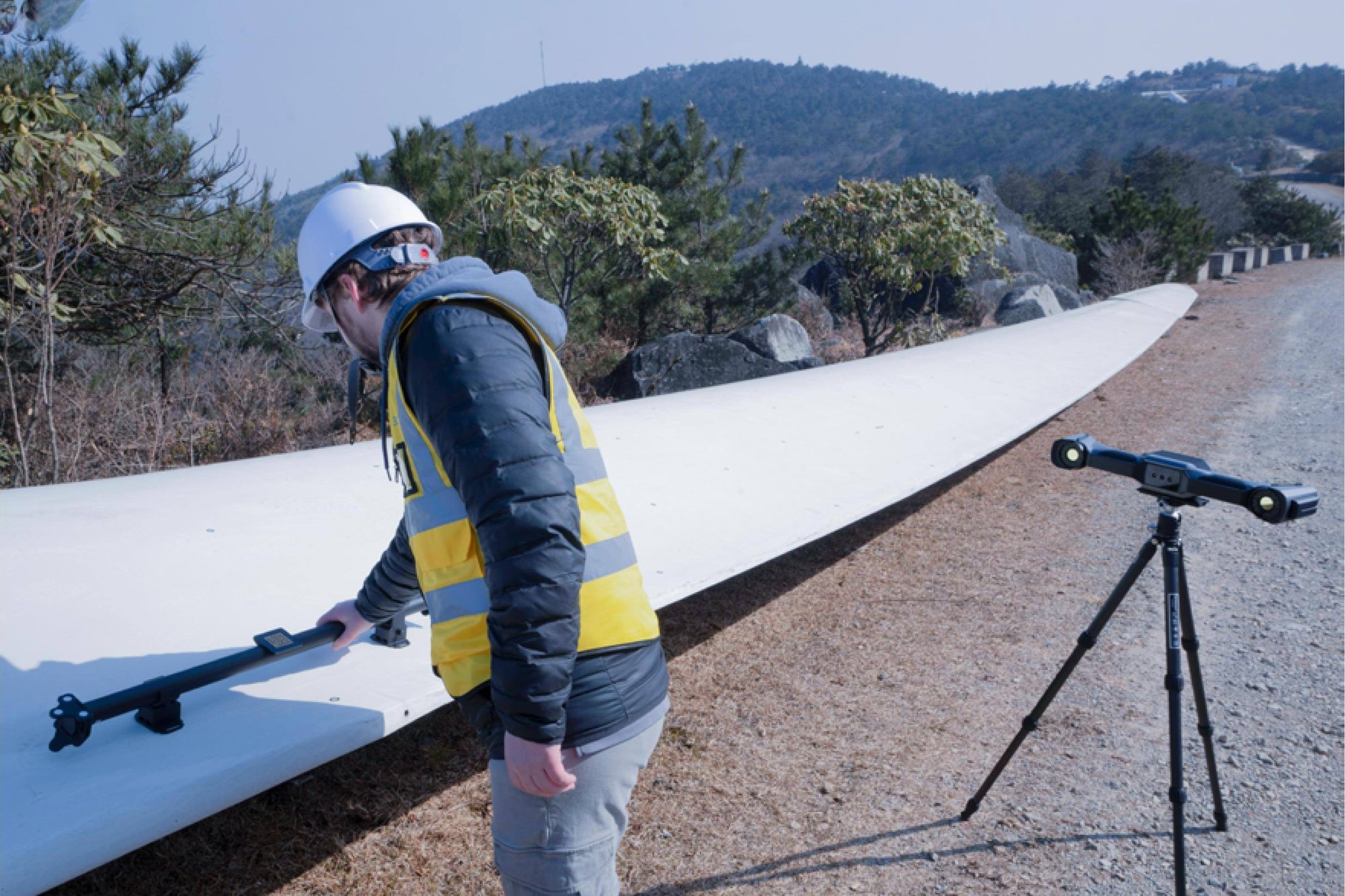

Video Photogrammetry (VPG)
FreeScan Trak Nova system features SHINING 3D’s patented video photogrammetry (VPG), which eliminates the need for coded markers. By integrating photogrammetry technology with a calibration rod, it enables real-time marker verification through video capture. This ensures consistent volumetric accuracy and streamlines the setup process for efficient large-object scanning.
Free to Scan, Built to Perform
Integrated wireless modules: Achieve greater freedom when scanning large objects or in tight spaces, without the limitations of cables or external devices. This seamless integration allows for real-time transmission of scan data, ensuring high frame rates and stable data transfer.
Built-in computing modules: With advanced computing modules, both the tracking scanner and wide-range scanner ensure rapid and efficient processing.
Easy to Carry, Light to Move
Everything you need is neatly packed in one portable case, with a lightweight carbon fiber structure that ensures stability and reliable performance in any environment.
- TE Nova: 1.2 kg
- UE Nova: 1.6 kg

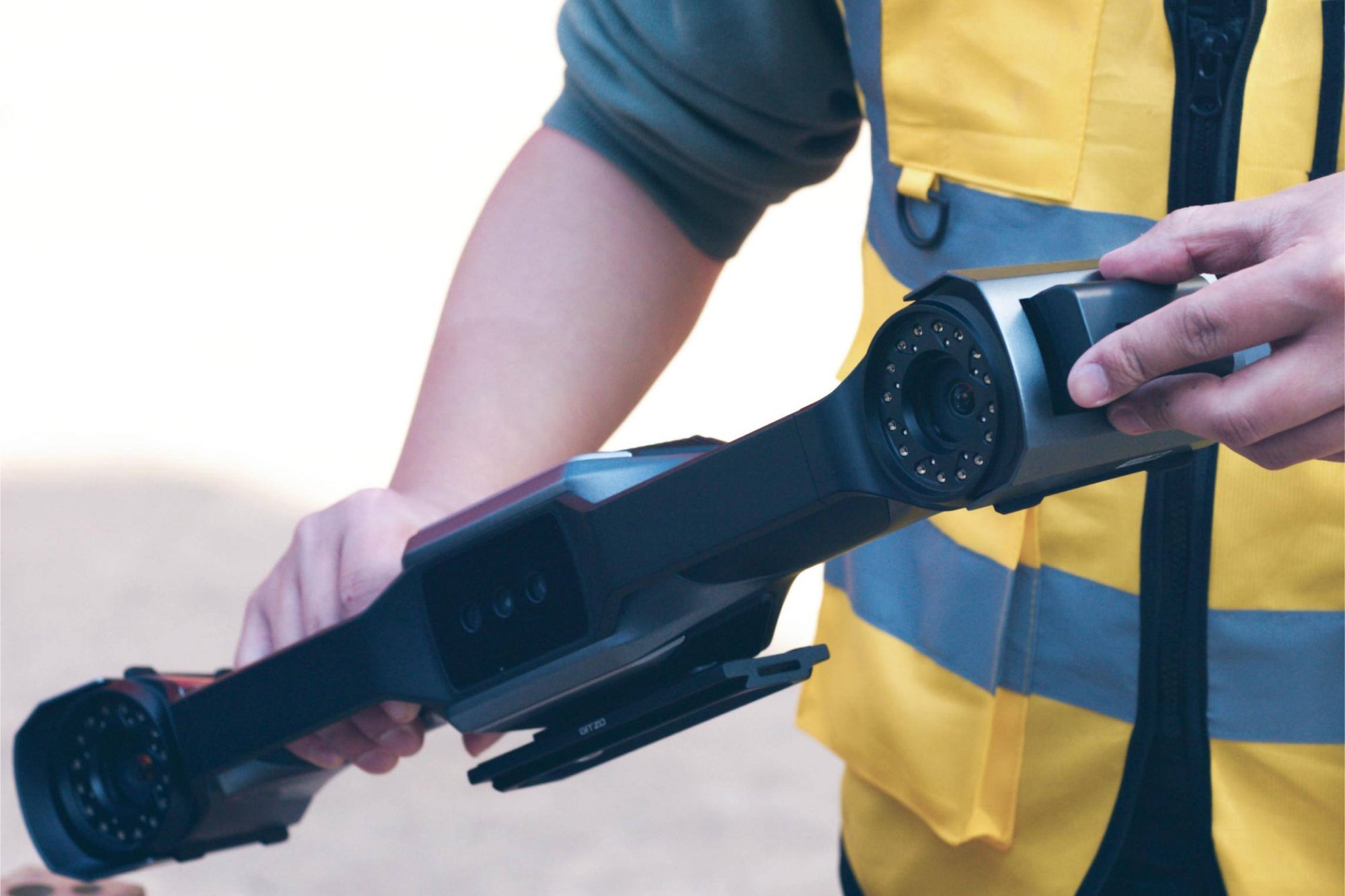

Keep Going with Swappable Batteries
For maximum convenience, FreeScan Trak Nova features detachable batteries for extended scanning time. Easily swap out batteries to keep your workflow uninterrupted, even during long projects or in remote locations.
Certified Metrology Accuracy
FreeProbe 2
Designed for fast, shop-floor measurements and inspections, FreeProbe 2 captures precise geometric data without generating mesh. It is ideal for hidden areas that scanners cannot reach, ensuring data acquisition with pinpoint accuracy.
Metrology Pro Kit
Ideal for 3D dynamic tracking and scanning systems, Metrology Pro Kit supports stable and precise tracking with different leapfrog marker options for scanning large and complex objects.
Our Support Coverage
INSPECT ON THE MOVE
-%E5%8F%8D%E7%99%BD2.png?width=200&height=52&name=SHINING%203D%20METROLOGY%20(RGB)-%E5%8F%8D%E7%99%BD2.png)
SHINING 3D Metrology brings precision measurement from isolated labs directly to the shop floor and beyond, enabling real-time quality assurance across every stage of production.
What You Can Achieve with Our Scanners
Discover how integrating our scanners into your workflow can enhance efficiency and help you achieve remarkable results.
-
Engineering Machinery & Other Transportation
FreeScan UE Nova excels in this field with its large FOV of up to 2.6 x 2.2 m and 50 blue laser lines, enabling efficient scanning of large machinery like excavators and bulldozers. When paired with TE Nova, it forms a dynamic tracking system that ensures high accuracy even in unstable environments, making it an ideal tool for comprehensive engineering tasks such as simulation analysis, wear detection and repair.
-
Energy & Heavy Industry & Public Utilities
The dynamic tracking system offers versatile working modes (Near, Standard, Far) to accommodate various distances and conditions. Moreover, its markerless scanning allows precise data capture within a 3.5-meter tracking range. The wireless and portable design allows flexible scanning in hard-to-reach areas without cable constraints. All of features make it very suitable for large facilities scanning like power plants and wind farms.
-
Automotive
In the automotive sector, the versatile Trak Nova can accurately scan both flat surfaces and complex details. The combination of agility, lightweight design, and ensured accuracy in 3D scanning makes it ideal for capturing a wide range of vehicle parts—from hoods, door panels, and spoilers to the intricate interiors that are often challenging to navigate.
-
Cultural Creation & Art Customization
FreeScan Trak Nova captures intricate details with high accuracy, making it perfect for scanning delicate artifacts. The scanner’s compact and lightweight design ensures ease of use for extended periods, making it ideal for artists and conservators working on detailed and demanding projects.
- Product line features
FreeScan Trak Software
Advanced Software for Seamless 3D Measurement
Multi-Scan Modes Data Fusion
The system seamlessly combines wide-range laser scanning for overall structure capture with dynamic tracking for detailed local features, integrating broad coverage and fine details into a unified dataset.
Intelligent Resolution
Automatically adjusts mesh resolution based on the object's curvature, ensuring clearer and more detailed features.
AI Feature Recognition
Intelligent boundary detection provides fast, precise measurement of round holes, rectangular holes, and slots, ensuring high-quality and high-accuracy data capture.
Inspection Module
Integrated inspection module, certified by PTB, for reliable, high-quality full-size inspection.
Technical Data
- High-speed scan Included (50 laser lines)
- Detailed scan Included (7 parallel laser lines)
- Deep pockets scan Included (1 laser line)
- VPG Included (no coded markers required)
- Accuracy 0.02 mm
- Volumetric accuracy 0.062 mm (12 m³)
- Volumetric extension accuracy with VPG 0.046 + 0.012 mm/m
- Scan Speed 6,140,000 points/s
- Resolution 0.01 ~ 10 mm
- Flexible FOV Up to 2600 x 2200 mm
- Connection Wireless & Wired mode (Fiber optic)
- Depth of field TE Nova 380 mm (170 ~ 550 mm); UE Nova 2700 mm (800 ~ 3500 mm)
- Net weight TE Nova 1.2 kg; UE Nova 1.6 kg
- Certifications CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX
- Acceptance test VDI/VDE 2634 Part 3 & ISO 10360 Certified (Tested in the ISO/IEC 17025 Accredited Accuracy Lab)
Our Expertise, Your Advantage
years experience
authorized patents
3D scanners sold worldwide
-
FreeScan Trak Nova is agile, fast and accurate. It has a wider range of scanning capabilities. We are able to scan complete cars within a matter of minutes. The other fantastic feature about Nova is it's wireless, so we don't have to have wires or cords for set up times.
Saad Kanno,
Babylon Engineering
-
I believe that meeting SHINING 3D is a great opportunity, because the quality of their products fully meets our high standards of excellence. We need top-notch tools to support us in re-creating cars at the highest level.
BORIS BRACQ,
Bracq Heritage
Frequently Asked Questions
-
What is the battery life in wireless mode?
In wireless mode, TE Nova can operate for up to 2.5 hours, while UE Nova lasts approximately 1 hour. Both devices use standard swappable batteries, enabling continuous scanning without interruptions.
-
Is a router required for wireless mode? Can the system connect directly to a computer via a wireless connection?
A Wi-Fi router is necessary for operating the system in wireless mode. SHINING 3D includes a router in the package, but if you prefer to use your own, we recommend a Wi-Fi 6 router for optimal performance.
-
Does wireless connectivity affect accuracy?
No. Wireless connectivity handles only data transmission and does not affect the accuracy. -
What is volumetric accuracy?
Volumetric accuracy refers to the measurement precision of a scanner across its entire scanning volume, rather than the accuracy of individual points. It is a critical metric for inspecting large components, as it reflects how errors accumulate with distance.
-
How can accuracy be improved when scanning large parts?
The system utilizes SHINING 3D’s patented video-based photogrammetry technology to enhance overall accuracy. UE Nova supports a maximum photogrammetry working distance of 3.5 meters, enabling efficient capture and generation of global marker files for improved precision.
-
Is the scanner certified or traceable to standards?
Yes. The scanner provides inspection reports and calibration certificates traceable to international standards such as VDI/VDE 2634 and ISO 10360 (subject to the actual certificates issued). All calibration and verification procedures are performed in SHINING 3D’s accredited Accuracy Lab, which operates in accordance with ISO/IEC 17025 requirements.
-
Does FreeScan Trak Nova require markers when scanning?
No. FreeScan Trak Nova uses advanced tracking technology that can scan without markers for most parts, although markers may be recommended for very large surfaces to ensure optimal accuracy. -
How does 3D scanning improve quality control compared to manual measurement and CMMs?
3D scanning captures the full 3D geometry of a part in one measurement. Compared to manual tools, it enables 100% surface inspection, reduces operator errors, and detects shape deformations often missed in key-point checks. Compared to CMMs, it is faster and provides richer data, especially for complex or freeform surfaces.
