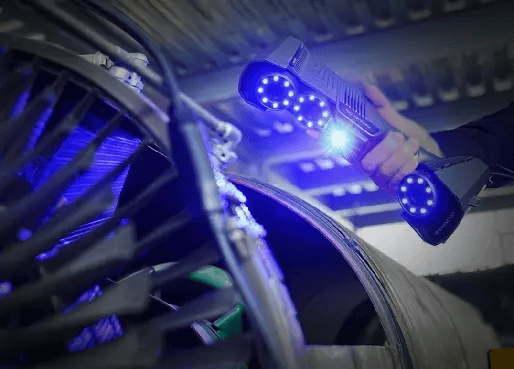

FreeScan Trio

First Marker-Free Handheld Laser 3D Scanner

  • Accuracy up to 0.02 mm with markers
  • Speed up to 3,010,000 points/s
  • Three 5 megapixel cameras
  • 4 scanning modes and built-in photogrammetry

Geared for All your Projects

Featuring a fast and innovative 98-laser-line mode, the FreeScan Trio is SHINING 3D's first marker-free laser 3D scanner. Less preparation, more efficiency.
Speed and Efficiency Redefined

Speed and Efficiency Redefined

The FreeScan Trio redefines speed and efficiency with its 98 laser lines that enable marker-free scanning. It can deliver up to 3,010,000 points per second. Less preparation, more efficiency.

The Power of Three 5MP Cameras

The Power of Three 5MP Cameras

With three industrial cameras, each wielding 5MP, the FreeScan Trio brings out the most elaborate details and high-quality 3D data.

Unrelenting Accuracy and Precision

Unrelenting Accuracy and Precision

Under the scan modes with markers, the FreeScan Trio consistently provides high-precision scanning results with an accuracy of up to 0.02 mm.


All-in-one 3D Scanner

All-in-one 3D Scanner

Versatility is at your fingertips with the FreeScan Trio's four scanning modes and built-in photogrammetry. It's the perfect partner for every scenario.

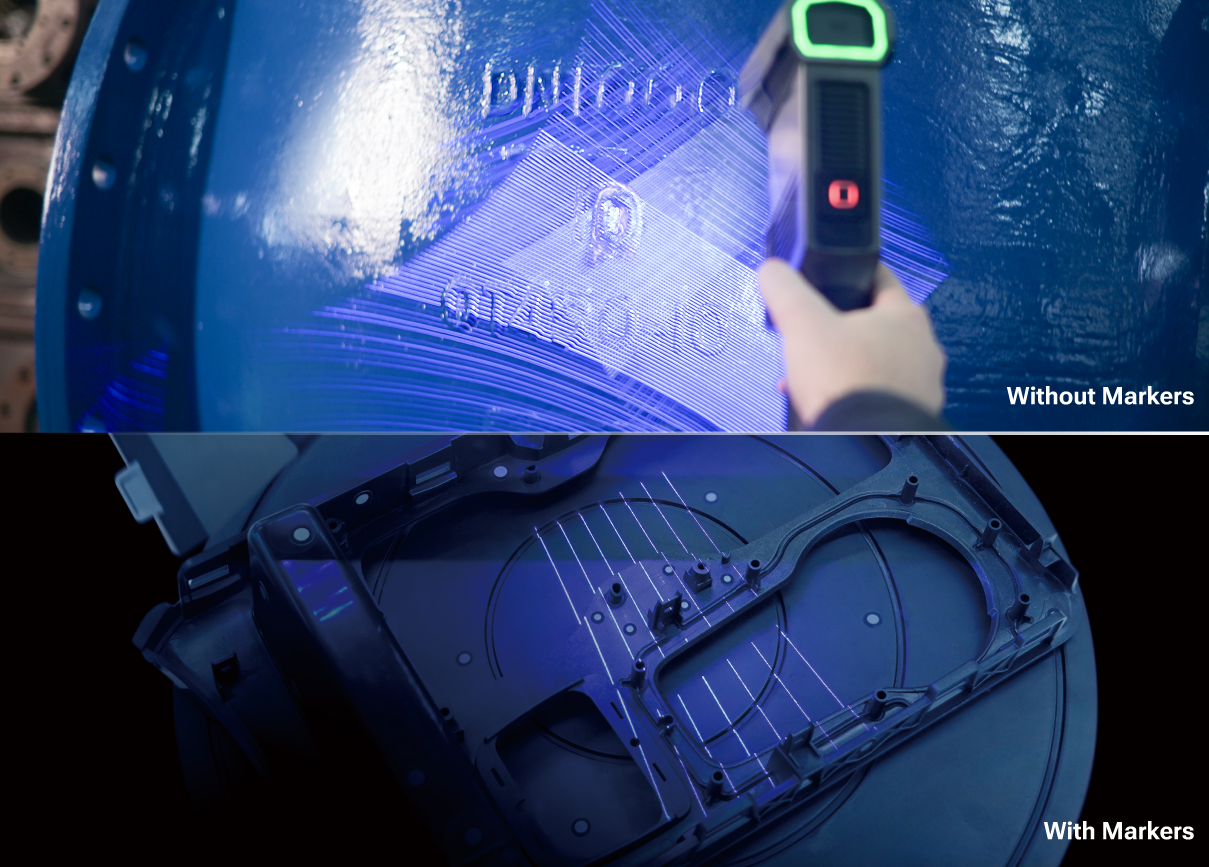

98 Laser Lines, Zero Markers

98 Laser Lines, Zero Markers

The FreeScan Trio's comprehensive 98-laser-line mode eliminates the need for markers, efficiently capturing all your workpieces. Paired with an ultra-fast scan speed of up to 3,010,000 points per second, you'll truly experience the acceleration in your workflow.

Unrelenting Accuracy and Precision

Unrelenting Accuracy and Precision

For quality control, inspection, and reverse engineering, its 0.02 mm accuracy* (with markers) and high-precision performance deliver results you can count on, time and time again.

*Based on VDI/VDE 2634, the sphere-spacing error is assessed with traceable length artifacts and markers by measuring these at different locations and orientations within the working volume, in the accuracy lab certified with ISO/IEC 17025:2017 with environmental conditions: temperature 20 ± 0.5°C; humidity 40 ~ 60% RH.

Swift, Effortless Scanning

Swift, Effortless Scanning

Under the 26 laser lines mode, its 650 x 580 mm FOV gets your projects done fast, capturing more data in fewer sweeps. Our optimized software algorithms generate 3D data in real-time for you to see on your screen, all while guiding you through the scanning process.

Exceptional Detail

Exceptional Detail

FreeScan Trio's three 5-megapixel industrial-grade cameras allow you to zoom into the smallest, most intricate details of your projects, with a minimum point distance of 0.01 mm under its 7 parallel laser mode

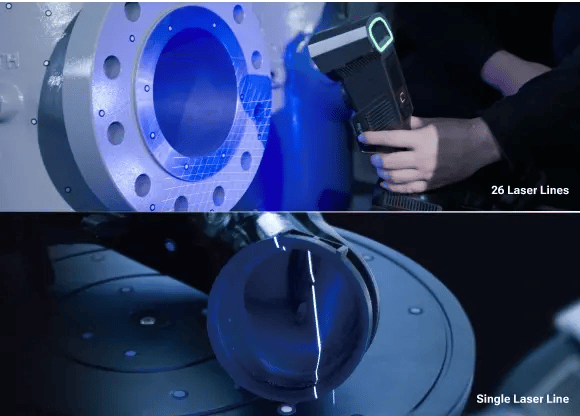

Defy Pockets and Holes

Defy Pockets and Holes

When it comes to industrial parts, deep pockets and holes are almost customary. Cover these blind spots with FreeScan Trio's optimized camera angle and perceptive single-line mode.

Bulit-in Photogrammetry

Bulit-in Photogrammetry

The FreeScan Trio features a built-in photogrammetry mode that can achieve a remarkable volumetric accuracy of up to 0.02 + 0.015 mm/m. Simply place markers and one magnetic scale bar, and the FreeScan Trio will quickly lock in the spatial position of the target frame.



Unlock Efficiency with FreeScan Trio Software

Step-by-step Guidance

Step-by-step Guidance

FreeScan Trio software will guide you through the 3D scanning process, from calibration to 3D scanning and data editing.
Built-in Photogrammetry

Built-in Photogrammetry

FreeScan Trio software can accurately create detailed and photorealistic data of essentially large objects swiftly and efficiently.
Streamlined Workflow

Multiple Scan Modes

98 laser lines for high-speed scanning; 7 laser lines for detailed scanning; 1 single line for deep pocket scanning. Handle all kinds of scan cases.
Material Adaptability

Material Adaptability

FreeScan Trio software enables powerful algorithms to process challenging data of black and reflective objects.

Technical Data

  • High-speed Scanning 26 laser lines
  • Detailed Scan 7 laser lines
  • Deep Pockets 1 single line
  • No Markers Scan 98 laser lines
  • Large Parts Photogrammetry mode, no coded markers required
  • Accuracy Up to 0.02 mm
  • Volumetric Accuracy 0.02 + 0.015 mm/m (with photogrammetry)
  • Scan Speed Up to 3,010,000 points/s
  • Max. FOV 650 x 580 mm
  • Point Distance 0.01 ~ 3 mm
  • Certifications CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TISAX
  • Accuracy Certification VDl/VDE 2634 Part 3 (ISO 17025 certificated lab)

Global Brands Trust Us

20

years of experience

400

patents

100

3D scanners sold Worldwide

  • animal racing

    FreeScan Trio is super impressive! A clear step up in terms of simplifying work and dereasing time management, and especially the scan speed is a very big improvement.

    Daniel Delcev,

    AnimalRacing

  • D3 System

    It's amazing, lightweight and really fast. The whole scan of an old NSU carframe took less than 20 mintues, and the data looks really pretty.

    Thomas Kropp,

    D3 Systeme



Frequently Asked Questions

  • Can FreeScan Trio scan black and reflective surface objects?

    Yes. FreeScan Trio has a laser scan mode, which is less sensitive to ambient light and thus delivers better performance in scanning reflective and dark-colored surfaces.
  • Can FreeScan Trio be used without markers?

    Yes. When the object has rich geometric features, FreeScan Trio's 98-line mode can use feature alignment mode without markers.
  • What format of data can I get with FreeScan Trio?

    FreeScan Trio software can export data in various formats such as ASC, OBJ, STL, and PLY, which can be freely selected according to your needs.
  • Can the FreeScan Trio scan large objects with good accuracy?

    Yes. FreeScan Trio has a built-in photogrammetry function, which can achieve an accuracy of up to 0.02 mm + 0.015 mm/m.
  • What is the recommended computer configuration for FreeScan Trio?

    Recommended Computer Configuration:

    • OS: Windows 10, 64-bit
    • Graphics Card: NVIDIA GTX/RTX series, ≥ GeForce RTX 3060
    • Video Memory: ≥ 6GB
    • Processor: Intel Core i7-10700
    • Memory: ≥ 64GB
    • Ports: USB 3.0
  • What can I do with data scanned by FreeScan Trio?

    You can use the data from FreeScan Trio for reverse engineering, comparing with existing CAD data for inspection, and other applications.
