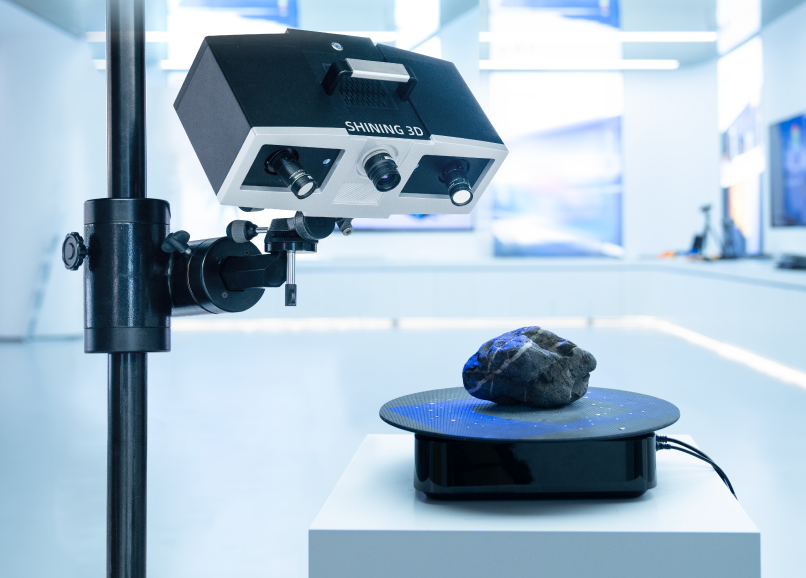

OptimScan 5M Plus

High-Precision 3D Inspection System

  • High accuracy up to 0.005mm
  • High resolution cameras
  • Multiple scan ranges

Key Features

High Accuracy

High Accuracy

Single shot accuracy can reach up to 0.005mm, and it provides the function of environmental vibration detection and effectively ensures high-quality data and precision.

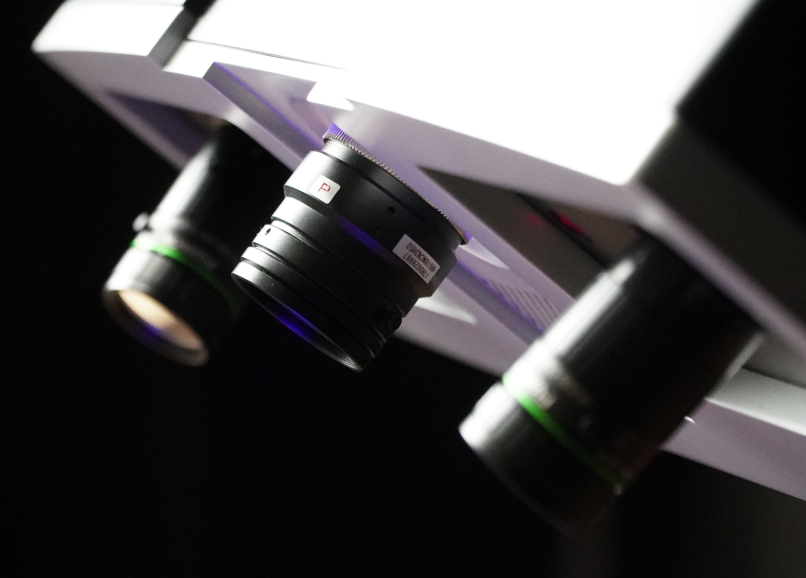

High Resolution

High Resolution

Three sets of 5-megapixel high-resolution cameras and 1080P projection are used to obtain high-precision features.

Multiple Scan Range

Multiple Scan Range

The system achieves different scanning ranges by switching between various lenses, ensuring finer scanning performance.

HDR Function

HDR Function

The HDR function helps scan high-contrast objects, such as black and white surfaces, to obtain complete data.

One-click Integration Module Function

One-click Integration Module Function

The system integrates the "one-click" automatic markers alignment module and the GREC global deviation control module, which effectively reduces alignment errors and get high-quality data with high precision.

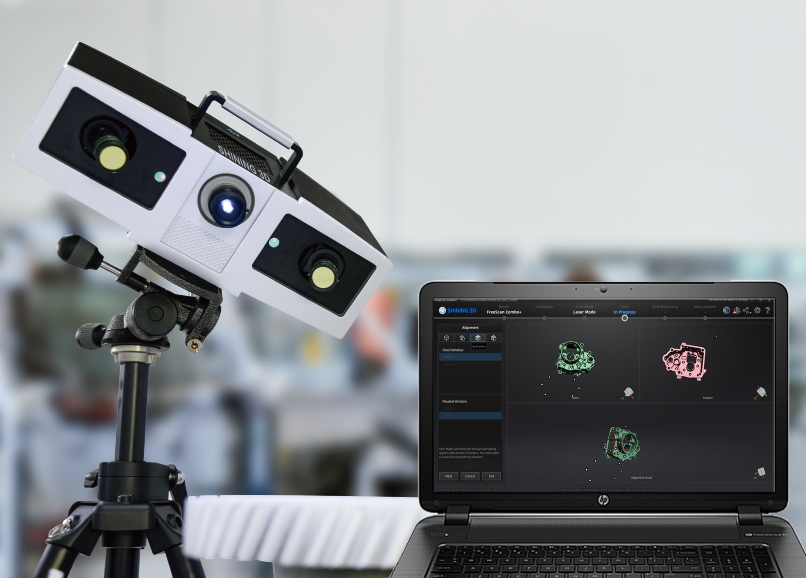

OptimScan Software

No subscriptions, no hidden fees.
Your OptimScan-5M Plus comes with access to our powerful and continuously updated software. Scan as much as you want, all year long, with no hidden fees or extra costs.
Step-by-step guidance

Step-by-step Guidance

OptimScan Software will guide you through the 3D scanning process, from calibration to 3D scanning and data editing.

AI Data Cleanup

AI Data Cleanup

OptimScan software is equipped with intelligent algorithms that can process and optimize scanning data more efficiently, and output more ideal results.

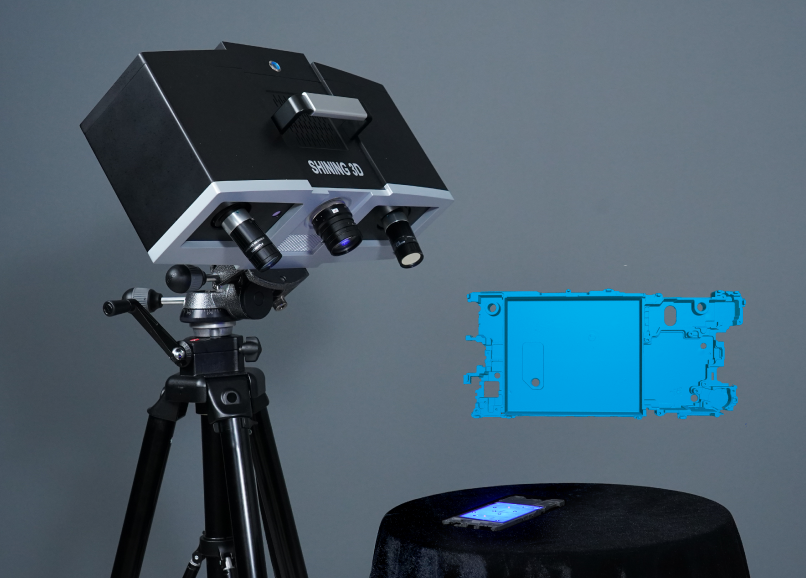

Adjustable Resolution

Adjustable Resolution

Unleash the full potential of the 5M Plus scanner, equipped with three sets of high-resolution industrial lenses. Paired with OptimScan software, 5M Plus allows for scans of varying precision levels, catering to diverse needs.

Multiple Scan Modes

Swift Operation

Improve work efficiency with the rapid scanning speed of OptimScan-5M Plus scanner, which completes a single scan in less than 1.5 seconds, allowing for seamless workflow optimization.

Technical Data

  • Single Scan Range Up to 400 x 300 mm
  • Single Shot Accuracy Up to 0.005 mm
  • Point Distance Up to 0.04 mm
  • Working Distance 560 mm
  • Camera Resolution 5.0 MP x 2
  • Light Source Blue light (LED)
  • Scan Speed ≤1.5 s
  • Scanner Weight 6.8 kg
  • Certifications CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TISAX
  • Accuracy Certification VDl/VDE 2634 Part 3 (ISO 17025 certificated lab)

Global Brands Trust Us

20

years of experience

400

patents

100

3D scanners sold Worldwide

  • testimonial- 5mp

    We chose the OptimScan 5M Plus so that we could capture as much detail as possible so that the reconstruction came closer to how the artist originally envisioned his creation.

    Niels Van Houtum,

    Teacher Fablab Arnhem



Frequently Asked Questions

  • Is it possible to scan objects of different sizes?

    Yes. OptimScan 5M Plus has three different scanning ranges: 400 mm x 300 mm / 200 mm x 150 mm / 100 mm x 75 mm, which can help you scan objects of different sizes.
  • Is it possible to scan without placing markers on object?

    Yes. If the object has rich geometric features, you can use feature alignment. Alternatively, if you have a turntable attached, you can also use the turntable alignment.

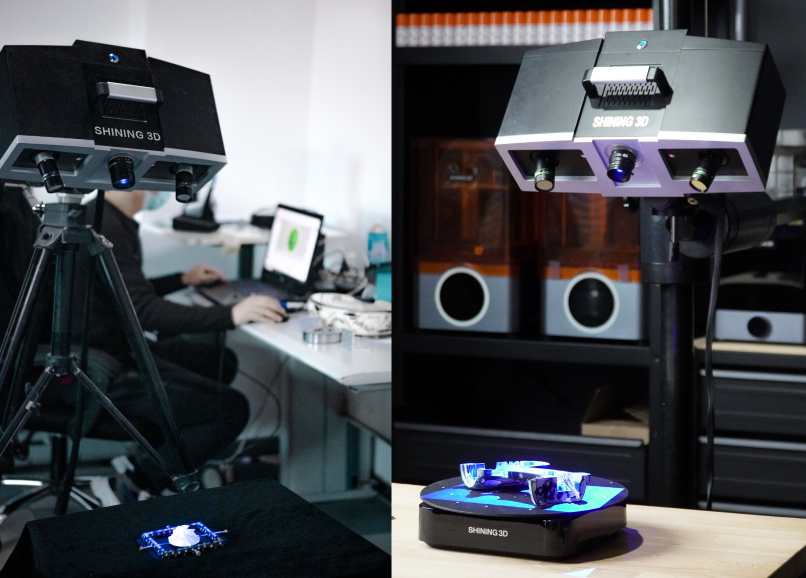

  • Can I have OptimScan 5M Plus scan objects automatically?

    Yes. If the turntable is plugged in, check or uncheck the box “With turntable” to enable or disable it. The turntable settings (turntable step, turntable speed, turntable turns) will then be displayed. After that, click "Scan," and the scanner will automatically scan using the turntable.

  • What's the PC configuration of OptimScan 5M Plus?

    Recommended Computer Configuration:

    • Graphics Card: NVIDIA GTX 1080 or above
    • Video Memory: ≥ 4 GB
    • Processor: Intel i7 8700 or above
    • Memory: ≥ 32 GB
    • Port: USB 3.0
  • What kind of formats can OptimScan 5M Plus output?

    The software output formats include .asc, .stl, .obj, etc., and is compatible with mainstream 3D software.
  • Is it possible to scan color texture of objects?

    No. OptimScan 5M Plus doesn't have a color camera to capture the texture information of object.
