EINSTAR Rockit

Rock-it in your pocket

  • Marker-Free Laser Scanning
  • True Wireless Design
  • Blue Laser + IR VCSEL
  • Rockit Speed of up to 90 fps
Get a quote
Visit EINSTAR Online Store

Visit EINSTAR Online Store

EINSTAR, powered by SHINING 3D with over 20 years of expertise in high-precision 3D digital products, inherits SHINING 3D's gene of innovation and advanced technology to push the boundaries of 3D scanning. Committed to making high-quality products accessible to every 3D explorer, EINSTAR is dedicated to unleashing the possibilities of each shining idea.



Shop Now

Rock-It in Your Pocket

Marker-Free Scanning

Marker-Free Scanning

Built-in Wi-Fi

Built-in Wi-Fi

Hybrid Light Source

Hybrid Light Source

Fast & Stable Tracking

Fast & Stable Tracking

Pocket Size

Pocket Size

5MP Color Camera

5MP Color Camera

Marker-Free Laser Scanning

Marker-Free Laser Scanning

Skip the markers — scan feature-rich objects effortlessly.
Quick to set up, faster to get results.
*Recommended system memory: ≥ 64 GB

Wireless Inside. Freedom Outside.

Wireless Inside. Freedom Outside.

  • Built-in Wi-Fi module, without extra hub or adapter setup
  • True wireless without messy cables
    Stable real-time sync to PC
  • Built-in, swappable battery with up to 3 hours runtime
  • Stay worry-free: cable connection available if Wi-Fi interference occurs

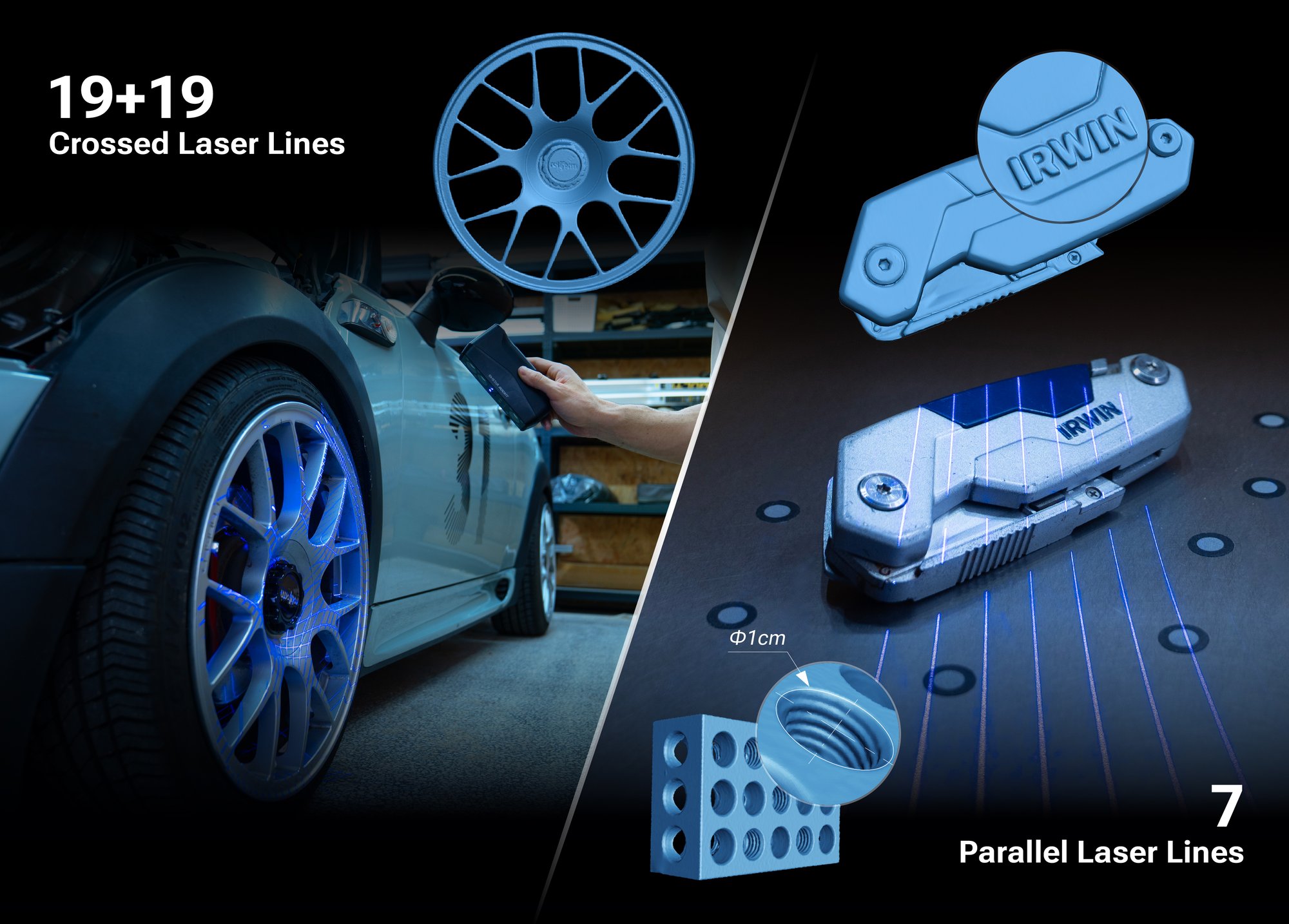

Blue Laser

Blue Laser

38 laser lines (19 + 19 crossed laser lines) for fast, large-area capture
7 parallel laser lines for fine features

  • Great material adaptability — works well on black and reflective surfaces without spray
  • Ideal for industrial parts like automotive components
  • Optimized capability for deep-hole scanning

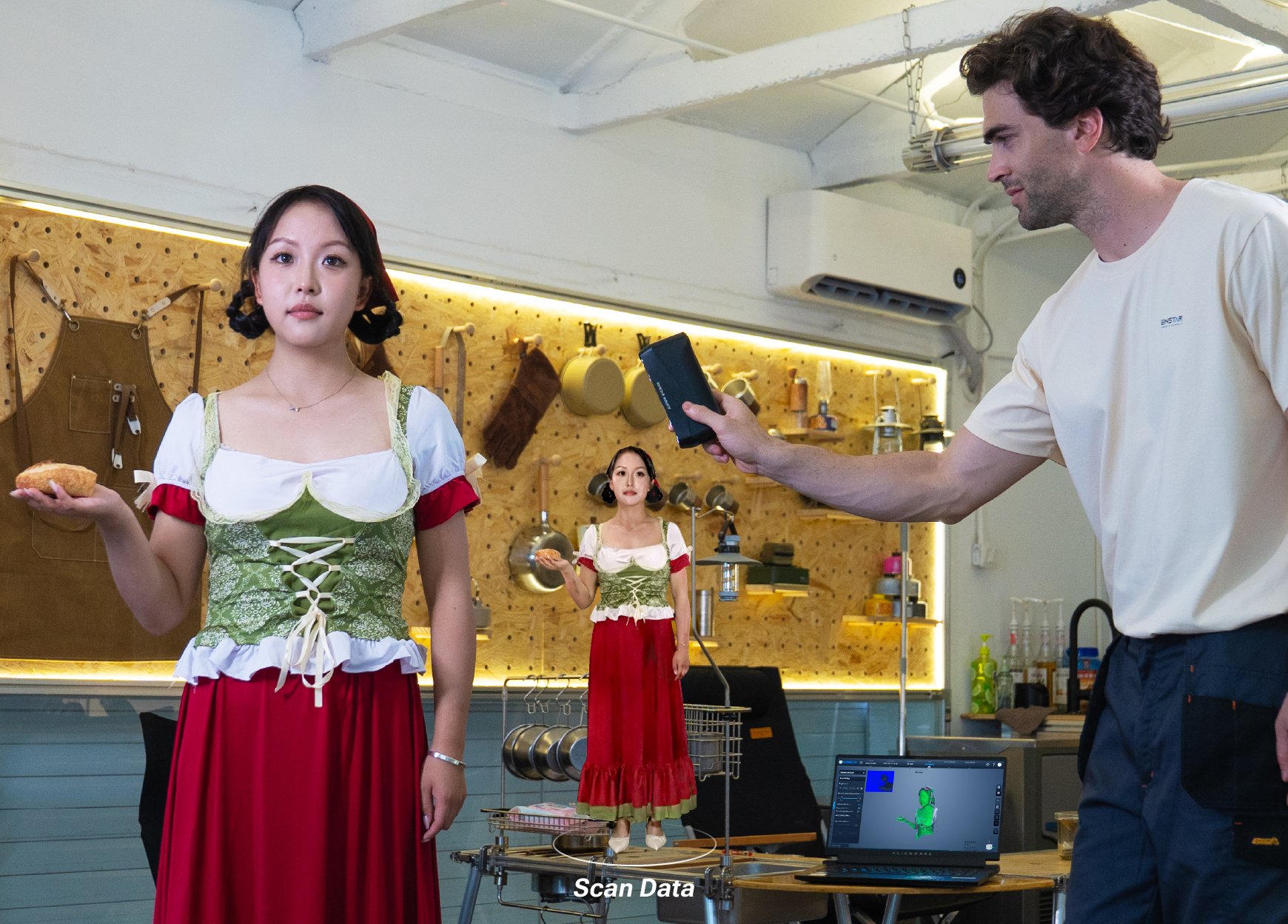

IR VCSEL

IR VCSEL

  • From face to feet, scan safely and fast within just 60 seconds
  • High efficiency for medium to large objects
  • Performs well outdoors and in bright environments
  • Hybrid alignment (Texture + Feature) adapts to more scanning scenarios

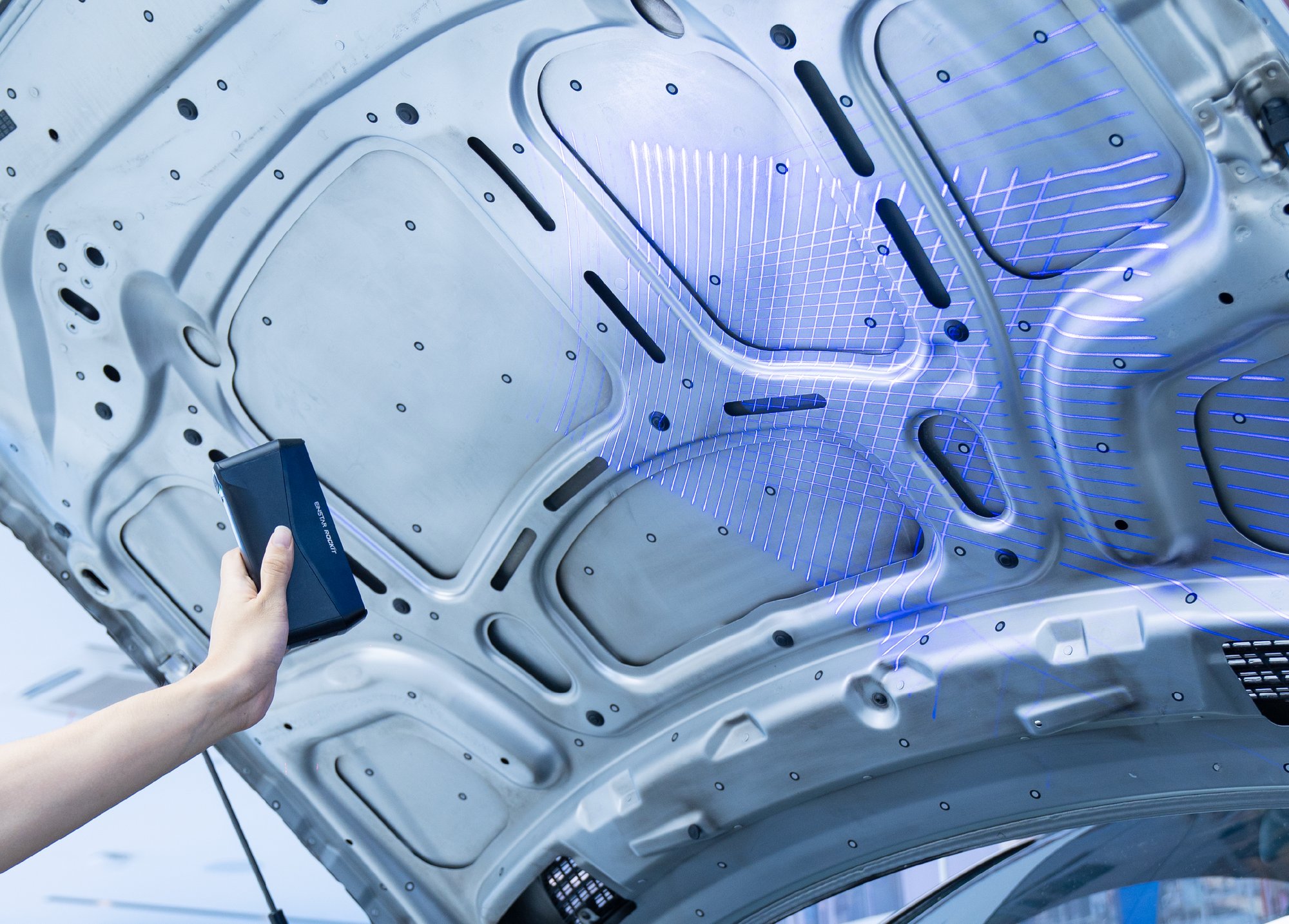

Pocket Size, Rocket Speed

Pocket Size, Rocket Speed

  • Sleek and solid build with a refined finish — fits comfortably in your hand or pocketd
  • Up to 90 fps with marker alignment for smooth, real-time capture
  • High-quality point cloud with clean and consistent output you can trust

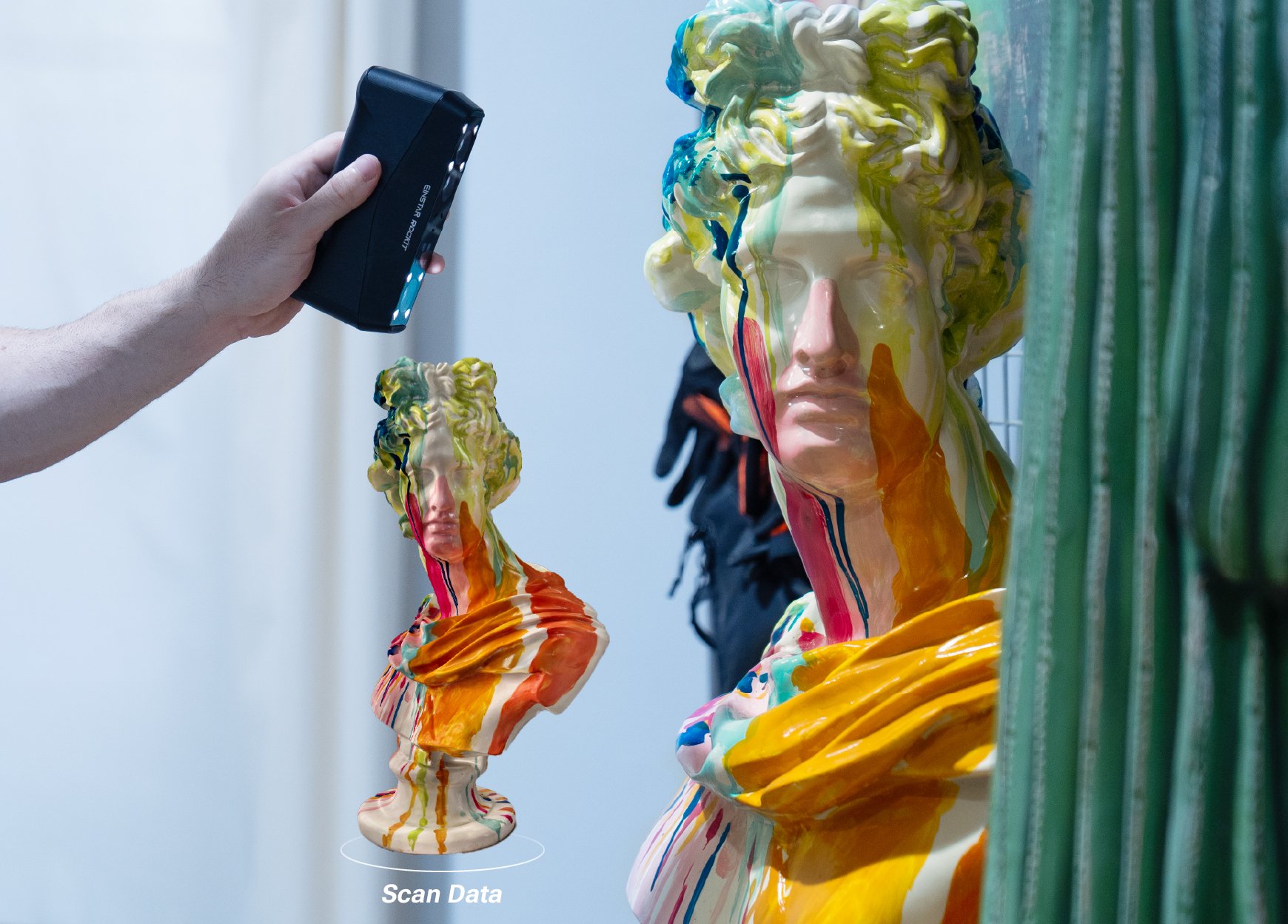

Capture True Colors

Capture True Colors

  • Built-in 5MP color camera for vivid texture capture
  • Adds realistic details and depth to 3D models
  • Perfect for AR/VR, digital art, and custom designs

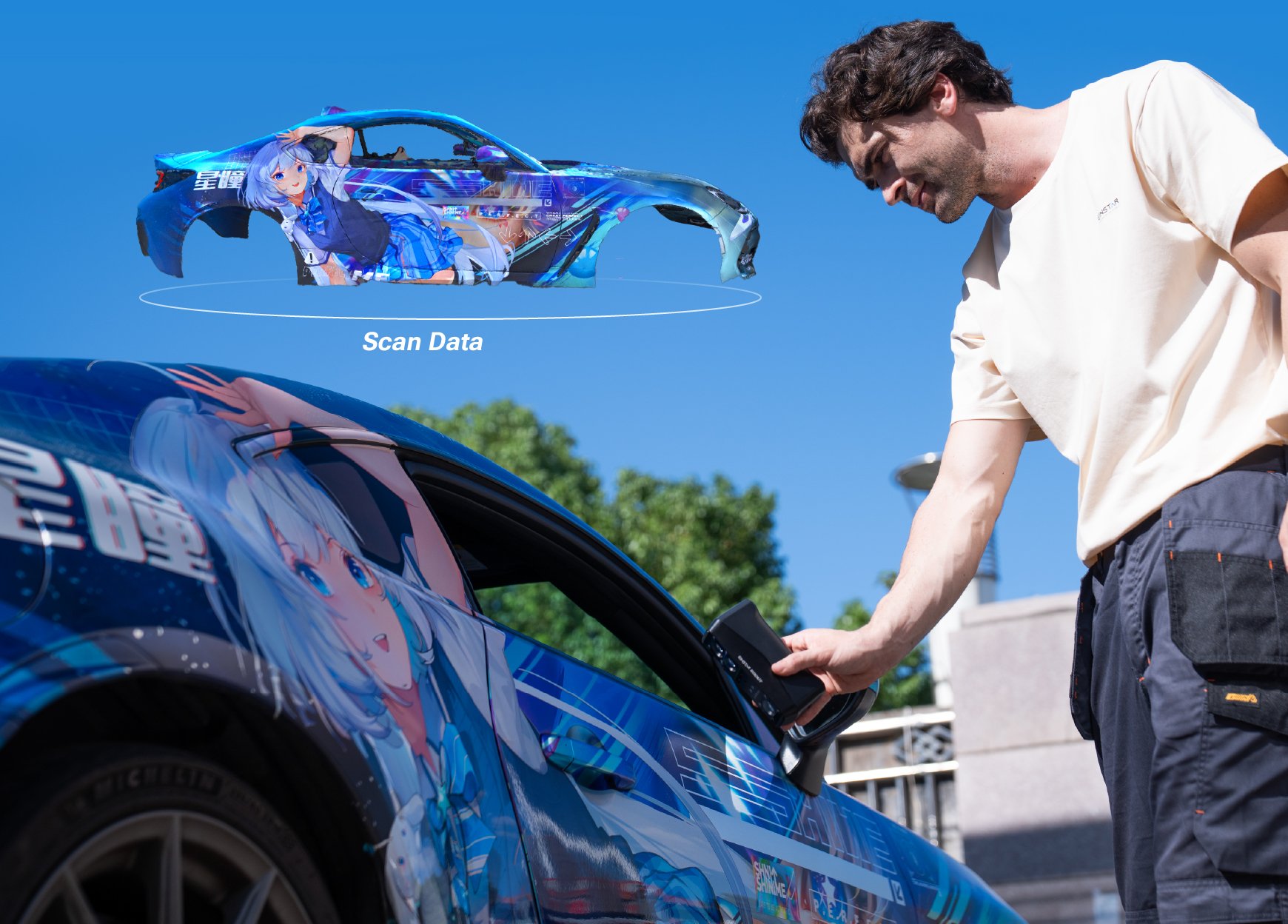

Ready for Outdoor Scanning

Ready for Outdoor Scanning

  • Reliable performance in daylight and varied lighting
  • Fully wireless and cable-free for true mobility
  • Perfect for scanning outdoor objects like statues, sculptures, and more
  • Laser HD mode works up to 110,000 Lux and IR Rapid mode up to 70,000 Lux for reliable scanning even in bright light environment.

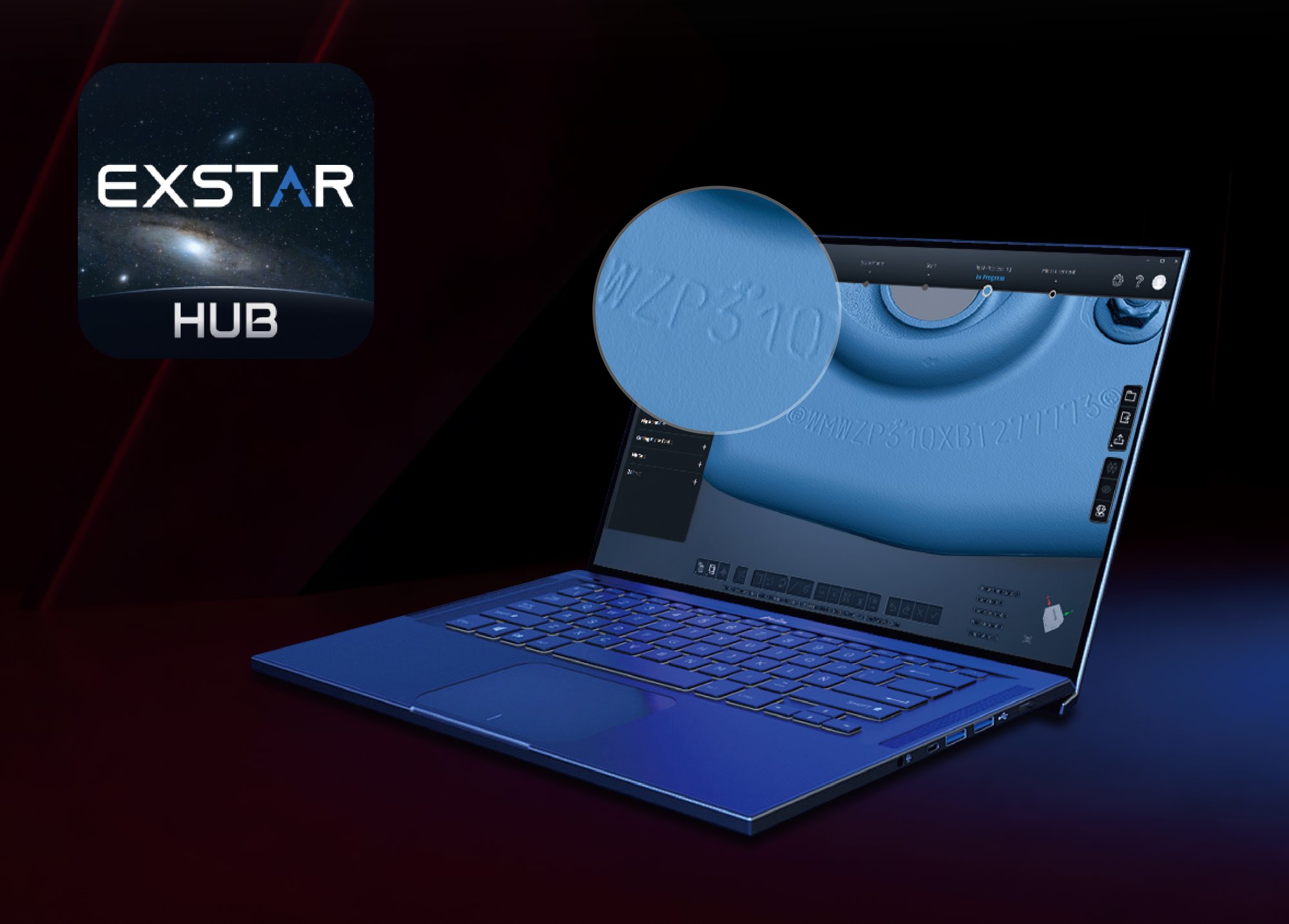

8 EXStar Hub

EXStar Hub:
Next-Gen Software

EXStar Hub is an intuitive software platform for EINSTAR Rockit and EINSTAR 2. It streamlines workflows through a unified interface, reduces system load, and improves performance, allowing faster scanning, greater mobility, and lower operating costs.



What You Can Achieve with Our Scanners

Discover how integrating our scanners into your workflow can enhance efficiency and help you achieve remarkable results.

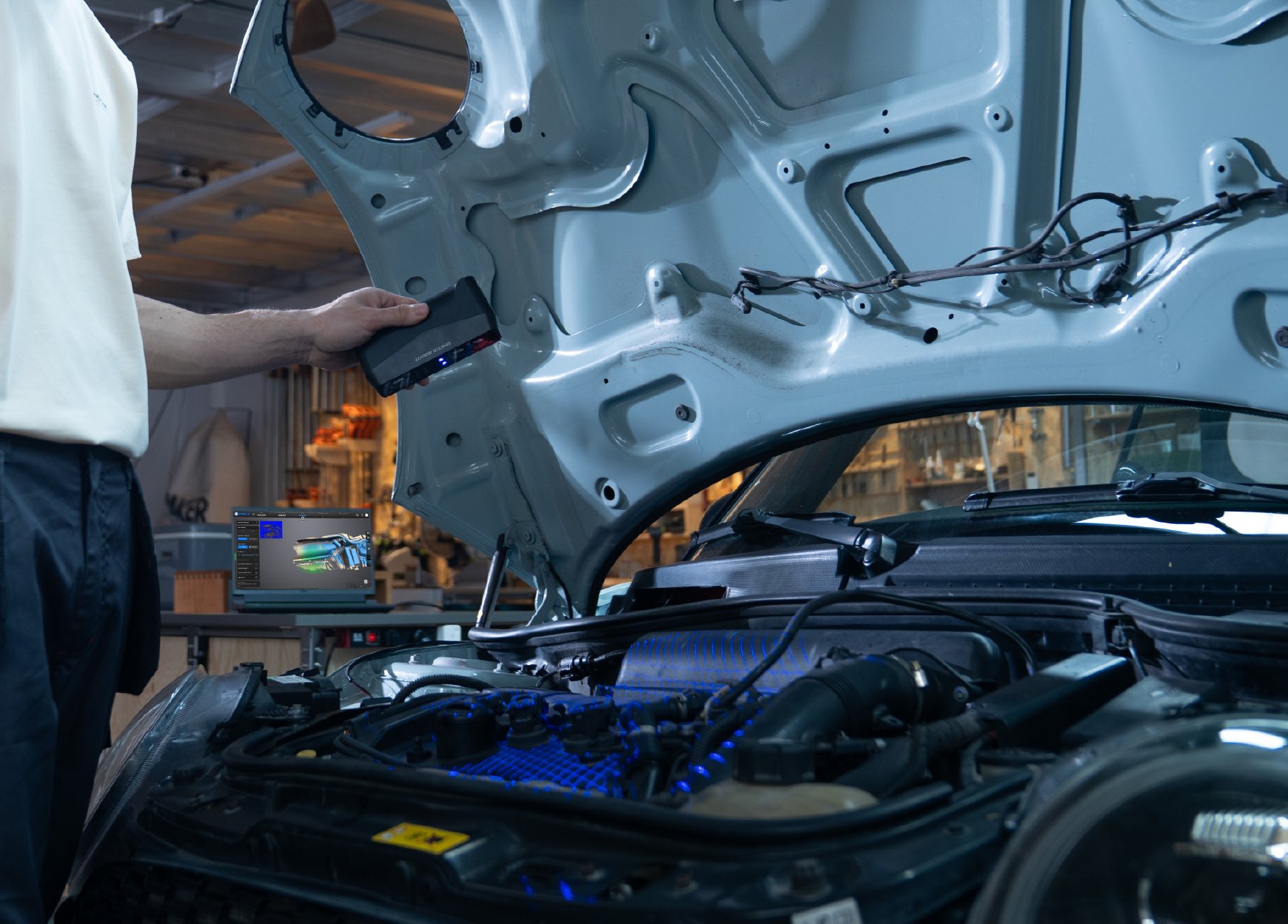

  • Automotive

    EINSTAR Rockit is the go-to 3D scanning solution tailored for the dynamic needs of automotive customization. It delivers rapid, high-quality 3D data specifically for modifying exterior body kits, interior trim, and accessories. With its compact, cable-free design and robust battery life, Rockit brings unparalleled portability to the workshop or scan site. It effortlessly captures a wide range of materials—from matte plastics and carbon fiber to glossy paints and chrome finishes—without the need for spraying. For demanding projects requiring ultimate speed and precision, Rockit seamlessly connects to a PC via Wi-Fi or USB-C, unlocking advanced processing power.

    Learn More

  • Cultural Creation & Art Customization

    EINSTAR Rockit unlocks limitless possibilities for cultural preservation and artistic innovation. Its flexibility allows you to capture inspiration anywhere—from monumental outdoor sculptures and historical artifacts to intricate studio artworks—free from the constraints of cables and fixed locations. Empowered by a true 5MP high-resolution texture camera, Rockit captures vibrant colors and exquisite surface details with stunning realism, perfect for creating immersive AR/VR experiences, detailed archival records, or unique custom art pieces.

    Learn More

  • Research & Education

    The combination of intuitive software with a low learning curve and an exceptionally lightweight, simple-to-operate device allows users to focus on their projects, not on complex setups. It generates high-quality, high-resolution data ready for analysis and application. Seamlessly integrating into professional 3D design and modeling workflows, Rockit is the best partner for beginners, or fostering innovation in academic research and education.

    Learn More

3D Model Gallery

See more

EXModel Personal

Effortless Interaction

The EXModel Personal is seamlessly integrated with EXStar Hub software. After scanning, you can transfer the mesh data to EXModel Personal with a single click, making the transition from scan to design even easier.

Mesh Editing

EXModel Personal's mesh editing tools are simple to use and make it easy to reduce data size while maintaining accuracy. You can easily fill in holes and remove mesh outliers to easily create watertight meshes for 3D printing or reverse engineering.

Primitives Extraction

EXModel Personal quickly reconstructs planes, cylinders, cones, and spheres. Additionally, create reference geometries like lines and points for use in aligning meshes to the world coordinate system or to other scans.

3D Sketching & Fill Surface

Draw freeform curves directly on the reference mesh and create blended curves ready for future use, including filled surfaces, free forms from 3D sketches, or any other surface manipulation. You can also create bounded surfaces from 3D sketches and get the best base shapes for your reference data for more accurate results.

Constrained 2D Sketching

Use the dimensioning and constraint tools to create accurate sketches like in any other CAD package. Interactive cutting allows users to extract reference points for 2D sketches. Interactive creation can collaborate with world or CAD planes, or even cut surfaces of aligned curves. For even more power and efficiency, users can create multiple cutting surfaces at once.

Comparison & Analysis

With EXModel Personal software, after creating features based on existing mesh, the comparison and analysis function can be used to monitor the real-time error between the newly created model and the original scanned mesh. At the same time, custom tolerance values can be dynamically adjusted, which is very convenient and intuitive.

Function Features Comparison

Feature

 EXModel Pro EXModel Personal
Input
Import STL, OBJ, PLY meshes ✓ ✓
Import CAD file ✓ ✗
Scan Data
Edit mesh ✓ ✓
Defeature/Average mesh/Unroll ✓ ✗
Trim with geometric primitives ✓ ✓
Reduce polygons/Reduce noise ✓ ✓
Scale/Flip Normals/Re-polygonize/Mirror ✓ ✓
Align by CS/Align interactive/Auto colorize ✓ ✓
By N-Points/Fine align/Global fine align ✓ ✗
Extract Primitives
Segmentation ✓ ✗
Primitives fit/Analysis/Construct primitives ✓ ✓
Freeform
Manual free form/Wrap surface/Thicken ✓ ✓
Basic Auto freeform/Feature based auto free form ✓ ✗
From 3D sketch/From quad OBJ ✓ ✗
Surfacing
Fit surface/3D sketch ✓ ✓
Loft ✓ ✓
Roll Sketch/Flatten ✓ ✗
Fill surface/Blend surface/Sweep/Pipe/Helix ✓ ✓
Extend surface/Thicken/Offset/Sew surfaces ✓ ✓
CAD
2D Sketch ✓ ✓
Multiple sections/Roll Sketch/Auto Trim/Draft ✓ ✗
Extrude/Revolve/Blend surface ✓ ✓
Sweep/Pipe/Helix/Extend surface/Trim ✓ ✓
Combine / Cut / Intersect/Circular / Linear pattern ✓ ✓
Mirror/Thicken/Offset/Shell ✓ ✓
Move Body/Move Face/Delete faces/Sew surfaces ✓ ✓
Fillet (constant)/Fillet (variable)/Chamfer ✓ ✓
Fillet (3 faces) ✓ ✗
2D Sketch
Extract (best fit) primitives ✓ ✓
Auto Sketch/Export 2D sketch as IGES/DXF ✓ ✗
Manual entities/Dimensions/Constrains ✓ ✓
Analysis
Measure/Zebra/Environment Map ✓ ✓
Draft analysis ✓ ✗
Snapshot to clipboard ✓ ✓
Compare with CAD (based on original mesh) ✓ ✓
Compare with CAD & Mesh ✓ ✗
Export
Scan data ✓ ✓
STEP/IGES/PARASOLID ✓ ✗
CAD as STL ✓ ✓
Commercial use ✓ ✗

Compatible Software

BlueStar Mapping
BlueStar Mapping
for Texture Mapping

EINSTAR Rockit Specification

  • Scan Mode Laser HD | IR Rapid
  • Light Source 19 + 19 Cossed Laser Lines | 7 Blue Laser Parallel Lines | IR VCSEL
  • Resolution Laser HD: 0.05 ~ 10 mm | IR Rapid: 0.2 ~ 10 mm
  • Scanning Speed Laser HD: 2,800,000 points/s | IR Rapid: 1,440,000 points/s
  • Working Distance Laser HD: 100 ~ 600 mm | IR Rapid: 160 ~ 1400 mm
  • Max. FOV 19+19 crossed lines: 545 x 620 mm | 7 parallel lines: 355 x 425 mm | IR: 1170 x 1385 mm
  • Alignment Mode Laser HD: Global Marker/Markers/Features/Hybrid | IR Rapid: Global Marker/Markers/Features/Texture/Hybrid
  • Output Formats STL; OBJ; PLY; 3MF; ASC
  • Laser Class Class 2
  • Outdoor Scanning Environment Laser HD: Below 110,000 Lux | IR Rapid: Below 70,000 Lux
  • Dimension (H*D*W): 130 x 37 x 61 mm/ 5.12 x 1.46 x 2.40 in
  • Net Weight 425g/0.94 lbs (Batteries included), 353g/0.78lbs (Batteries excluded)
Download Brochure

Our Expertise, Your Advantage

20

years experience

500

patents

200

3D scanners sold worldwide



Frequently Asked Questions

  • Who is EINSTAR Rockit for, and what are its typical use cases?

    EINSTAR Rockit is a portable and high-efficiency 3D scanner ideal for users like product designers, Car engineers, 3D artists and makers. Its applications include automotive part scanning, digital art creation, AR/VR content production, and scanning outdoor objects like statues and sculptures.

  • Does Rockit support wireless scanning?

    Yes, Rockit has a built-in Wi-Fi module for wireless connection to a PC doesn’t require any additional accessories, providing a more convenient setup and stable connection.  A USB Type-C cable connection is also available for stable operation in case of Wi-Fi interference.

  • Can Rockit work effectively outdoors or under bright lighting?

    Yes, Rockit is designed for outdoor scanning. The Laser HD mode works under bright light up to 110,000 Lux, and the IR Rapid mode supports up to 70,000 Lux, making it reliable for scanning large objects in daylight or under vehicle lights.

  • What is the PC configuration required?

    Win11, Professional 22H2 (64-bit); Graphics card: NVIDIA GeForce RTX 3060 Laptop GPU or above; VRAM: 6 GB or above;
    RAM (Minimum): 32 GB, DDR5 dual-channel;
    RAM (Recommended): 64 GB or above, DDR5 dual-channel;
    Interface: USB 3.0; Processor: 13th Gen Intel®Core™ i7-13700H or above
    If you want a smooth marker-free laser scan experience 64GB RAM is necessary.

  • Are markers required for scanning?

    Rockit supports Marker-free laser scanning in both crossed and parallel lines, aligning data via feature recognition to simplify workflow and improve efficiency. It also supports marker-based alignment for objects with few surface features in laser mode. IR mode of Rockit supports Hybrid alignment, including feature, texture and marker tracking for different objects.

  • What is the battery life?

    It features a chargeable battery with up to 3 hours of runtime. There are two batteries and one charger for the batteries, which means you can use one battery and charge another at the same time, scanning without power anxiety.

  • Is the texture resolution real 5MP?

    Yes, absolutely. EINSTAR Rockit features a dedicated 5MP color camera for texture capture. More importantly, our advanced texture mapping algorithm intelligently processes the data with minimal resolution loss, ensuring that the final 3D model achieves a genuine and high-fidelity 5MP texture resolution. This means you get photorealistic textures with sharp details and accurate colors, significantly enhancing the realism of your digital models.
