EINSTAR 2

Still EINSTAR, even better

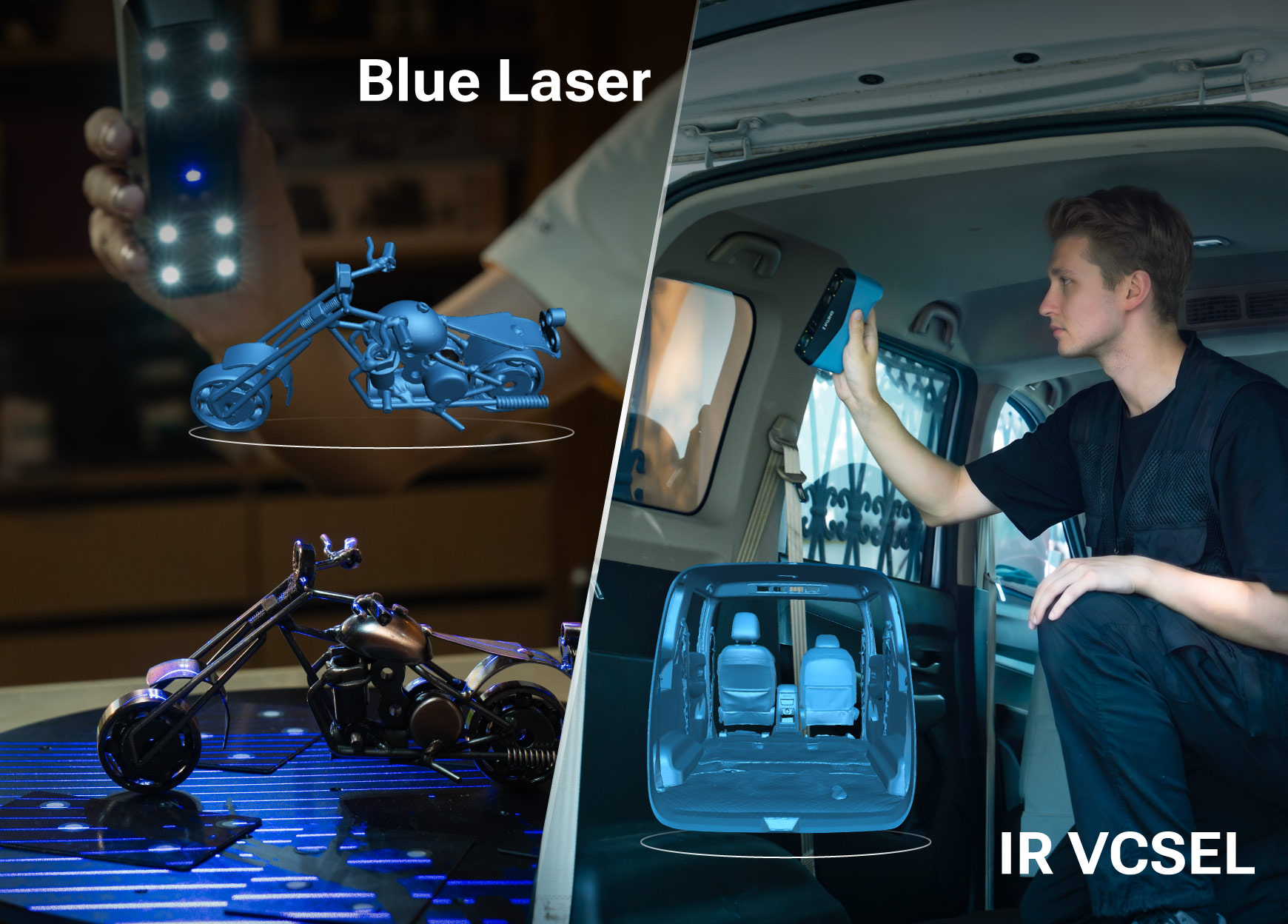

  • Blue Laser + IR VCSEL
  • Wireless Scanning
  • High-Speed Scanning of up to 90 fps
  • EXStar Hub
Get a quote
C0553221-CA19-4820-A88F-3B18E4DA23A2

Visit EINSTAR Online Store

EINSTAR, powered by SHINING 3D with over 20 years of expertise in high-precision 3D digital products, inherits SHINING 3D's gene of innovation and advanced technology to push the boundaries of 3D scanning. Committed to making high-quality products accessible to every 3D explorer, EINSTAR is dedicated to unleashing the possibilities of each shining idea.



Shop Now

Still EINSTAR, Even Better

Hybrid Light Source

Hybrid Light Source

True Wireless

True Wireless

Fine Details Capture

Fine Details Capture

Full-Color Capture

Full-Color Capture

Compact & Lightweight Hardware

Compact & Lightweight

EXStar Hub

EXStar Hub

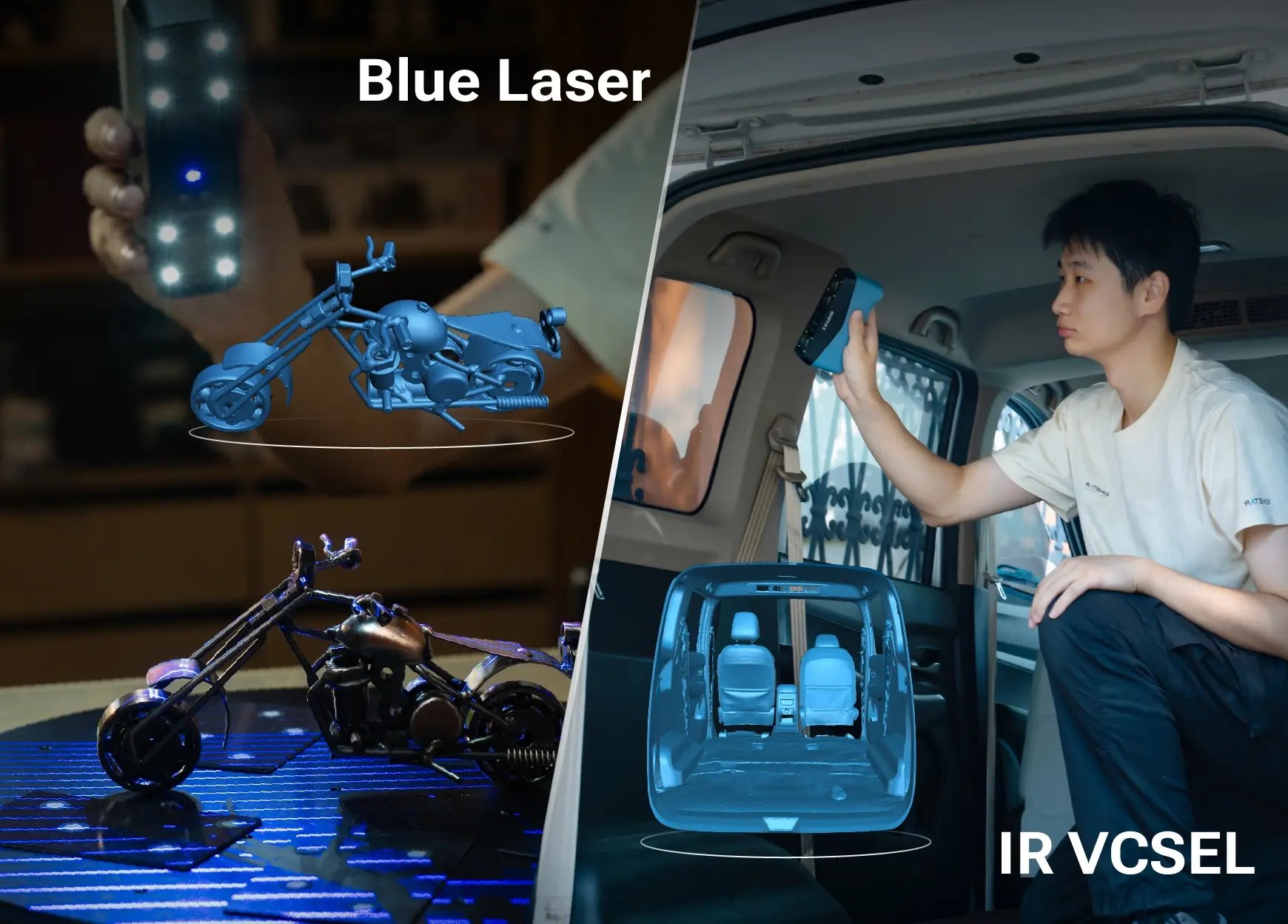

Hybrid Light Source

Hybrid Light Source

  • 17 Parallel Laser Lines
    EINSTAR 2 delivers high-resolution detail capture for small objects, efficient medium-sized scans with its 17-line array, improved performance on reflective and metallic surfaces, and high-speed operation of up to 90 fps. Meanwhile, it has optimized capability for deep-hole scanning.

  • IR VCSEL
    Featuring higher-resolution cameras and enhanced performance on black surfaces and outdoors, EINSTAR 2 efficiently captures large objects with abundant detail in a single scan.

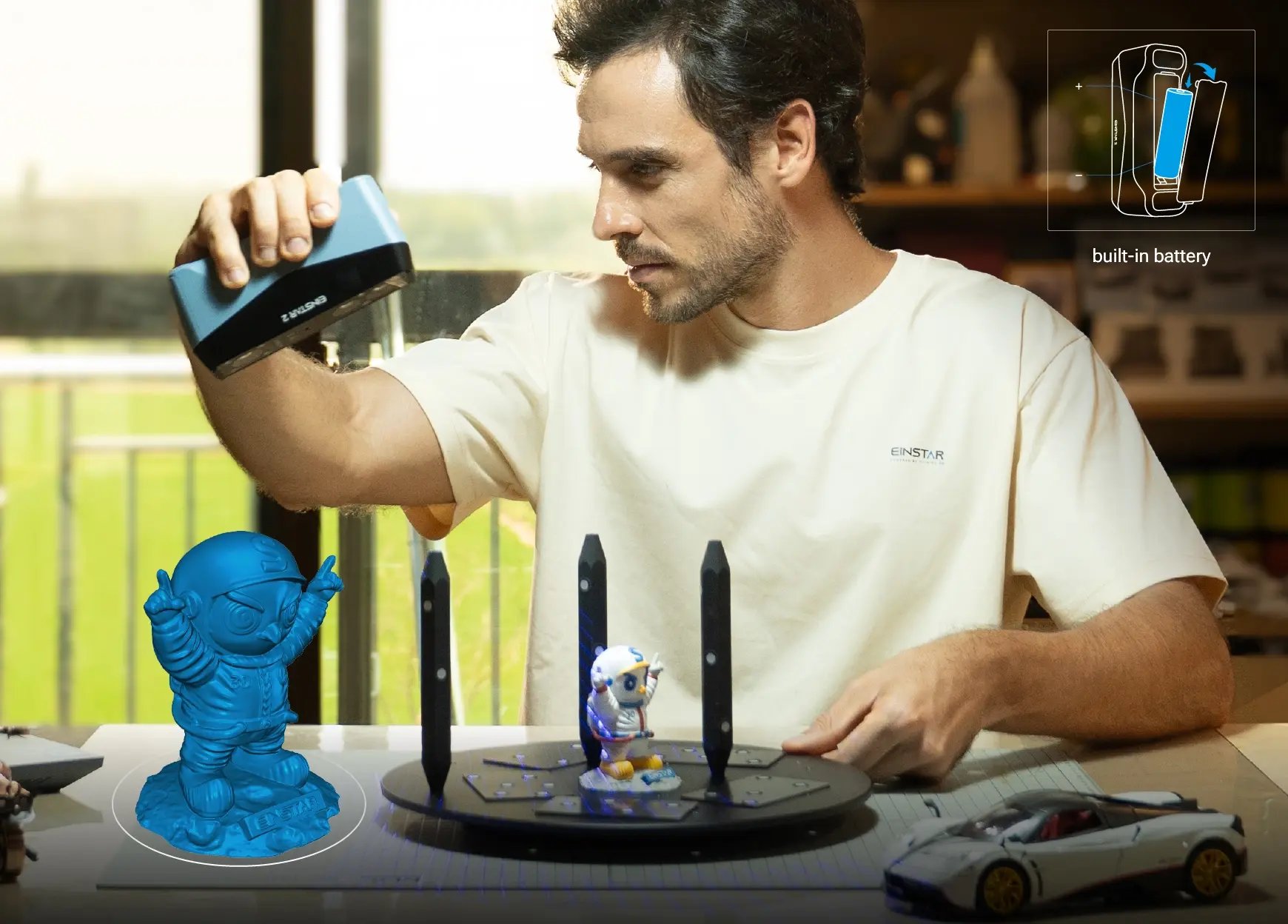

True Wireless

True Wireless

EINSTAR 2 features a swappable built-in battery that provides up to 3 hours of uninterrupted scanning, giving you true portability with no cable limits or extra hub required—scan anytime, anywhere inspiration strikes.

*cable connection also available if Wi-Fi interference occurs.

shining3d 官网einstar2-13

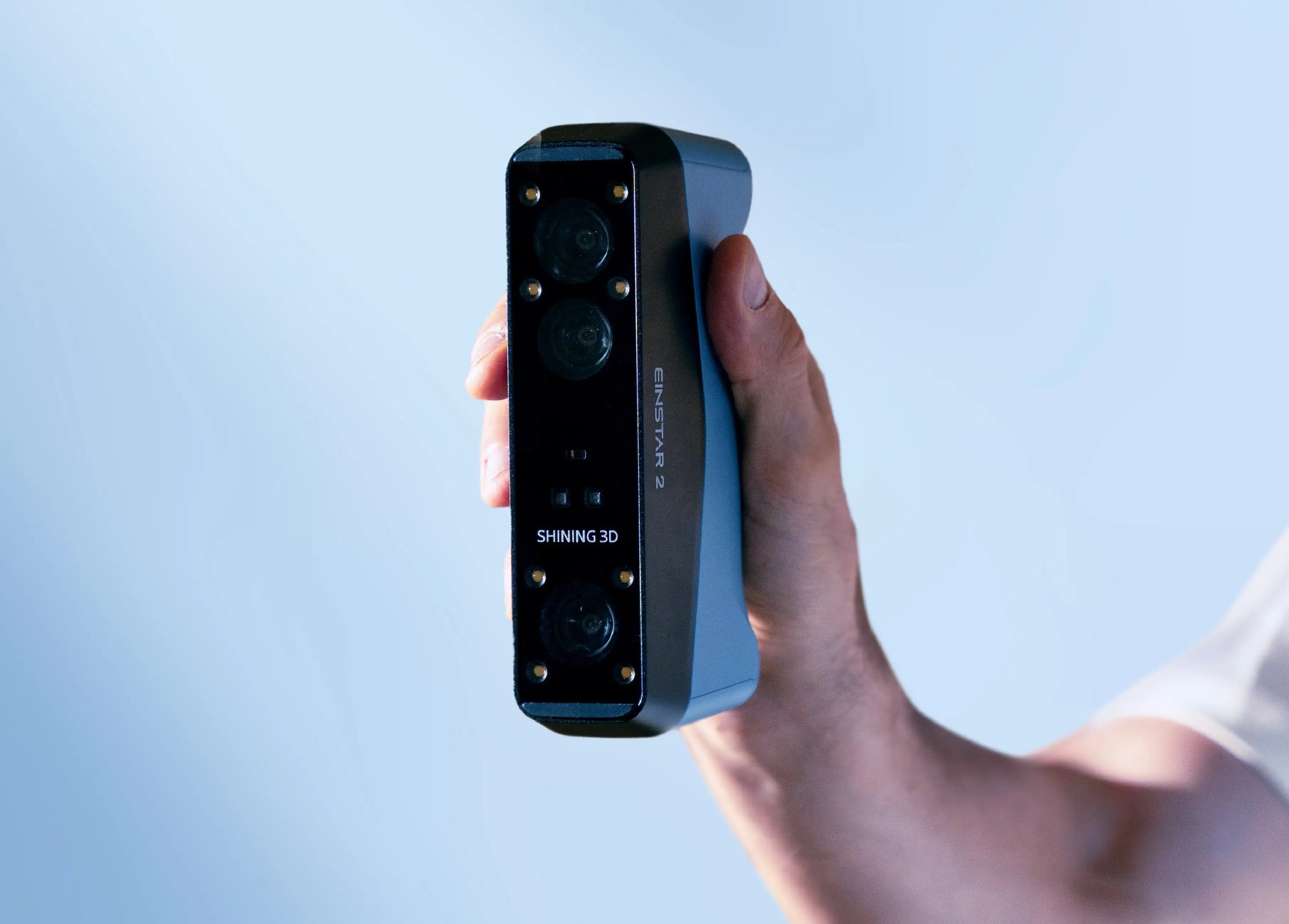

Palm-Sized Body

Compact, lightweight, and engineered for comfort. With a redesigned structure and reduced weight (only 420g), it’s your ideal scanning companion on-the-go.
No Spray Scanning

No Spray, No Delay

EINSTAR 2 adapts to a wide range of materials, it can scan black or reflective objects directly, no spray required. Save time, stay clean, and get accurate results instantly.

shining3d 官网einstar2-15

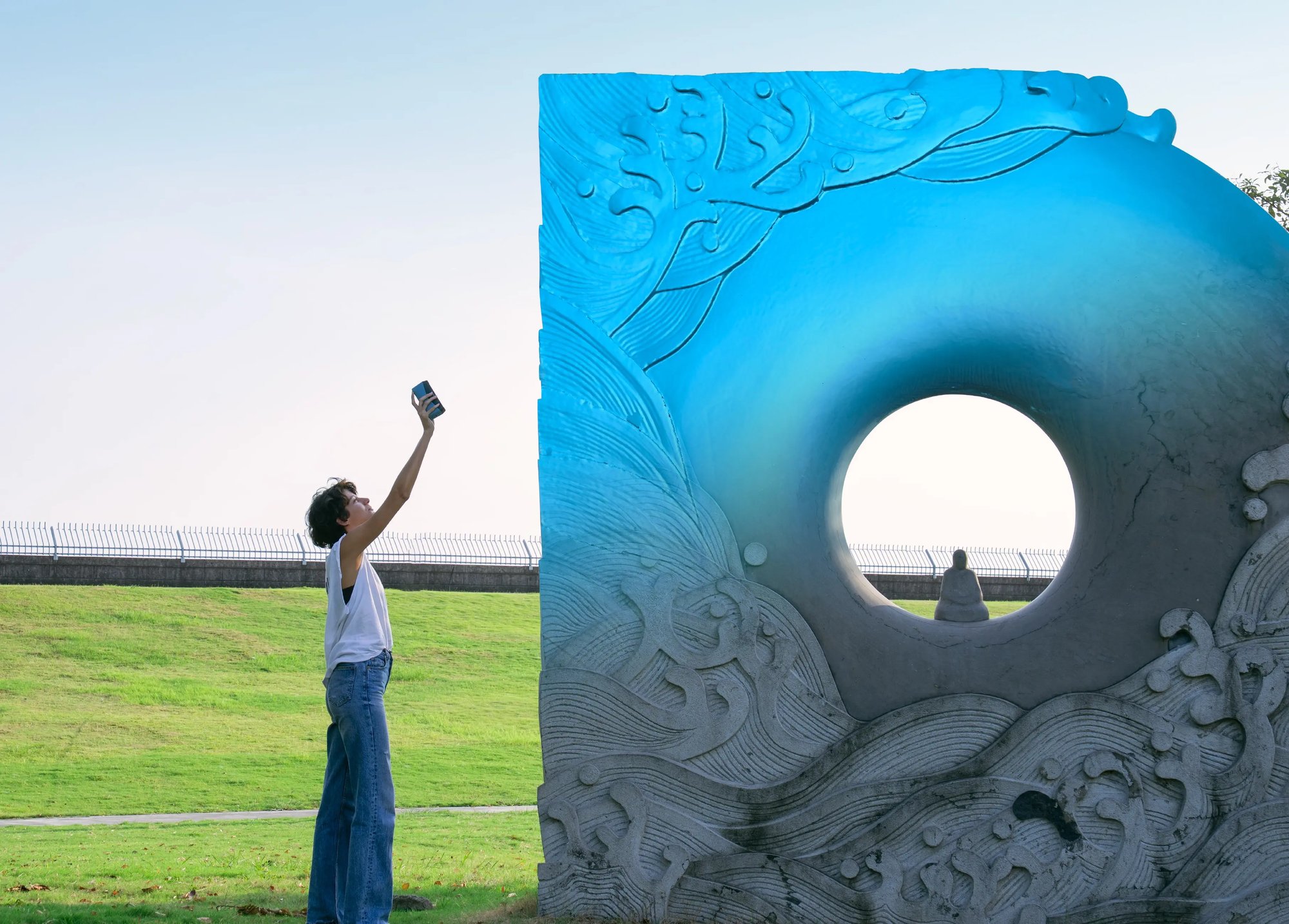

Take It Outside

With robust performance in dynamic lighting and complex environments, EINSTAR 2 lets you take reliable 3D capture beyond the studio walls. Take it outside, your data stays sharp. Laser HD mode works up to 110,000 Lux and IR Rapid mode up to 70,000 Lux for reliable scanning even in bright light environment.

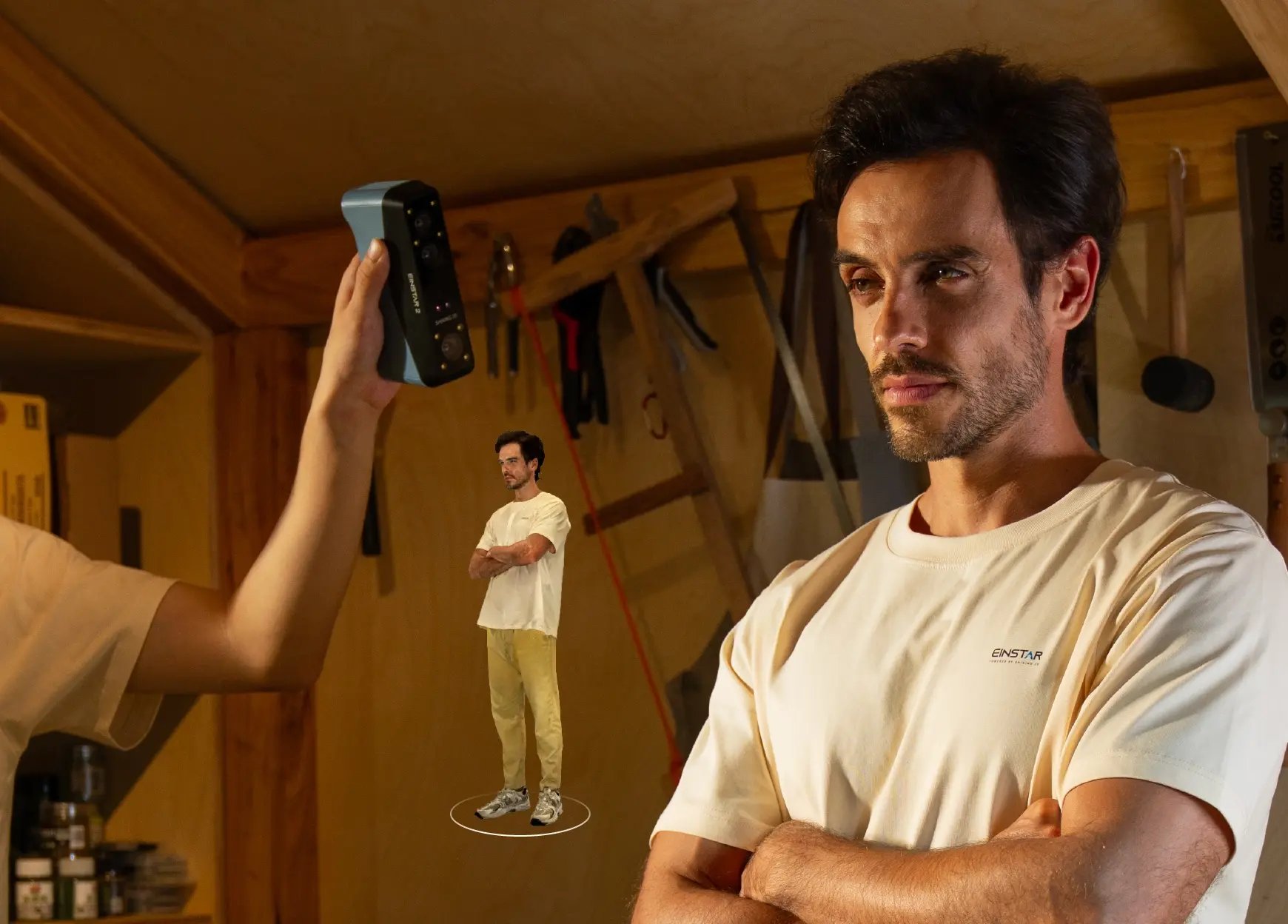

Portrait Scanning

Lifelike Portrait Scanning

The infrared light is eye-safe with comfortable scanning experience and can capture full body data in just 60 seconds.

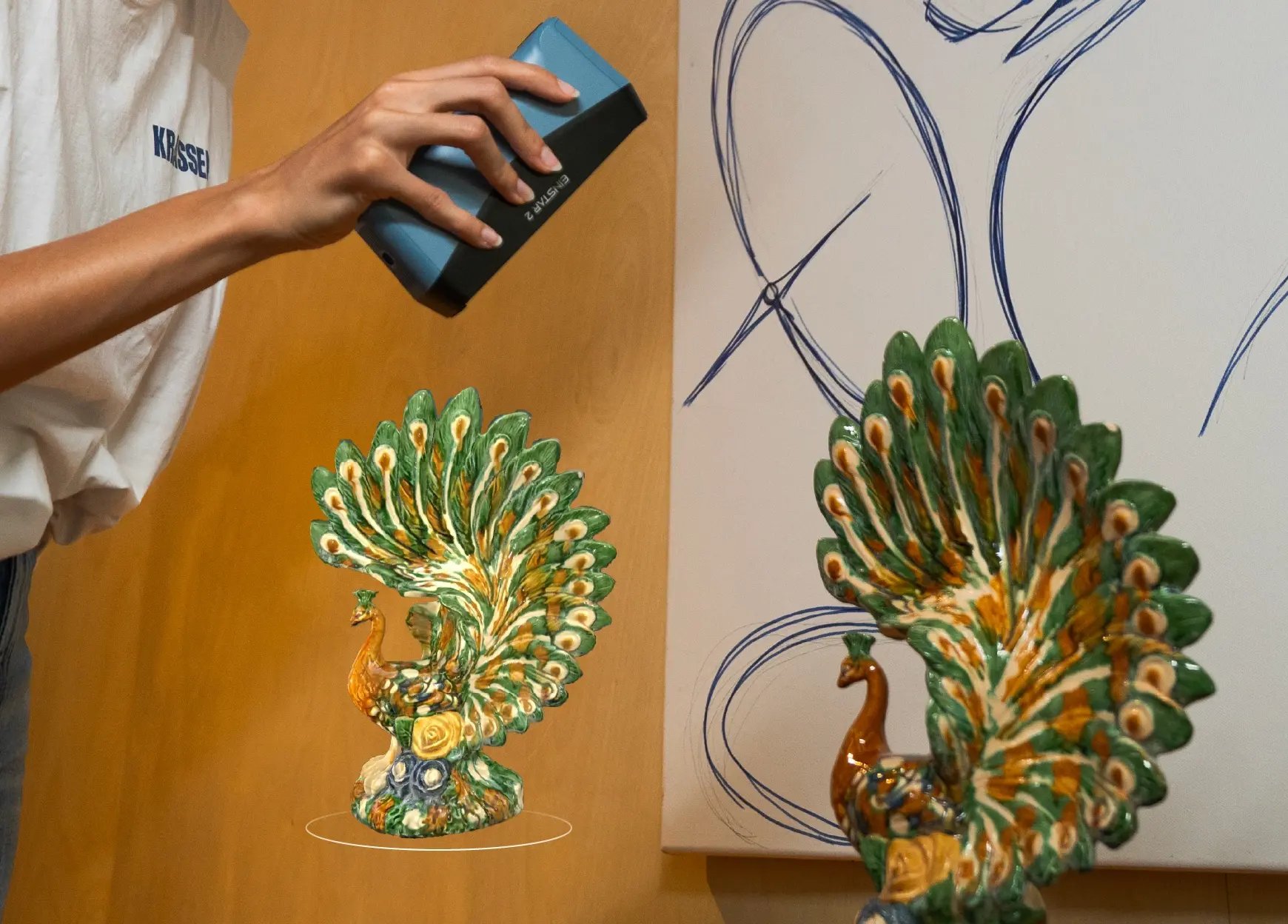

true-to-life color

Realism You Can See

Integrated RGB camera captures vivid, true-to-life color for every scan. It's suitable for scanning art and crafting immersive VR/AR experiences.

shining3d 官网einstar2-18

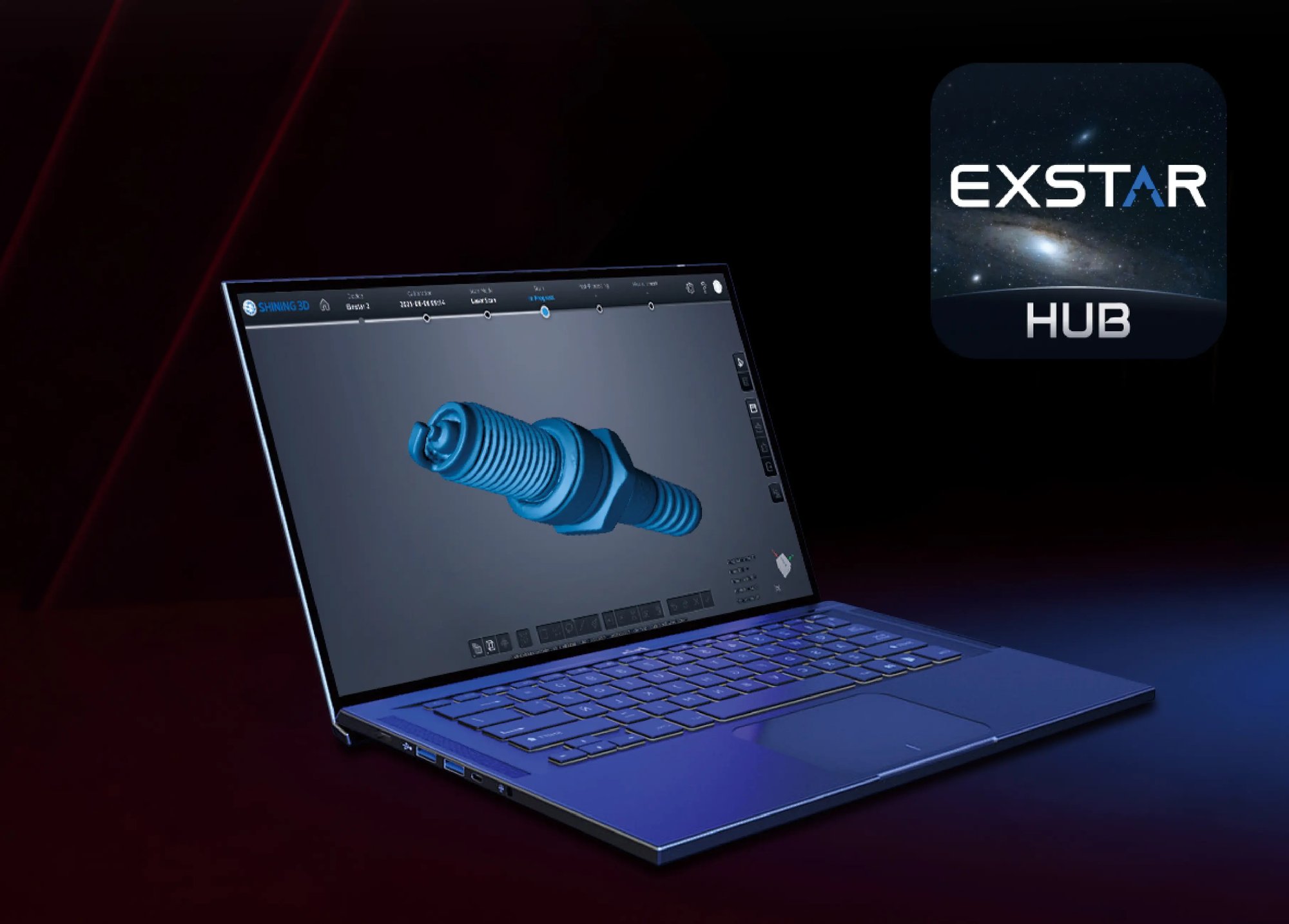

EXStar Hub:
Next-Gen Software

EXStar Hub is an intuitive software platform for EINSTAR Rockit and EINSTAR 2. It streamlines workflows through a unified interface, reduces system load, and improves performance, allowing faster scanning, greater mobility, and lower operating costs.



What You Can Achieve with Our Scanners

Discover how integrating our scanners into your workflow can enhance efficiency and help you achieve remarkable results.

  • 3D Printing & Personal Manufacturing

    EINSTAR 2 is the perfect first 3D scanner for anyone in 3D printing and personal manufacturing. Its hybrid light source effortlessly captures objects of all sizes and materials—from detailed prototypes to larger projects—delivering high-quality, print-ready data. The intuitive EXStar Hub software with seamless integration to EXModel for easy repair and the SHINING 3D platform for sharing, it simplifies the entire process from scan to print. No complex setup or prior experience is needed—just a quick, reliable way to bring your physical ideas into the digital world and back again as finished prints.

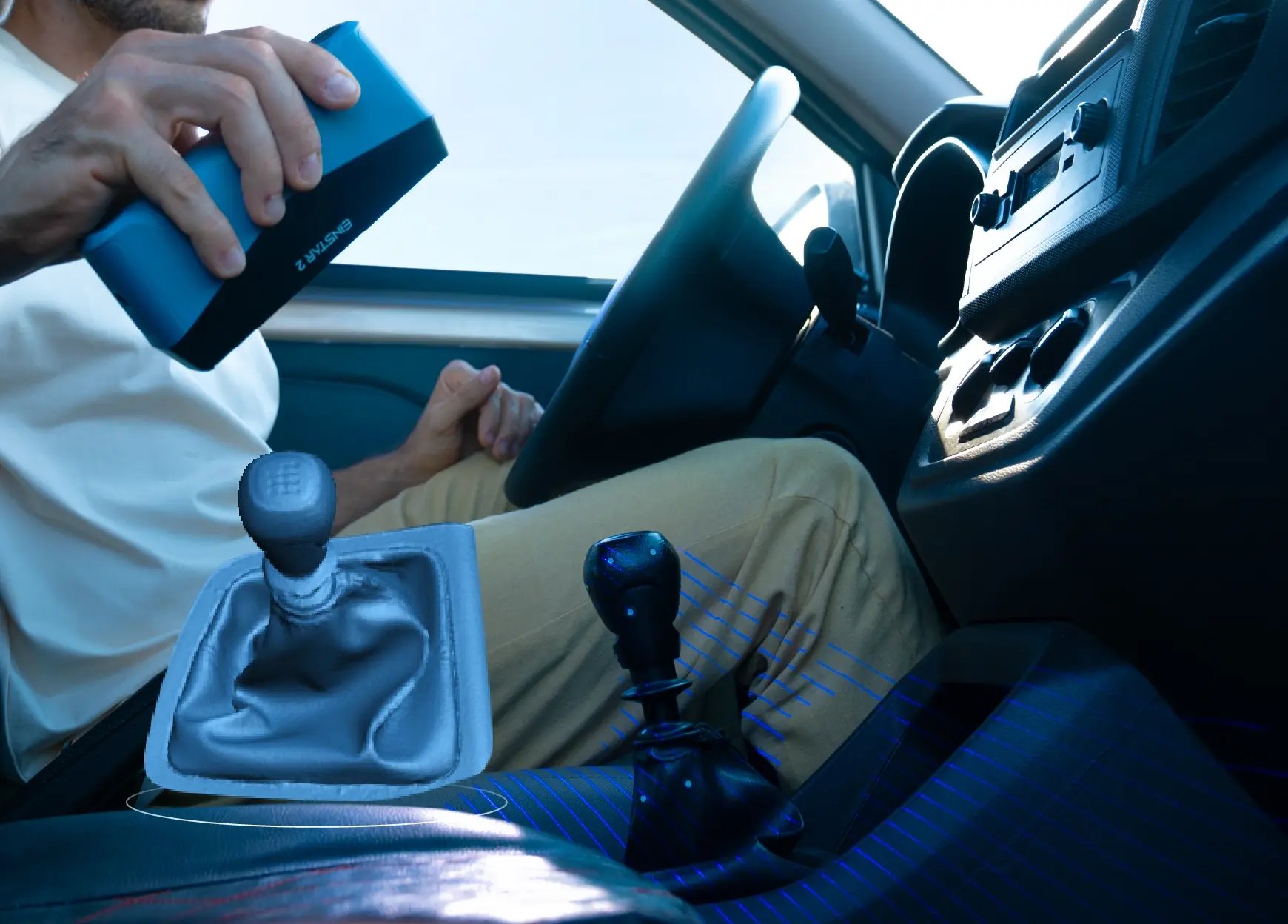

  • Automotive Aftermarket & Engineering

    EINSTAR 2 brings unmatched flexibility to the automotive workshop with its true wireless design, ideal for scanning in tight or complex environments like engine bays and interior cabins. Its 17 parallel laser lines capture sharp edges and fine details with precision, making it perfectly suited for reverse engineering, part modification, and custom fabrication. In addition,with its smooth tracking, rapid scanning speeds, and extended battery life and lightweight, compact form factor ensures comfortable handling during long sessions, delivering professional-grade 3D data that streamlines design, analysis, and fitment validation—all with studio-level results on the shop floor.

    Learn More

  • Cultural Creation & Art Customization

    EINSTAR 2 empowers artists and cultural creators with full-color 3D scanning in both laser and infrared modes, capturing true-to-life textures and details across a wide variety of objects. Combined with its completely wireless operation and exceptional outdoor performance, it breaks free from traditional studio limits, enabling scanning in museums, public spaces, and natural environments. It's ready for interactive art, AR/VR experiences, archival, and personalized customization.

    Learn More

3D Model Gallery

See more

EXModel Personal

Effortless Interaction

The EXModel Personal is seamlessly integrated with EXStar Hub software. After scanning, you can transfer the mesh data to EXModel Personal with a single click, making the transition from scan to design even easier.

Mesh Editing

EXModel Personal's mesh editing tools are simple to use and make it easy to reduce data size while maintaining accuracy. You can easily fill in holes and remove mesh outliers to easily create watertight meshes for 3D printing or reverse engineering.

Primitives Extraction

EXModel Personal quickly reconstructs planes, cylinders, cones, and spheres. Additionally, create reference geometries like lines and points for use in aligning meshes to the world coordinate system or to other scans.

3D Sketching & Fill Surface

Draw freeform curves directly on the reference mesh and create blended curves ready for future use, including filled surfaces, free forms from 3D sketches, or any other surface manipulation. You can also create bounded surfaces from 3D sketches and get the best base shapes for your reference data for more accurate results.

Constrained 2D Sketching

Use the dimensioning and constraint tools to create accurate sketches like in any other CAD package. Interactive cutting allows users to extract reference points for 2D sketches. Interactive creation can collaborate with world or CAD planes, or even cut surfaces of aligned curves. For even more power and efficiency, users can create multiple cutting surfaces at once.

Comparison & Analysis

With EXModel Personal software, after creating features based on existing mesh, the comparison and analysis function can be used to monitor the real-time error between the newly created model and the original scanned mesh. At the same time, custom tolerance values can be dynamically adjusted, which is very convenient and intuitive.

Function Features Comparison

Feature

 EXModel Pro EXModel Personal
Input
Import STL, OBJ, PLY meshes ✓ ✓
Import CAD file ✓ ✗
Scan Data
Edit mesh ✓ ✓
Defeature/Average mesh/Unroll ✓ ✗
Trim with geometric primitives ✓ ✓
Reduce polygons/Reduce noise ✓ ✓
Scale/Flip Normals/Re-polygonize/Mirror ✓ ✓
Align by CS/Align interactive/Auto colorize ✓ ✓
By N-Points/Fine align/Global fine align ✓ ✗
Extract Primitives
Segmentation ✓ ✗
Primitives fit/Analysis/Construct primitives ✓ ✓
Freeform
Manual free form/Wrap surface/Thicken ✓ ✓
Basic Auto freeform/Feature based auto free form ✓ ✗
From 3D sketch/From quad OBJ ✓ ✗
Surfacing
Fit surface/3D sketch ✓ ✓
Loft ✓ ✓
Roll Sketch/Flatten ✓ ✗
Fill surface/Blend surface/Sweep/Pipe/Helix ✓ ✓
Extend surface/Thicken/Offset/Sew surfaces ✓ ✓
CAD
2D Sketch ✓ ✓
Multiple sections/Roll Sketch/Auto Trim/Draft ✓ ✗
Extrude/Revolve/Blend surface ✓ ✓
Sweep/Pipe/Helix/Extend surface/Trim ✓ ✓
Combine / Cut / Intersect/Circular / Linear pattern ✓ ✓
Mirror/Thicken/Offset/Shell ✓ ✓
Move Body/Move Face/Delete faces/Sew surfaces ✓ ✓
Fillet (constant)/Fillet (variable)/Chamfer ✓ ✓
Fillet (3 faces) ✓ ✗
2D Sketch
Extract (best fit) primitives ✓ ✓
Auto Sketch/Export 2D sketch as IGES/DXF ✓ ✗
Manual entities/Dimensions/Constrains ✓ ✓
Analysis
Measure/Zebra/Environment Map ✓ ✓
Draft analysis ✓ ✗
Snapshot to clipboard ✓ ✓
Compare with CAD (based on original mesh) ✓ ✓
Compare with CAD & Mesh ✓ ✗
Export
Scan data ✓ ✓
STEP/IGES/PARASOLID ✓ ✗
CAD as STL ✓ ✓
Commercial use ✓ ✗

Compatible Software

BlueStar Mapping
BlueStar Mapping
for Texture Mapping

EINSTAR 2 Specification

  • Scan Mode Laser HD | IR Rapid
  • Light Source 17 Blue Laser Parallel Lines | IR VCSEL
  • Resolution Laser HD: 0.05 ~ 10 mm | IR Rapid: 0.2 ~ 10 mm
  • Scanning Speed Laser HD: 2,500,000 points/s
    IR Rapid: 1,440,000 points/s
  • Working Distance Laser HD: 100 ~ 600 mm | IR Rapid: 160 ~ 1400 mm
  • Max. FOV Laser HD: 490 × 580 mm
    IR Rapid: 1170 × 1385 mm
  • Align Mode Global Marker/Markers/Features/Texture/Hybrid
  • Minimum Scan Volume Laser HD: 10*10*10 mm
    IR Rapid: 50*50*50 mm
  • Camera Resolution 3D: 2MP*2 ; Texture: 2.3 MP
  • Output Formats STL, OBJ, PLY, 3MF, ASC
  • Laser Class Class 2
  • Outdoor Scanning Environment Laser HD: Below 110,000 Lux
    IR Rapid: Below 70,000 Lux
  • Operation Conditions -10 ℃ ~ 40 ℃
  • Interface & Power Source USB Type-C Battery: 5500mA*1 Support 60W-PD3.0 Charger
  • Dimension (H*D*W) ：130 x 37 x 61 mm / 5.12 x 1.46 x 2.40 in
  • Net Weight 420g/0.92 lbs (Batteries included), 348g/0.77 lbs (Batteries excluded)
Download Brochure

Our Expertise, Your Advantage

20

years experience

500

patents

200

3D scanners sold worldwide



Frequently Asked Questions

  • How it compare to original EINSTAR？

    The EINSTAR 2 is a major step up from the original. It introduces a new laser mode for capturing finer details on small objects and can handle reflective surfaces without spray. The tracking in IR mode is even better, and the true wireless design offers greater flexibility. Furthermore, the new software delivers dramatically faster processing speeds and many other refined features to explore.

  • What is true wireless of EINSTAR 2 means?

    EINSTAR2 has a built-in Wi-Fi module for wireless connection which means there is no additional accessories required, save setup time.The whole scanning process is wireless.  A USB Type-C cable connection is also available for stable operation in case of Wi-Fi interference.



  • Can EINSTAR 2 work effectively outdoors or under bright lighting?

    Yes, EINSTAR 2 is designed for outdoor scanning. The Laser HD mode works under bright light up to 110,000 Lux, and the IR Rapid mode supports up to 70,000 Lux, making it reliable for scanning large objects in daylight or under vehicle lights.

  • What is the advantage of the 17 parallel laser lines compared to other laser patterns?

    optimal balance between speed and detail. Compared to a 7-line pattern, it captures sufficient detail quality while expanding the effective scanning range to cover medium-sized objects, completing such scans much faster. This design positions itself as a cost-effective solution between parallel-line and crossed-line systems. Ultimately, it grants the EINSTAR 2 a versatile scanning capability comparable to that of scanners equipped with multiple dedicated laser sources.



  • What is the object type and size EINSTAR 2 can scan?

    From tiny details (5mm) to large scenes (10m), EINSTAR 2 can handle it. It switches between two modes: the laser mode for small to medium objects and the infrared mode for large object and expansive areas. This flexibility allows it to tackle most materials lik eblack or reflective surfaces.

  • What is the battery life?

    It features a chargeable battery with up to 3 hours of runtime.There are two batteries and one charger for battery, which means you can use one battery and charge another at the same time, scanning without power anxiety.
