FreeScan Combo

Hybrid Light Source and Multifunctional Handheld 3D Scanner

▪ Light Source                Blue Laser + Infrared VCSEL


Accuracy                      Up to 0.02 mm


▪ Weight                          620g


▪ Compact Size              193mm x 63mm x53mm

Features

The FreeScan Combo, with a small size of 193x63x53mm and weighed only 620g, has dual light sources: blue laser and infrared VCSEL. Being a lightweight and portable metrology scanner, it is equipped with four working modes: multiple lines scanning, single line scanning, fine scanning, infrared scanning.

The FreeScan Combo, with a small size of 193x63x53mm and weighed only 620g, has dual light sources: blue laser and infrared VCSEL.

4 scanning modes, multiple scan choices

· 13 cross blue laser lines for global smooth scanning;
· 7 parallel blue laser lines for fine scanning details;
· 1 single blue laser lines to obtain deep hole data;
· Infrared light source and large FOV for more applications.

Metrology-grade accuracy*, the accuracy under the multiple lines scanning mode can achieve up to 0.02mm.

01 Features

The FreeScan Combo, with a small size 0f 193x63x53mm and weighed only 620g, has dual light sources: blue laser and infrared VCSEL. Being a lightweight and portable metrology scanner, it is eiqupped with four working modes: multiple lines scanning, single line scanning, fine scanning, infrared scanning.
The FreeScan Combo, with a small size of 193x63x53mm and
weighed only 620g, has dual light sources: blue laser and infrared VCSEL.
4 scanning modes, multiple scan choices

· 13 cross blue laser lines for global smooth scanning;
· 7 parallel blue laser lines for fine scanning details;
· 1 single blue laser lines to obtain deep hole data;
· Infrared light source and large FOV for more applications.
Metrology-grade accuracy*, the accuracy under the multiple lines scanning mode can achieve up to 0.02mm.

Applications

FreeScan Combo can be used to achieve metrology-level precision inspection, reverse design, additive manufacturing, and other applications in many manufacturing sectors, including the automotive industries, aerospace, rail transportation, heavy industries, mold manufacturing, casting and foundry and medical industries.

02 Aplication

FreeScan Combo can be used to achieve metrology-level precision inspection, reverse design, additive manufacturing, and other applications in many manufacturing sectors, including the automotive industries, aerospace, rail transportation, heavy industries, mold manufacturing, casting and foundry and medical industries.

Specification

With its blue laser and infrared VCSEL light sources, FreeScan Combo metrology 3D scanner will help you achieve greater efficiency, productivity, and profitability. It has metrology-grade accuracy and the accuracy under the fine mode up to 0.02mm.

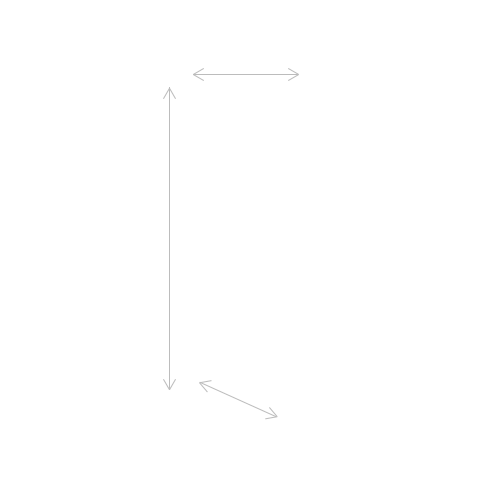

Length: 63mm

Laser Scan

Length: 63mm

Length: 63mm

Scan mode

Multiple Lines Scan

Single Lines Scan

Fine Scan

Infrared Scan

Light Source

26 laser lines

Single laser line

7 parallel
laser lines

VCSEL Light
Source

Working
Distance

300 mm

300 mm

200 mm

300 mm

Scan Speed

1,860,000 points/s

2,250,000 points/s

Dimension

Laser Scan

Infrared Scan

Scan Accuracy

Up to 0.02mm

/

Volumetric Accuracy*

0.02 + 0.033 mm/m

0.05+0.1mm/m

Scan Depth

360 mm

Maximum 1240 mm

Max FOV

520 mm x 510 mm

600mm x 600 mm

Point Distance

0.05 mm-10mm

0.1mm - 3mm

Laser Class

Laser Class

Class Ⅱ (eye safe)

2,250,000 points/s

Connection Standart

USB 3.0

/

Power Input

12V , 5.0A

/

Working Temperature

-20 ~ 40℃

/

Working Humidity

10 ~ 90%

200-1240 mm

Certification

CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50

200-1240 mm

Recommended Computer
Configuration

OS: Win10/11, 64bit; Graphics Card: NVIDIA GTX/RTX series cards, higher or equal to GeForce RTX 3060; Video memory : ≥ 6G; Proccesor: I7-10700; Memory: ≥ 32GB

430mm x 430 mm

Specification

With its blue laser and infrared VCSEL light sources, FreeScan Combo metrology 3D scanner will help you achieve greater efficiency, productivity, and profitability. It has metrology-grade accuracy and the accuracy under the fine mode up to 0.02 mm.

Scan mode

Light Source

Working
Distance

Scan Speed

Multiple Lines Scan

26 laser lines

300 mm

Scan mode

Single Lines Scan

Single laser line

300 mm

1,860,000 points/s

Fine Scan

7 parallel
laser lines

200 mm

Scan mode

Infrared Scan

VCSEL Light
Source

300 mm

2,250,000 points/s

Scan Accuracy

Up to 0.02mm

/

Volumetric Accuracy*

0.02 + 0.033 mm/m

0.05+0.1mm/m

Scan Depth

360 mm

Maximum 1240 mm

Max FOV

520 mm x 510 mm

600 mm x 600 mm

Scan mode

Point Distance

0.05 mm-3mm

0.1mm – 3mm

Laser Class

Class Ⅱ (eye safe)

2,250,000 points/s

Connection Standart

USB 3.0

Power Input

12V , 5.0A

Working Temperature

-20 ~ 40℃

Working Humidity

10 ~ 90%

Certification

CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50

Recommended Computer
Configuration

OS: Win10/11, 64bit; Graphics Card: NVIDIA GTX/RTX series cards, higher or equal to GeForce RTX 3060; Video memory : ≥ 6G; Proccesor: I7-10700; Memory: ≥ 32GB

2,250,000 points/s
