EinScan H2

Hybrid LED & Infrared Light Source Handheld 3D Scanner

  • 5MP texture camera
  • 3 VCSEL projectors
  • Accuracy up to 0.05 mm
  • FOV up to 780 x 900mm

Handheld 3D Scanner With High-Resolution Texture

The EinScan H2 builds on its predecessor with a 5MP texture camera, improved accuracy, and three infrared VCSEL projectors, delivering more photorealistic textures and higher-quality data.
Hybrid Light Source

Hybrid Light Source

Photorealistic Texture

Photorealistic Texture

 High-Quality Data

High-Quality Data

Ultra-Wide FOV

Ultra-Wide FOV

Optimized for Face & Body 3D Scan

Optimized for Face & Body 3D Scan

User-Friendly Design

User-Friendly Design

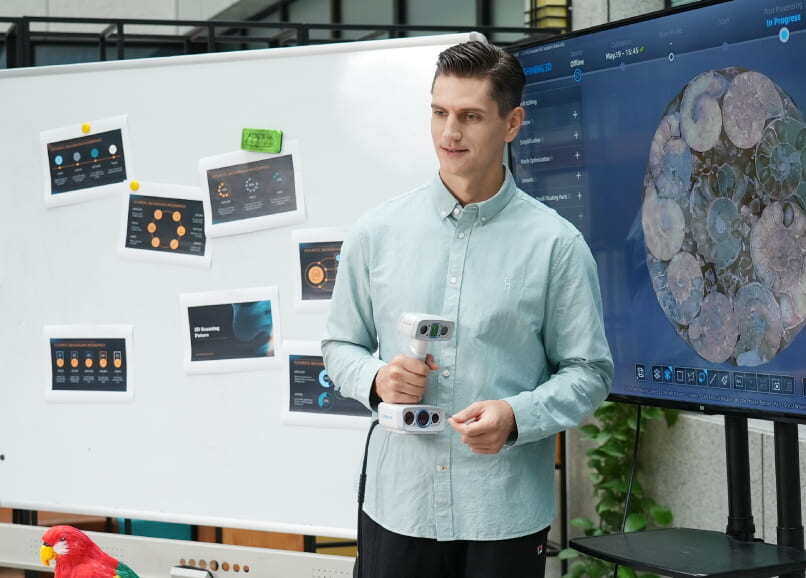

EinScan H2 hybrid light source 3D scanner

Hybrid Light Source

The EinScan H2 combines structured light and infrared technology, making it versatile for a wide range of scanning scenarios. It captures the intricate details of complex surfaces and dark materials with precision.

  • LED light enables fast 3D scanning with accurate, high-quality data.
  • Infrared VCSEL is ideal for capturing dark surfaces, the human body, and objects in bright-lit environments.

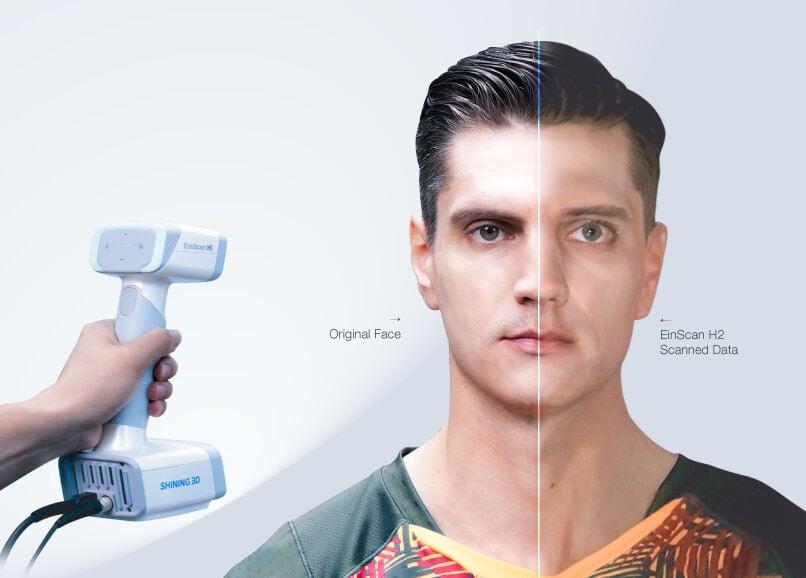

Face 3D scanner EinScan H2

Photorealistic Texture

Equipped with a 5MP color camera, the EinScan H2 captures vibrant colors and detailed textures, combining them with precise 3D geometry to produce photorealistic 3D models. It's an ideal 3D scanner for cultural heritage preservation, art restoration, digital archiving, and other applications requiring high-quality textures.

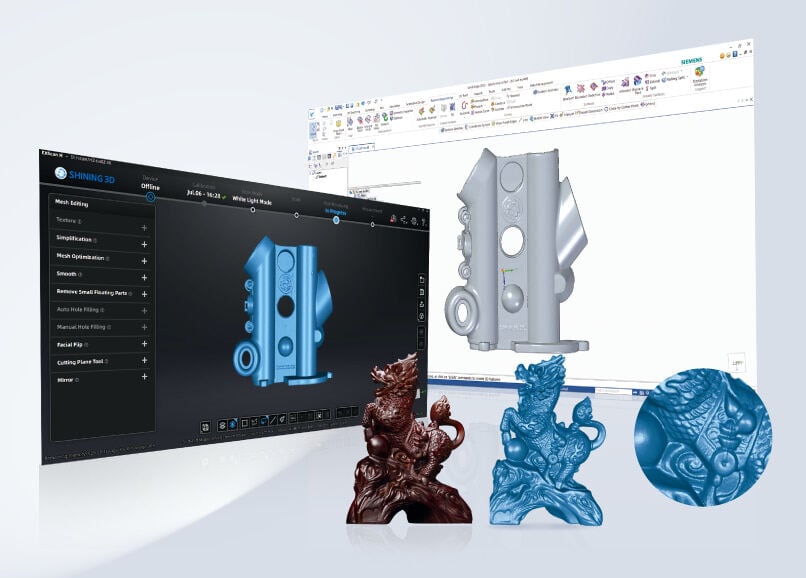

EinScan software rich details

High-Quality Data

The LED light modes enable fast 3D scanning with high precision, delivering data with an accuracy of up to 0.05mm—ideal for applications such as reverse engineering. The infrared light mode simplifies the scanning of dark surfaces, ensuring complete and high-quality results even in difficult conditions
Wide FOV adjustable

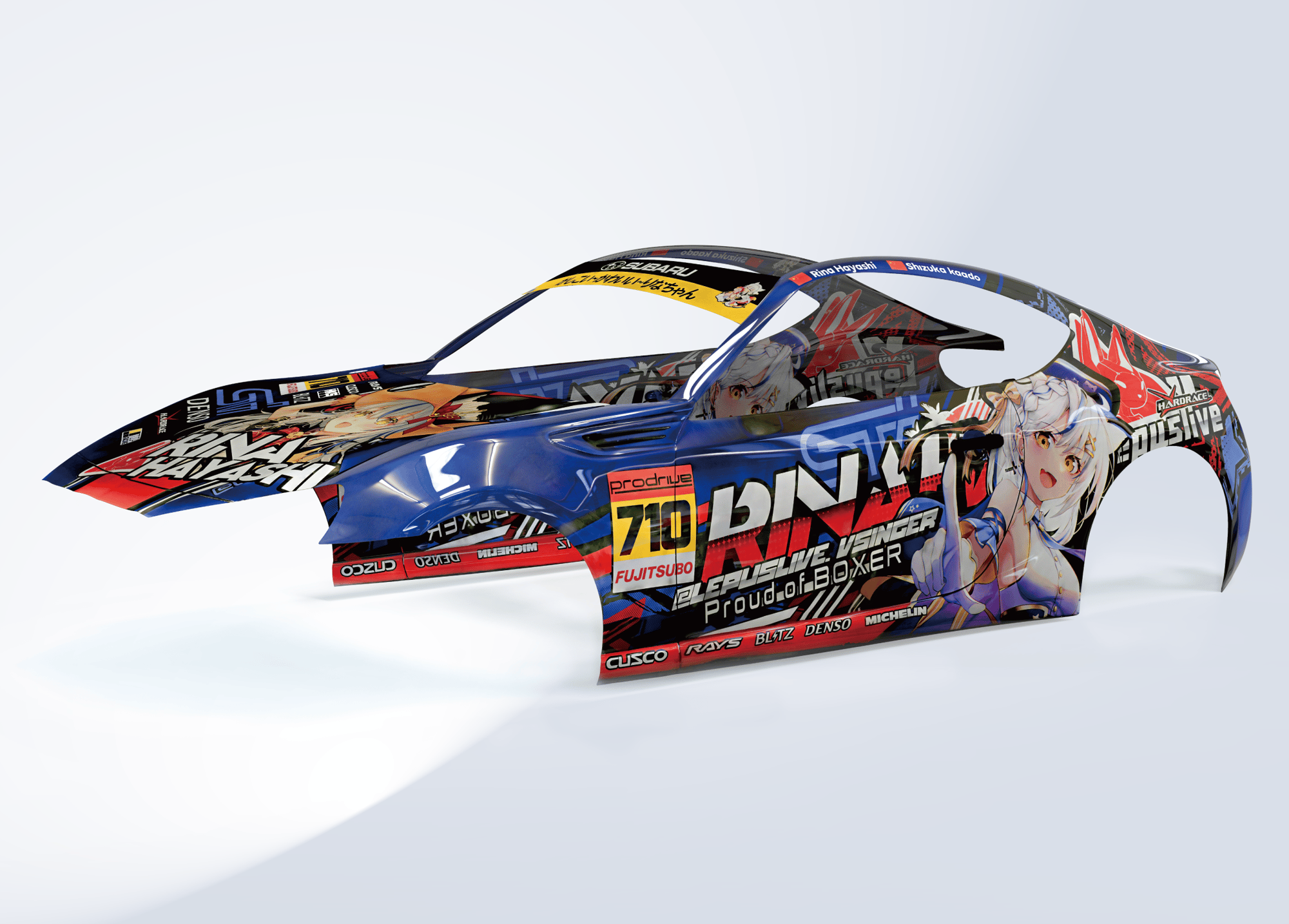

Versatile, Marker-Free Scanning

The working distance adjusts from 200 mm to 1500 mm, making it versatile for both narrow and wide scenes, as well as objects of varying sizes. Its wide field of view, up to 780 x 900 mm, enables quick and efficient capture of large objects. Additionally, the marker-free scanning feature simplifies the process by using rich geometric features, eliminating the need for markers.

EinScan software rich details

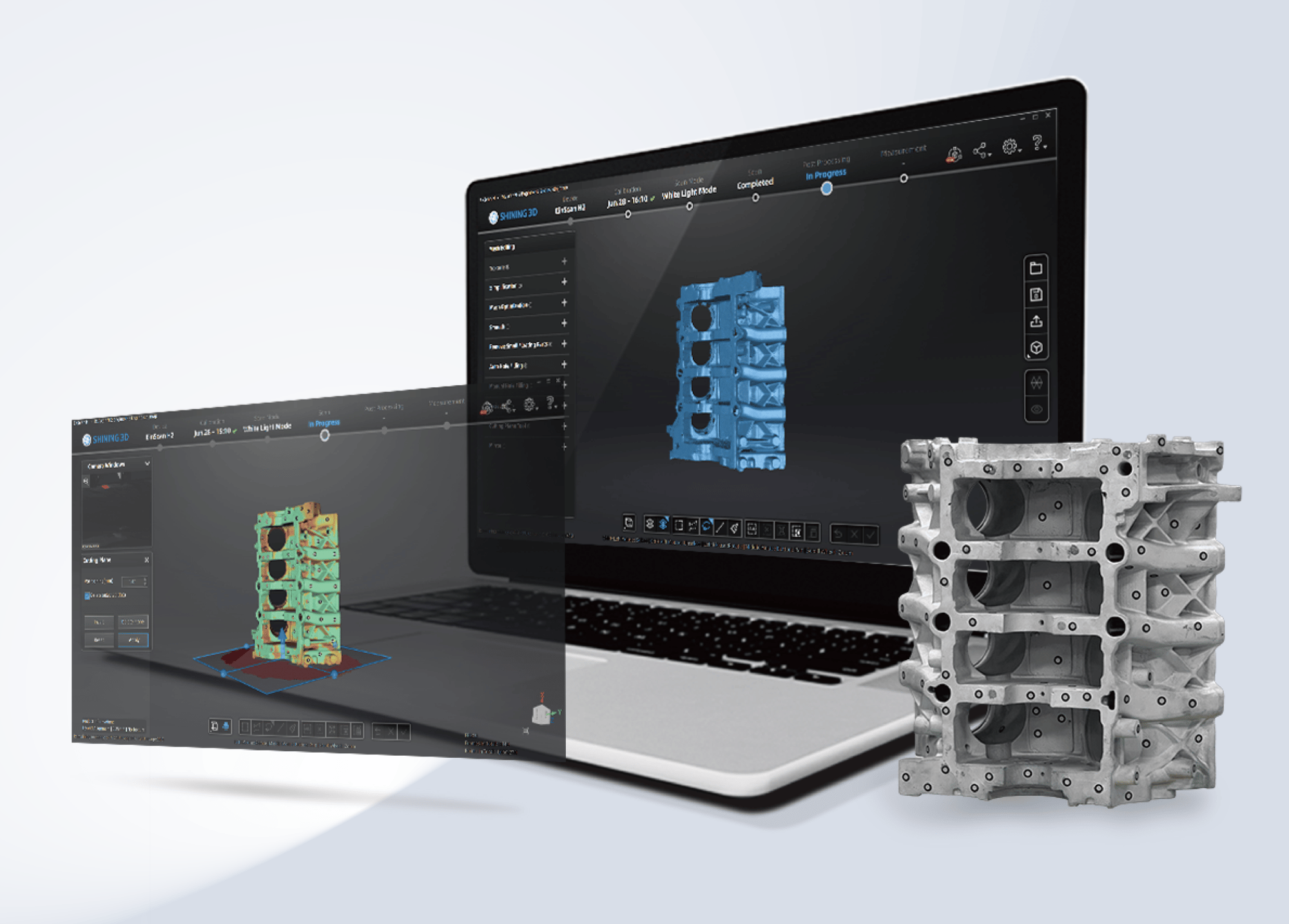

User-Friendly Software

The EinScan H2 provides a professional yet easy-to-use 3D scanning interface. It includes powerful post-processing tools, such as alignment, merging, and mesh editing, to ensure a smooth workflow from scan to finished model.

FootStation 2 add-on EinScan H2

FootStation 2 Add-On

The optional FootStation 2 streamlines and accelerates foot scanning by capturing instep and sole data simultaneously using a mirror, with automatic alignment to save time. It is ideal for applications in foot orthopedics and the custom footwear industry.
Develop Your Own Scanning App with EinScan H2 SDK

Develop Your Own Scanning App with EinScan H2 SDK

The EinScan H2 SDK is open for full customization, giving you the tools to tap into advanced 3D scanning capabilities. Build efficient, tailored solutions for a wide range of applications, perfectly suited to your specific needs. Contact us for more information.





EXScan H Software

Your EinScan H2 comes with access to our powerful, easy-to-use, and continuously updated EinScan software. Scan as much as you want, all year long, with no hidden fees or extra costs.

Step-By-Step Guidance

Step-By-Step Guidance

EXScan H software guides you through the 3D scanning process, from calibration to 3D scanning and data editing. The software is easy to navigate for beginners and experts alike.

Multiple Scan Modes

Multiple Scan Modes

EXScan H supports multiple scan modes, such as white light scan, IR scan Portrait, and IR scan Object. It allows you to easily choose the most suitable option for each project.

Color and Texture Capture

Color and Texture Capture

Leveraging the scanner's 5MP color cameras, EXScan H generates high-resolution color and texture. The software also includes texture alignment, particularly helpful for objects that are colorful but with limited geometric detail.

Optimized for Face and Body 3D Scanning

Optimized for Face and Body 3D Scanning

The advanced hair enhancement algorithm efficiently captures both light and dark hair, while the non-rigid algorithm in IR mode captures 3D body data while auto-compensating for slight movements, eliminating misalignment risks.

EinScan H2 Tech Specs

  • Accuracy Up to 0.05 mm (LED mode)
  • Point Distance 0.2 ~ 3mm
  • Scan Speed Up to 1,200,000 points/s
  • Maximum FOV Up to 780 x 900 mm (IR mode)
  • Light Source White LED / Infrared VCSEL (invisible)
  • Align Modes Global Markers / Feature / Hybrid / Texture

Our Expertise, Your Advantage

20

years of experience

400

patents

100

3D scanners sold Worldwide

  • Vision Miner

    "Though the EinScan H2 retains the iconic pearlescent white body of its predecessor, its prowess lies within! From an advanced color texture capturing ability to its vast field of view (780 by 900 millimeters), the EinScan H2 ensures you capture more, and you capture it better."

    Robert Lent,

    COO @ Vision Miner

  • H2 -2

    "EinScan H2 is a very good tool for mechanical designs and mechanical engineering and reverse engineering."

    Stian Marthinsen,

    Engineer, 3D Designer @ cadworks.no

  • H2-1

    "EinScan H2 has significantly improved my workflow. I get more consistent results and instant feedback on the screen. That’s what I like– you know what you’re getting while working."

    Joakim Målare,

    Founder @ nioform



Frequently Asked Questions

  • What are the main applications of the EinScan H2?

    The EinScan H2 is ideal for applications such as art and cultural heritage preservation, forensics, virtual displays, orthopedics, and prosthetics.

  • Can the EinScan H2 perform fixed scanning?

    No, the EinScan H2 is designed exclusively for handheld scanning, best suited for medium to large objects and capturing color. For optimal results, objects around 30 cm in size are recommended.

  • How does body scanning with the EinScan H2 compare to the EinScan Pro series?

    The EinScan H2 offers a larger scanning range and improved alignment, making human body scanning faster and easier compared to the EinScan Pro series. It also uses infrared light for better scanning of dark objects and hair.

  • Does the EinScan H2 capture color data?

    Yes, the EinScan H2 features a built-in color camera that can capture full-color data during scanning.
  • What is the recommended computer setup for using the EinScan H2?

    Recommended specifications: Windows 10 (64-bit), NVIDIA GTX1080 or higher, video memory of 4GB or more, Intel i7-8700 processor, and at least 32GB of RAM.
  • What are the post-processing features available in ExScan H software?

    ExScan H software offers functions like data simplification, hole filling, smoothing, sharpening, measurement, object movement, and texture optimization.
