Triple Work Modes
Hybrid Light Sources
Marker-Free Laser Scanning
Full-Wireless Workflow
Powerful Hardware
Dynamic Laser Switching

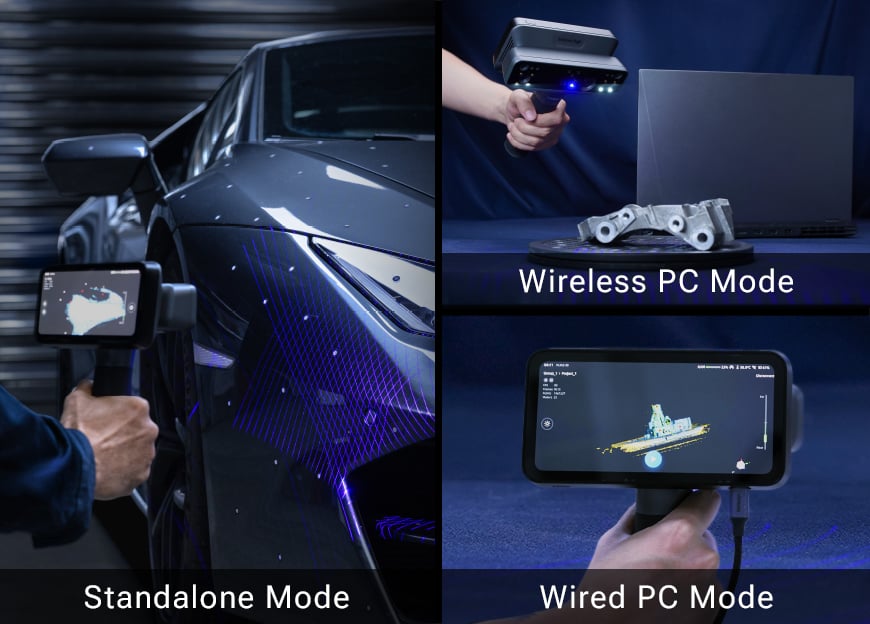

Triple Work Modes
The EinScan Rigil Series offers three operation modes to unlock max performance and flexibility.
-

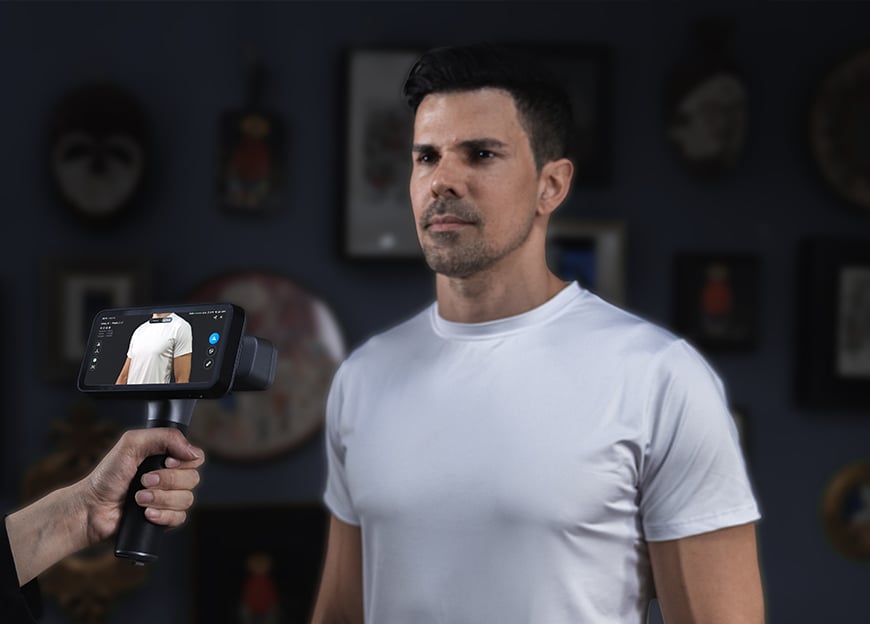

Standalone Mode: No PC connection required, all scanning and processing tasks are completed directly on the hardware.
-
Wireless PC Mode: Leveraging built-in Wi-Fi 6, enables seamless wireless scanning and allows connection to a powerful computer, optimizing performance for complex tasks and large data volumes.
- Wired PC Mode: Maintaining availability, maximum scanning speed, and data volume in complex network environments.

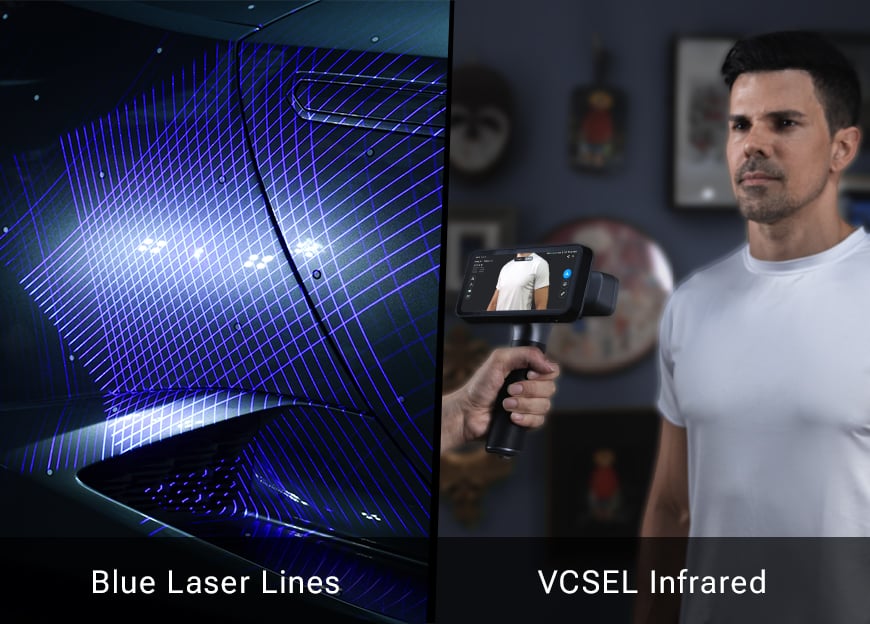

Hybrid Light Source
- Blue laser lines
- VCSEL infrared

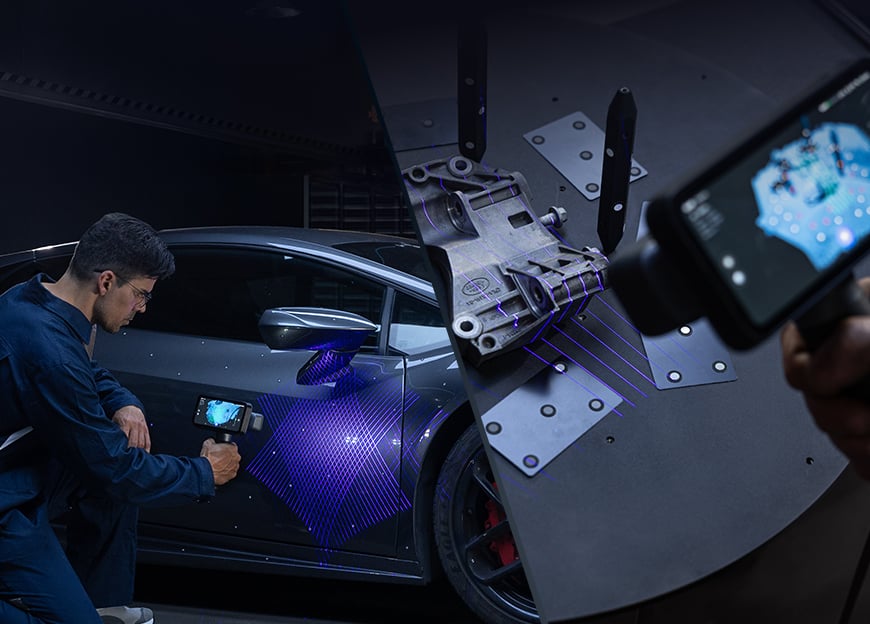

Laser HD Mode
Provides high-quality models with up to 0.04 + 0.06 mm/m volumetric accuracy and high geometric resolution up to 0.05mm.
- 25 + 25 crossed laser lines (Rigil) / 17 + 17 crossed laser lines (Rigil Lite): for high speed scanning, delivers top-tier efficiency and flexibility.
- 7 parallel laser lines: for fine details, provides consistent results.
Dynamic Laser Switching
IR Rapid Mode
- Volumetric accuracy up to 0.1 + 0.3 mm/m
- Working distance 160 ~ 1500 mm
- Scanning speed up to 16,000,000 points/s
Marker-Free Laser Scanning

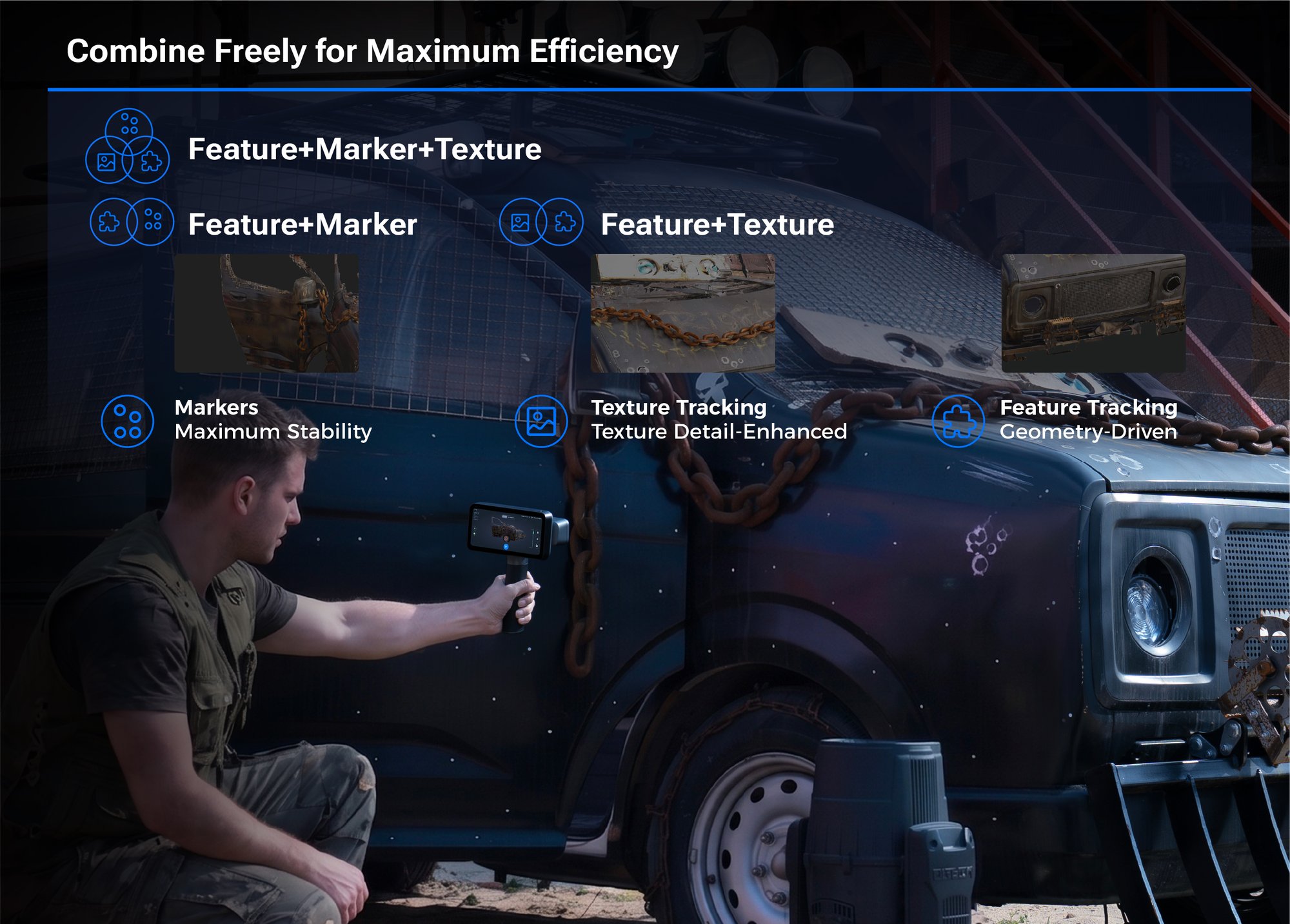

Advanced Multi-Tracking Mode (IR & Laser)
Combine freely for maximum efficiency
- IR Mode: Feature / Marker / Texture (freely combinable) / Global Markers
- Laser Mode: Feature / Marker / Global Markers

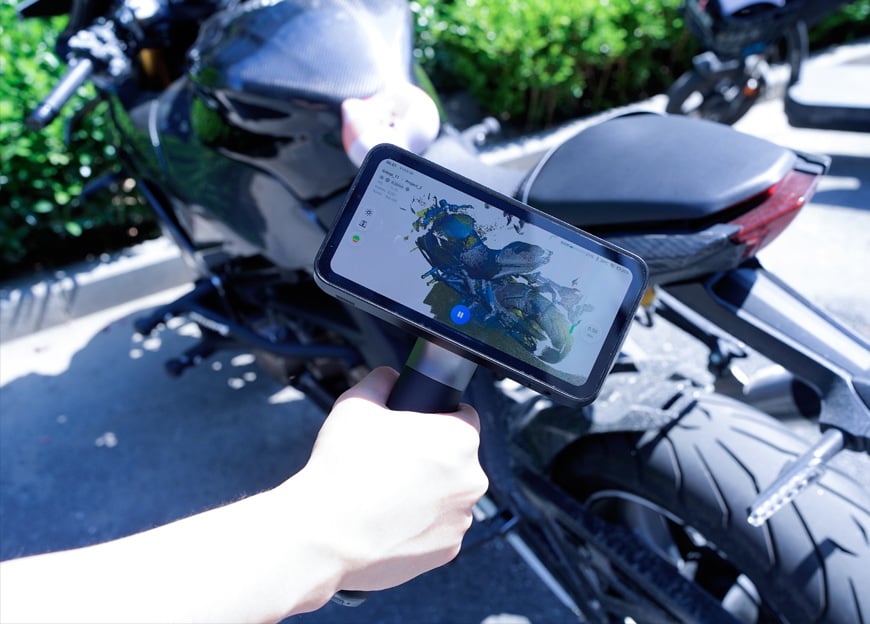

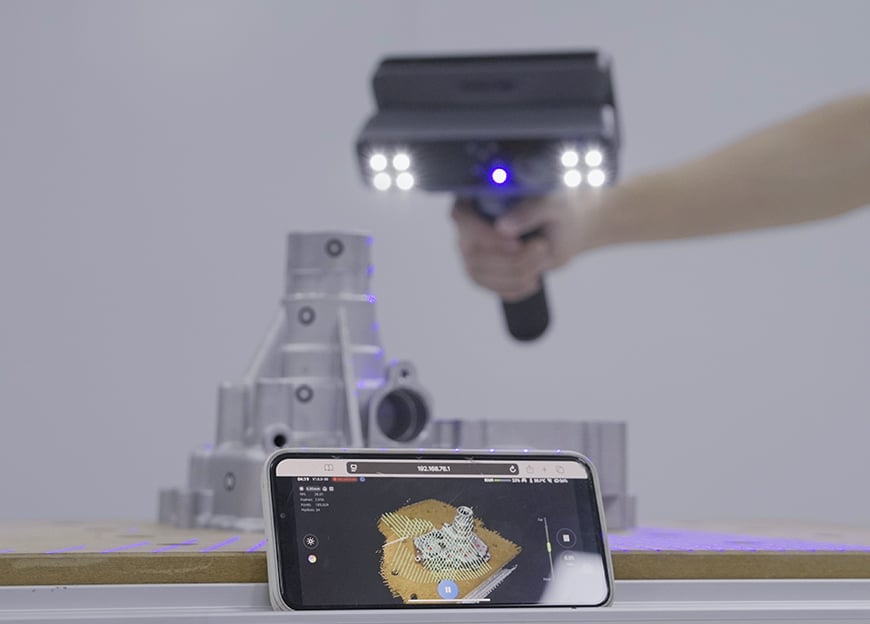

Wireless Workflow
- Wireless scanning: Without connecting to PC
- Wireless transfer: Data sharing to SHINING 3D Cloud
- Wireless screen casting: Display on a second screen

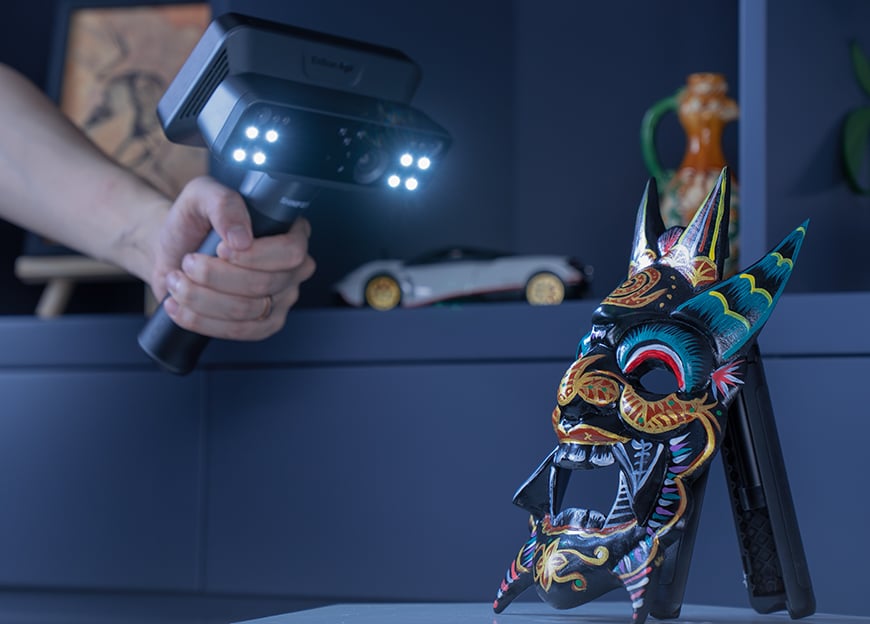

Full Color Texture Scanning
Reliable Scanning from Workshop to Outdoors
- Working efficiently in sunlight outdoors.
- Adaptable for dark and reflective metal surfaces without spray.
Powerful Hardware
- 6.4'' 2K AMOLED
- 32GB LPDDR5
- 64GB eMMC + 1TB SSD ROM
- 5500mAh × 2 Replaceable Batteries

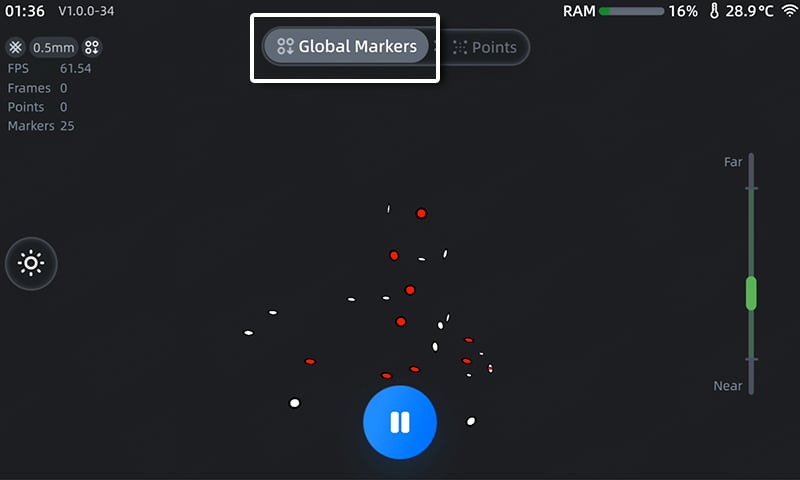

Global Marker Alignment

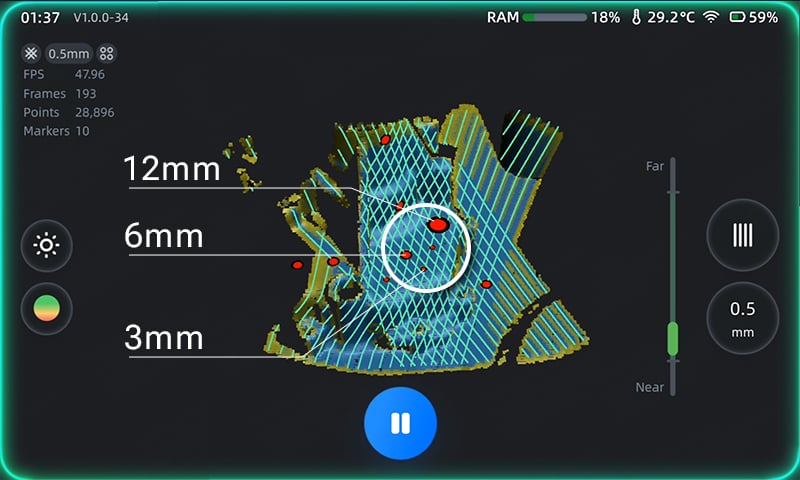

Multiple Types of Marker Supported 3/6/12 mm

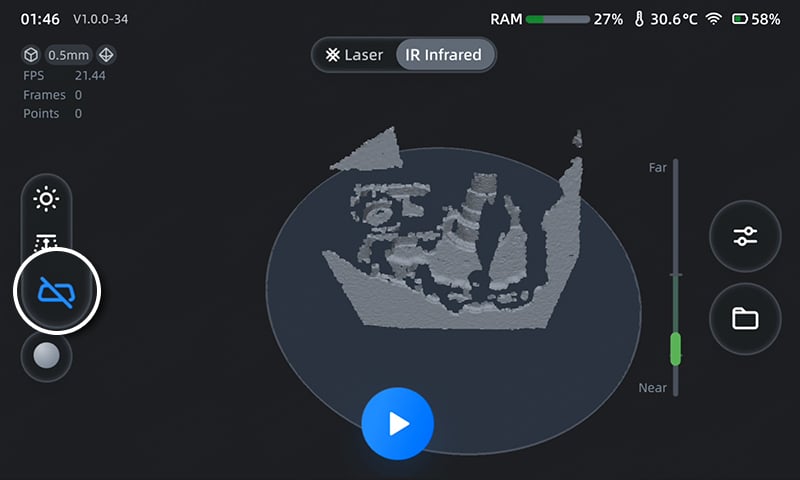

Auto Detecting Plane

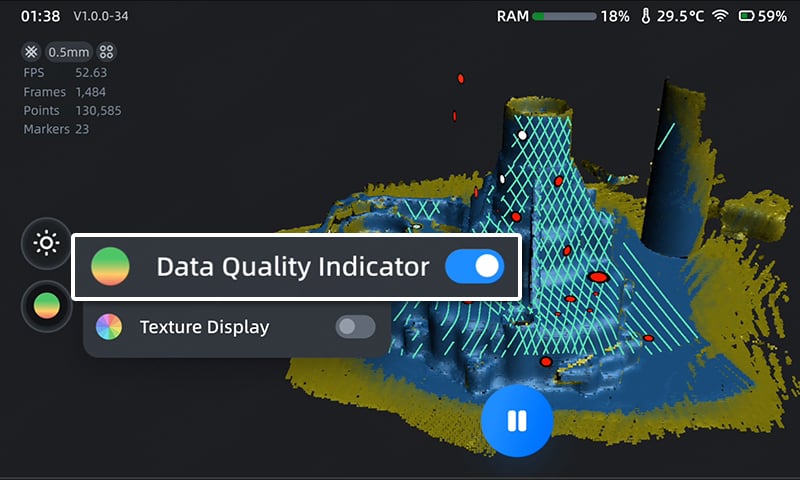

Data Quality Indicator

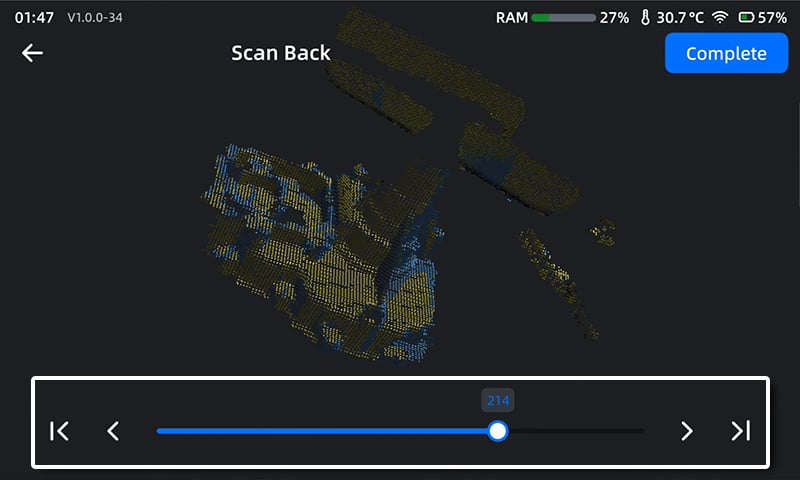

Scan Rewind

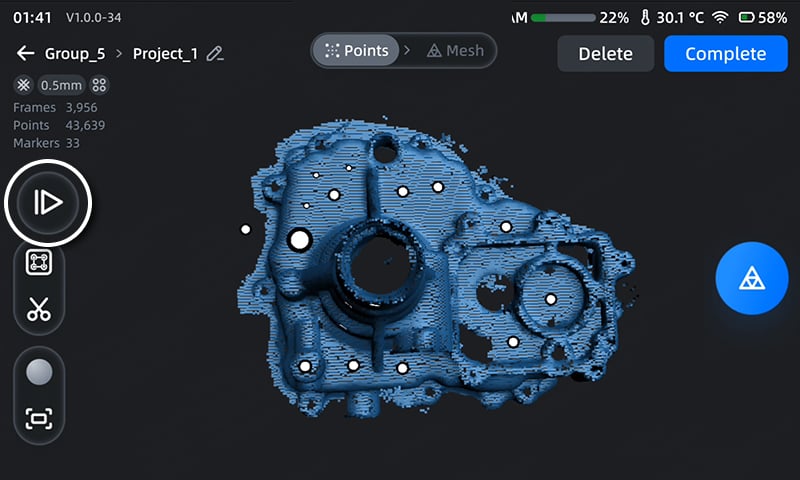

Resume Edited Data Scanning

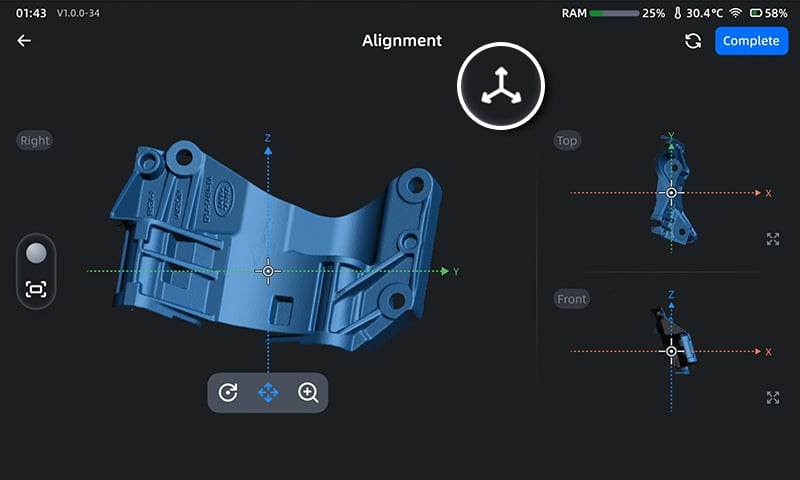

X-Y-Z System Alignment

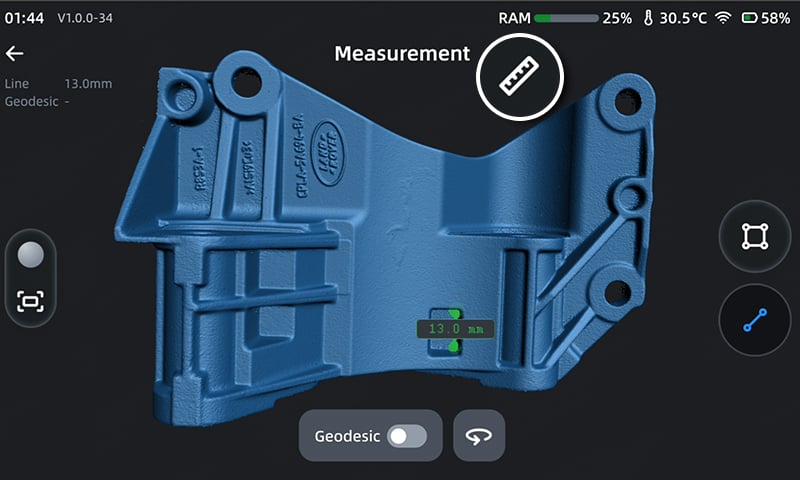

Model Measurement

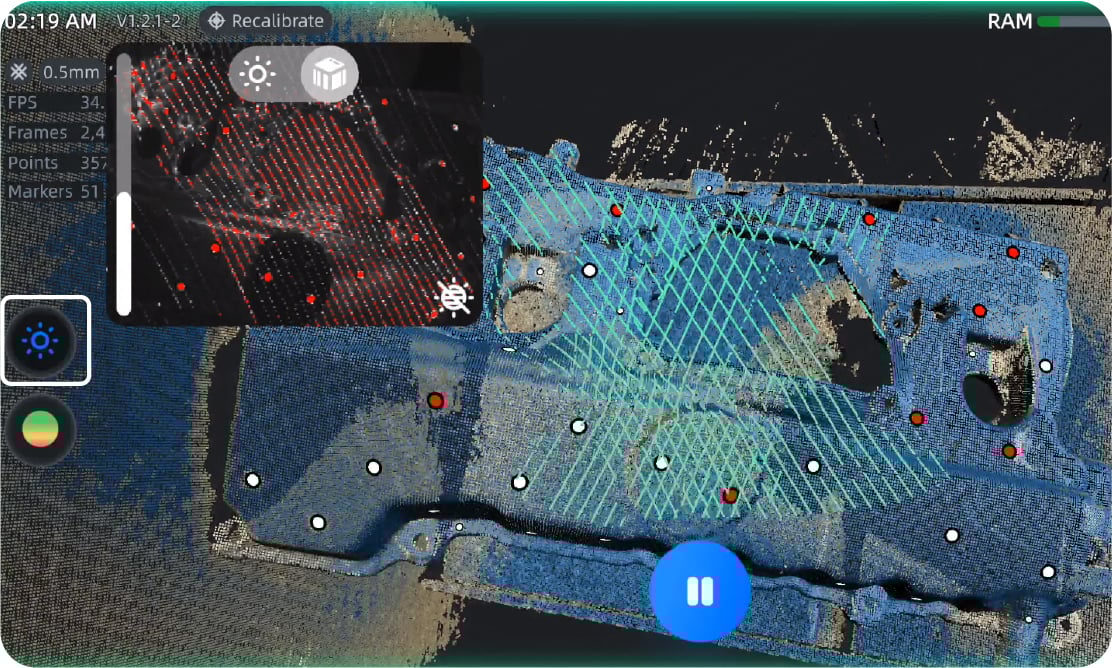

Scene-Adaptive Scanning
_02_PC.jpg?width=1112&height=668&name=Rigilv1.2_Web_Advanced%20Hybrid%20Tracking%20(4%20Modes)_02_PC.jpg){kind=tracking}

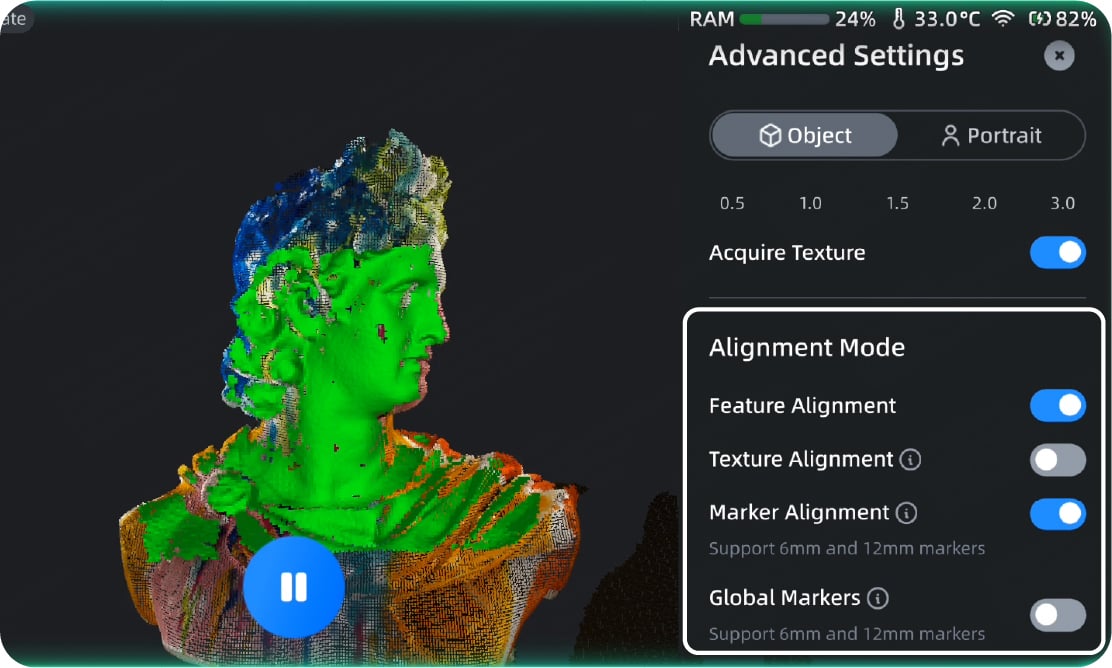

Advanced Hybrid Tracking (4 Modes)

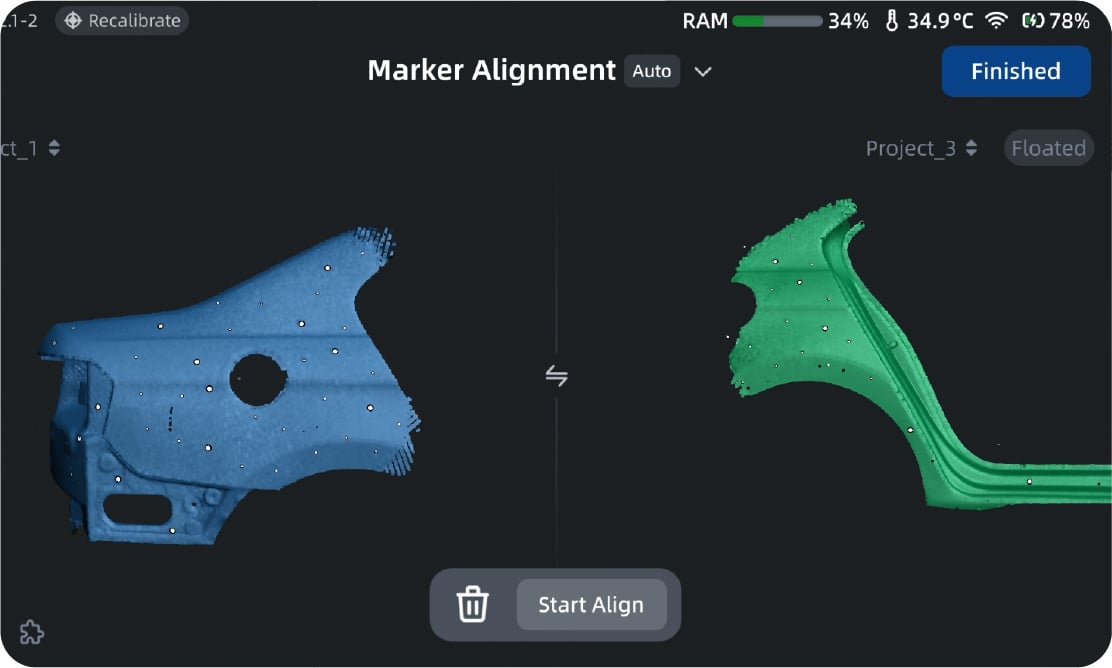

Multi-project Alignment in Standalone Mode

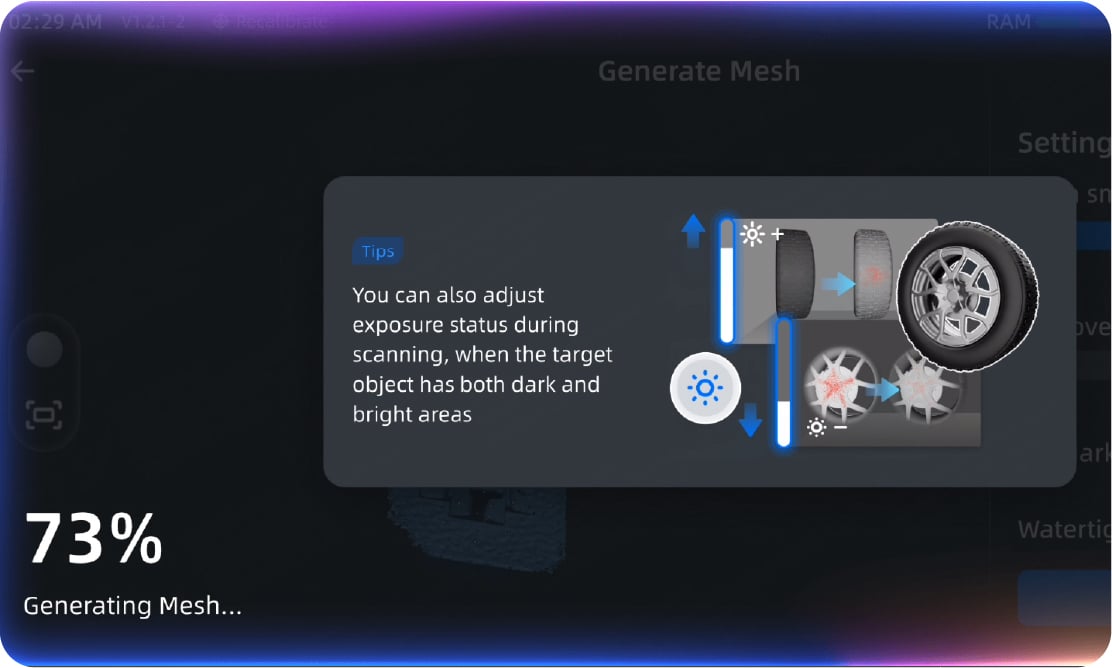

High-Efficiency Noise Reduction
Flexible Point Clouds Editing
Rich Mesh Editing Functions
U-Drive Mode Innovation

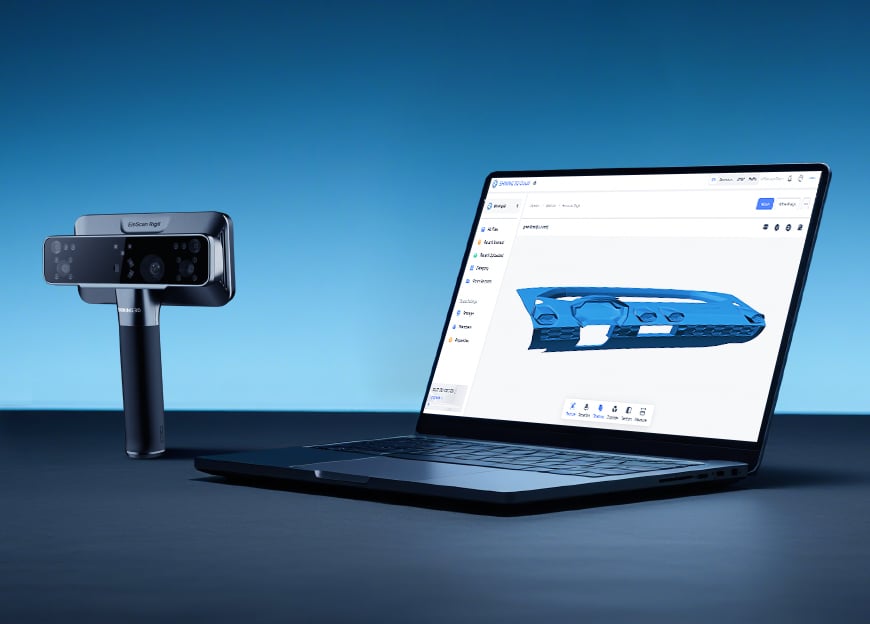

SHINING 3D Cloud Sharing

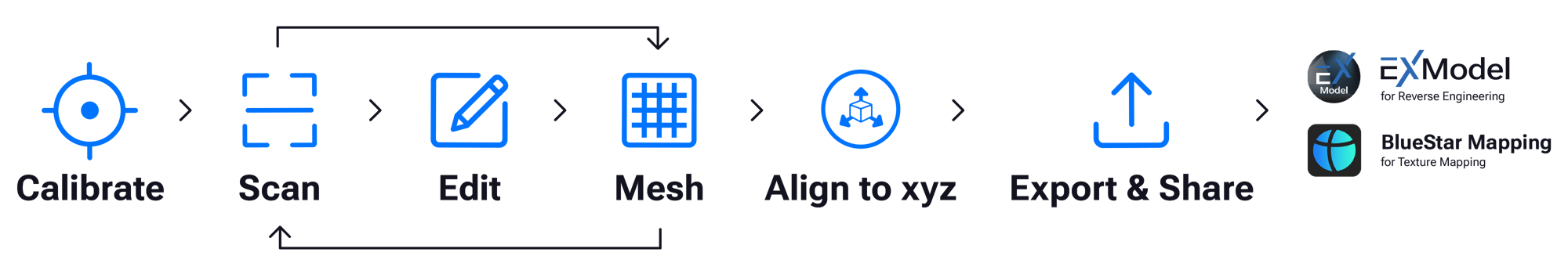

EXScan Rigil Software
EXScan Rigil is a dedicated PC software for the full spectrum of advanced professional scanning workflows, which provides rich post-processing and mesh editing functions for model cleanup and better integration to 3D design workflow
Cutting Plane Tool
The Cutting Plane Tool lets you easily cut and clean up 3D models by drawing a line, automatically repairing the mesh and aligning coordinates as needed.
Mirror
The Mirror tool quickly makes a symmetrical copy of your 3D mesh for efficient design, repair, or reverse engineering.
Flip Normal
The Flip Normal tool corrects inverted surfaces so 3D models display properly.
Remove Small Floating Parts
This tool automatically removes small noise fragments from scan data, making mesh cleanup easy for 3D printing or reverse engineering.
-
