EinScan Rigil Launched: The World’s First Tri-Mode Laser 3D Scanner

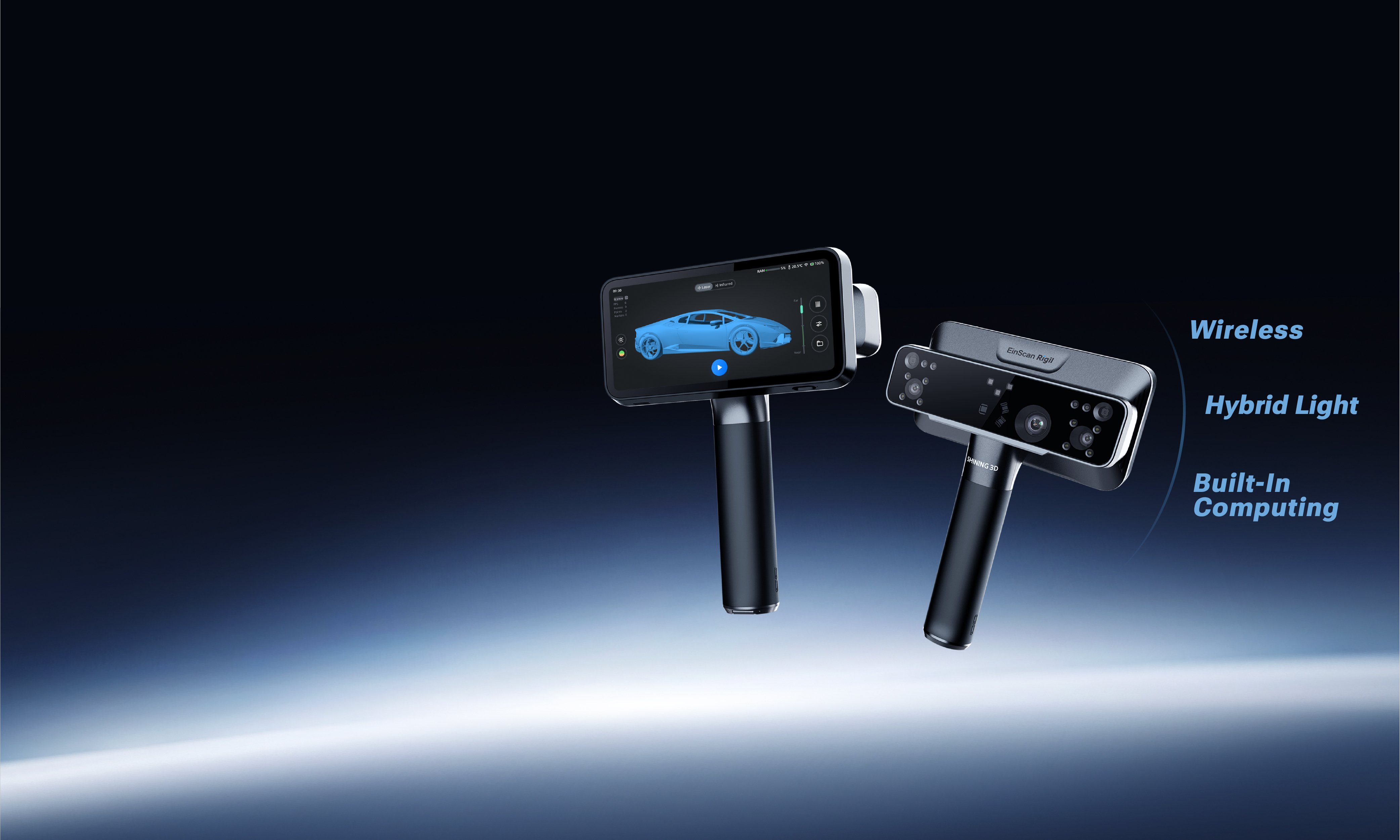

As a key contributor in the 3D digital technology field, SHINING 3D is committed to making high-end metrology-grade 3D scanning technology accessible to the prosumers. EinScan Rigil was born out of the continuous pursuit of high-quality 3D scanning solutions and ongoing attention to customer needs. It's the world’s first Tri-Mode 3D scanner with built-in computing, wireless solution and hybrid light technology. EinScan Rigil offers a fully integrated 3D scanning wireless workflow with triple work modes that effectively eliminates the traditional compromise between computing power and flexibility.

EinScan Rigil provides high-quality models with up to 0.04 + 0.06 mm/m volumetric accuracy and a high geometric resolution of up to 0.05 mm.

Triple Scan Modes: One Device, Three Professional Solutions

• 2 Blue Laser Scan Modes:

19+19 crossed laser lines for high-speed scanning, delivering top-tier efficiency and flexibility. 7 parallel laser lines for detailed scanning, providing consistent results with fine geometric details.  These 2 laser modes can switch during the scanning process, and respective data merged, to achieve efficiency and detail in one scanning project.

• IR Rapid Scan Mode

Utilize VCSEL infrared technology for marker-free scanning, adapting to rich tasks in a diversified working environment. It delivers high efficiency and wide coverage for medium to large objects, with eye-safe portrait scanning capabilities.

Triple Work Modes:  Unlock MAX Performance and Flexibility

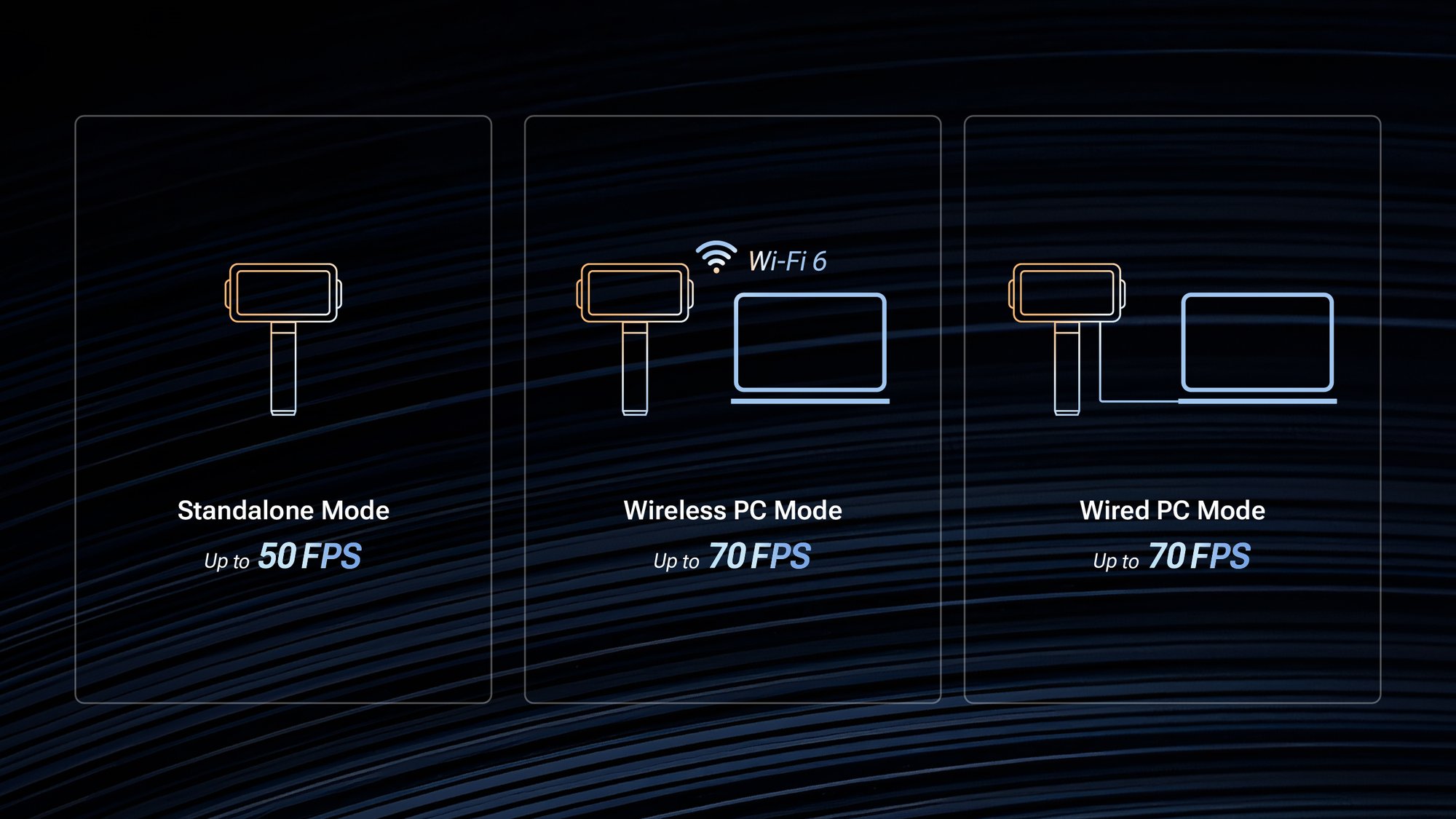

As the world’s first Tri-mode laser 3D Scanner, EinScan Rigil offers three operating modes:

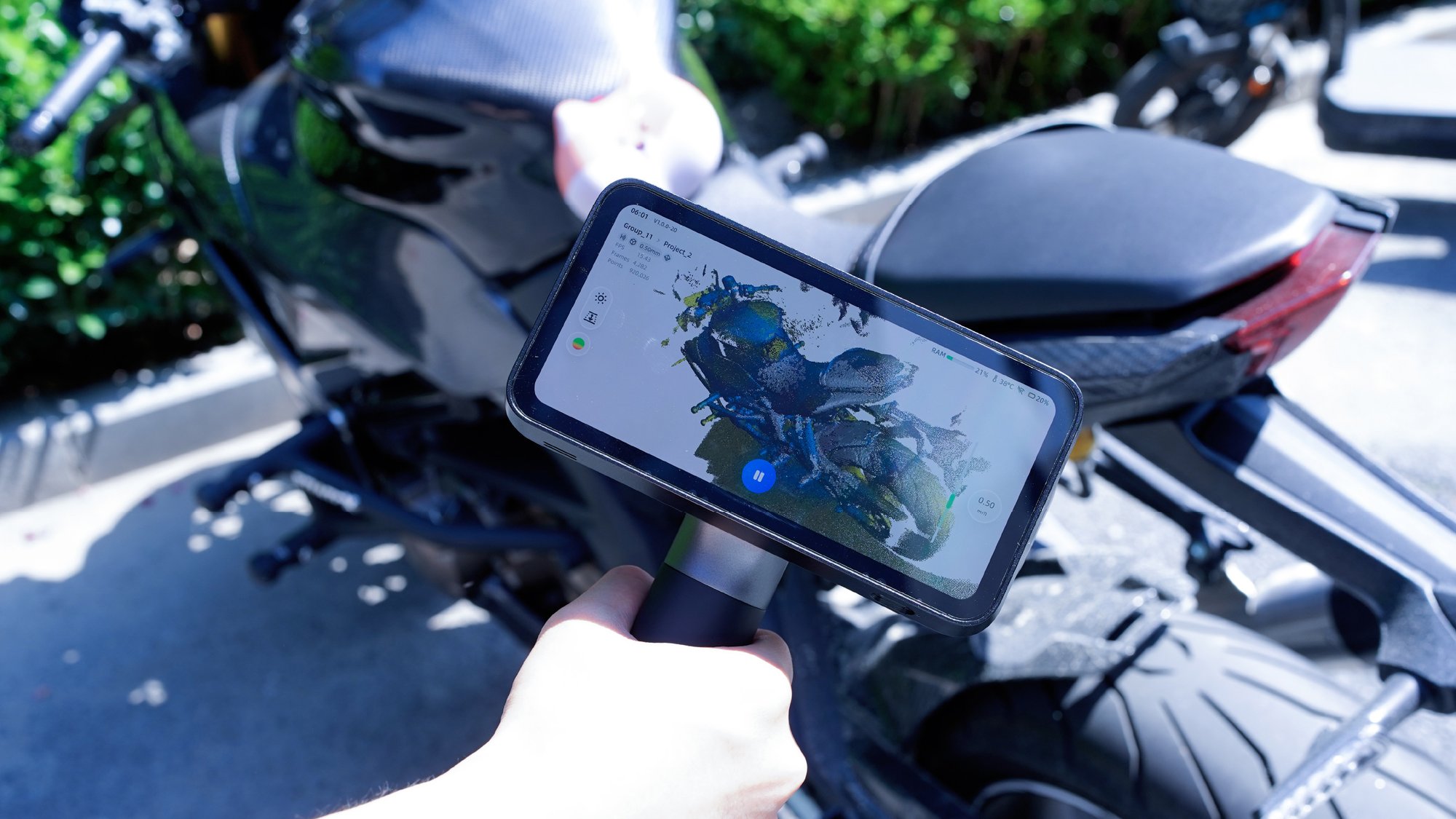

• Standalone Mode

No need to connect a PC, all scanning and processing tasks are completed directly on the hardware, delivering exceptional portability and ease of use.

• Wireless PC Mode

Leveraging built-in Wi-Fi 6, this mode enables seamless wireless scanning and allows connection to a computer for maximum computing power, optimizing performance for complex tasks.

• Wired PC Mode

Connecting to a PC via cable, this mode maintains availability and maximum scan speed and data volume in complex network environments.

Marker-Free Laser Scanning

EinScan Rigil features a special tracking algorithm, providing a marker-free blue laser scan mode through a laser + IR hybrid scan mode. This enables better efficiency than traditional marker-based laser scans and better data quality than marker-free IR scans.

Working Efficiently in Sunlight Outdoors

Both Blue Laser and Infrared VCSEL projectors have strong environmental light adaptability, which ensures a smooth scanning experience under strong sunlight.
