Transcan C

An excellent choice for professionals in need of precise and high quality 3D models

  • High-Accuracy up to 0.035 mm
  • High-Resolution of 0.0375 mm
  • Dual Scan Range
  • 12MP Color Cameras

A Professional 3D Scanner for Diverse Industries

icon_placeholder

Dual Scan Range

12 MP Color Cameras

12 MP Color Cameras

Multi-Resolution Fusion

Multi-Resolution Fusion

Intelligent Operation

Intelligent Operation Ensures the Efficient Acquisition of 3D Data without Manual Intervention

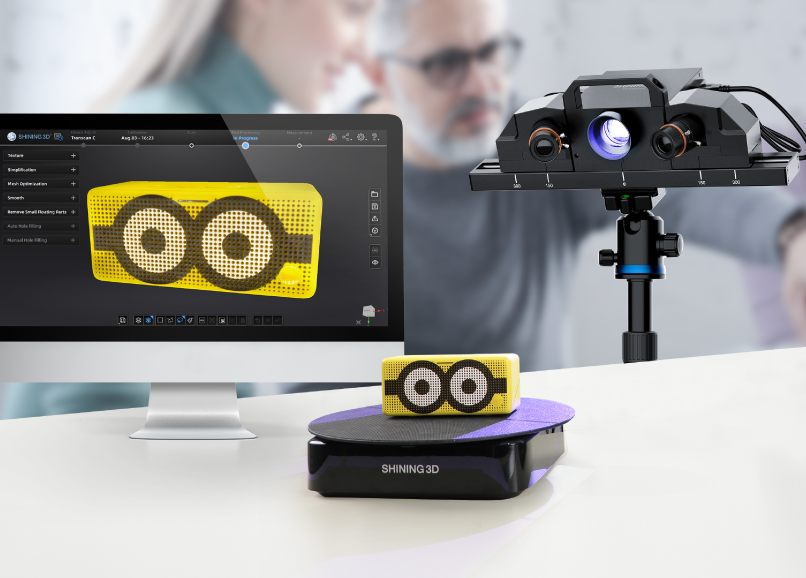

Dual Scan Range

Dual Scan Range

The slide-rail design enables an easy switch of the scanning range between 150 × 96 mm and 300 × 190 mm, meeting the needs of scanning objects of different sizes effectively.

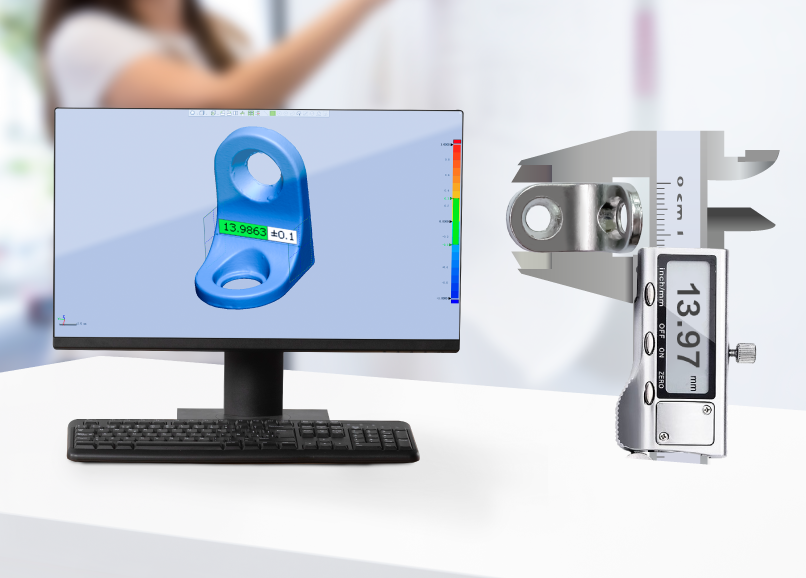

High-Accuracy Scan Data

High-Accuracy Scan Data

The compact design scanner produces a high accuracy of 0.035 mm at its inner position, and 0.05 mm at its outer position. These results are valuable for many measurement applications.

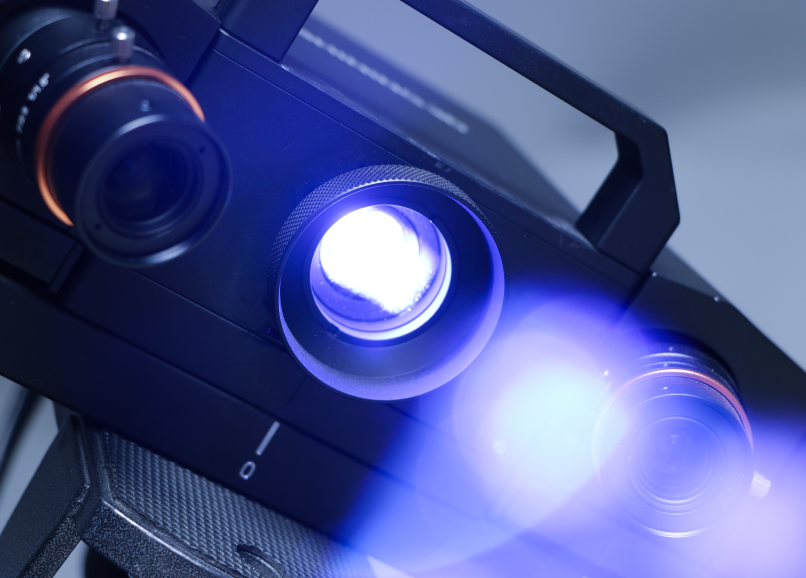

12 MP Color Cameras

12 MP Color Cameras

Two 12 MP professional color cameras are installed to capture a detailed 24-bit color map and replicate the authentic color of objects, which is ideal for capturing color 3D data for virtual display.

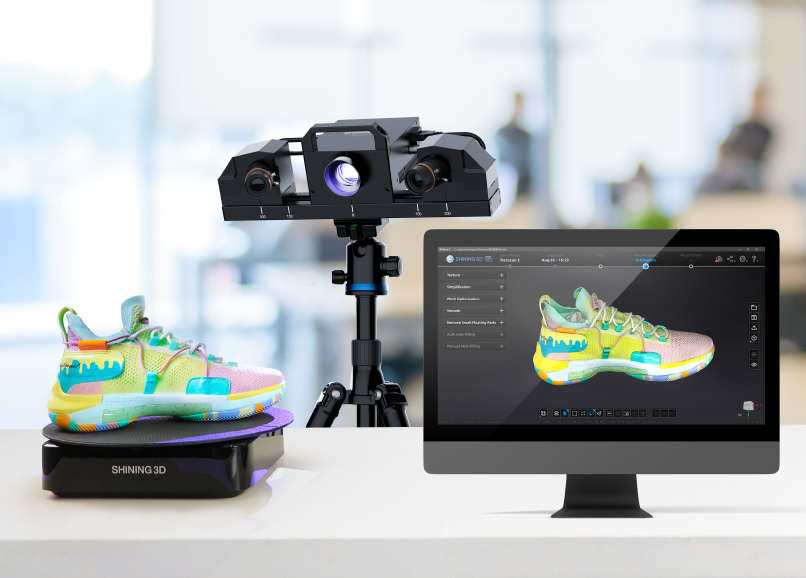

Intelligent Operation

Intelligent Operation

The scanning process is fully automatic with the turntable. Combined with the scanning software's stitching algorithm, this ensures the efficient acquisition of 3D data without manual intervention.





EXScan C Software

Transcan C comes with EXScan C which is designed to be user-friendly while offering powerful features for 3D scanning and post-processing.

Step-by-step Guidance

Step-by-step Guidance

EXScan C has an intuitive interface that simplifies the scanning process from calibration to 3D scanning and data editing.

Powerful Post-Processing Tools

Powerful Post-Processing Tools

EXScan C software has intelligent algorithms with a range of tools for cleaning, aligning, merging, and optimizing scans to create high-quality 3D models.

Multi-Resolution Fusion

Multi-Resolution Fusion

The Multi-Resolution Fusion Algorithm allows a mixture of 3 levels of resolution of high, medium, or low in one project for complex scanning tasks, which highly improves efficiency without duplication of work.

Compatible with Mainstream 3D Software

Compatible with Mainstream 3D Software

EXScan C software can export models of watertight and non-watertight  in various file formats, such as STL, OBJ and PLY, ensuring compatibility with the most popular 3D software in the market for further design.

Transcan C Tech Specs

  • Single Shot Accuracy Up to 0.035 mm
  • Point Distance Up to 0.0375 mm
  • Scan Speed Single shot <3s
  • Align Mode Markers / feature / manual
  • Maximum FOV 150 X 96mm / 300 X 190mm
  • Working Distance 260 mm / 480 mm

Global Brands Trust Us

20

years of experience

400

patents

100

3D scanners sold Worldwide



Frequently Asked Questions

  • Must use turntable to scan?

    No, Transcan C can be used with the complementary turntable for fully automated scanning, or it can scan without the turntable.

  • Can Transcan C scan large objects?

    Yes, but larger objects require longer scan time and post processing time. Fixed scanners are better for objects smaller than turntable size.



  • Is Transcan C able to output colored data?

    Yes. Just save the data as OBJ or PLY files.
  • PC configuration of Transcan C?

    Graphics card: NVIDIA GTX/RTX series cards, higher or equal to GeForce GTX 1060;
    Video memory: ≥4 G; Processor: I7-8700; Memory: 32 GB
  • What is the output format?

    OBJ, STL, ASC, PLY, 3MF



  • When do I need to calibrate the scanner?

    1. When using for the first time or after 1-2 weeks of inactivity.

    2. If the scanner has been severely shaken or vibrated, like during transport.

    3. If accuracy is significantly reduced, causing frequent alignment errors or unrecognized markers.

    4. If scanning data is incomplete or the quality has seriously deteriorated.
