FreeScan Omni

Standalone Inspection-Ready Metrology 3D Scanner

  • On-Scanner Scan-To-Inspect
  • Standalone & Wireless Design
  • PTB-Certified Inspection Module
  • Multi-Mode & High-Performance
Get a free demo

Inspect On the Move

FreeScan Omni redefines handheld 3D metrology with its on-scanner inspection capability and wireless, standalone design. From in-line production checks to metrology lab measurements and fieldwork on the go, FreeScan Omni delivers consistent performance wherever it's needed.
Wireless & Standalone

Wireless & Standalone

On-Scanner Scan-To-Inspect

On-Scanner Scan-To-Inspect

Certified Inspection Module

Certified Inspection Module

Metrology-Grade Accuracy

Metrology-Grade Accuracy

Integrated Video Photogrammetry

Integrated Video Photogrammetry

Blue Laser & IR VCSEL

Blue Laser & IR VCSEL

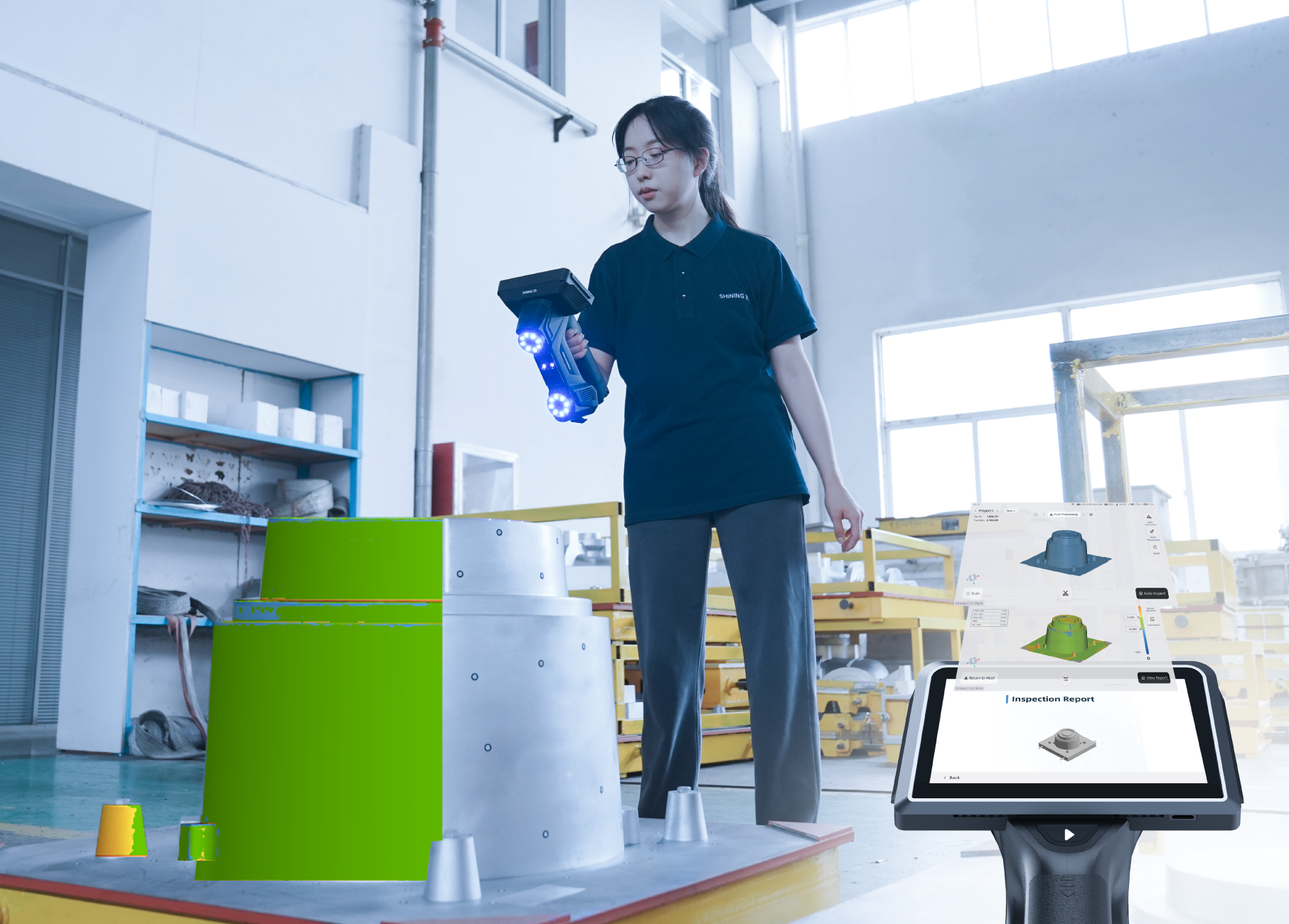

Metrology-Grade On-Scanner Inspection

Metrology-Grade On-Scanner Inspection

From scanning and meshing to inspection and reporting, every step is seamlessly completed right on the scanner. With preset templates and an intuitive interface, frontline staff can just scan the part and get instant, consistent reports—making quality control efficient and scalable.
  • Built-in PTB-certified software
  • Automated & intuitive inspection
  • Effortless reporting & export

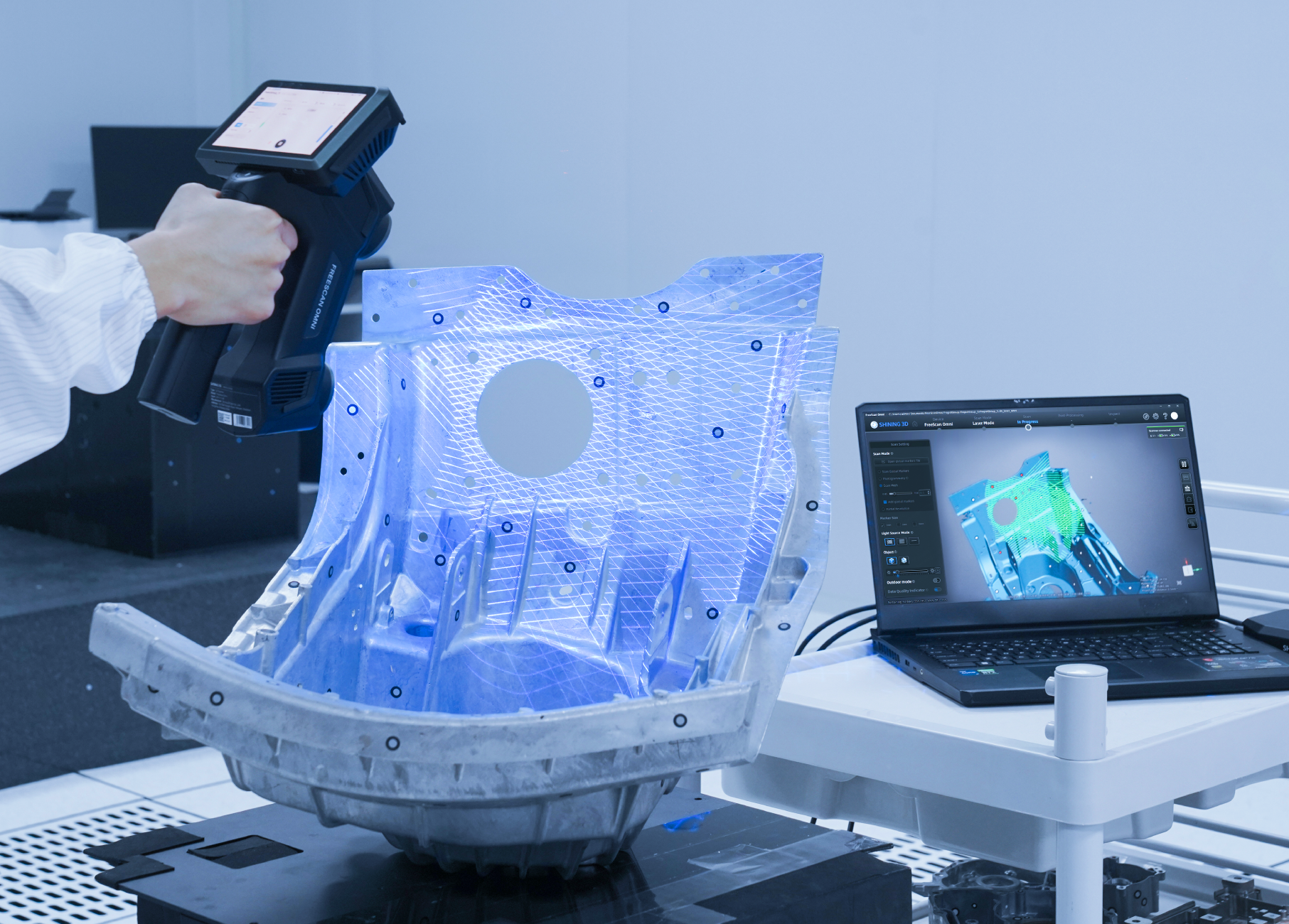

Engineered for On-Site Quality Control

Engineered for On-Site Quality Control

  • Certified metrology accuracy: Delivers reliable volumetric accuracy of 0.02 + 0.03 mm/m for reliable and consistent measurement results.
  • Blazing-fast performance: Powered by a high-performance processor, the system leverages an edge-based computing module for rapid 3D scanning and data processing, significantly enhancing workflow efficiency.

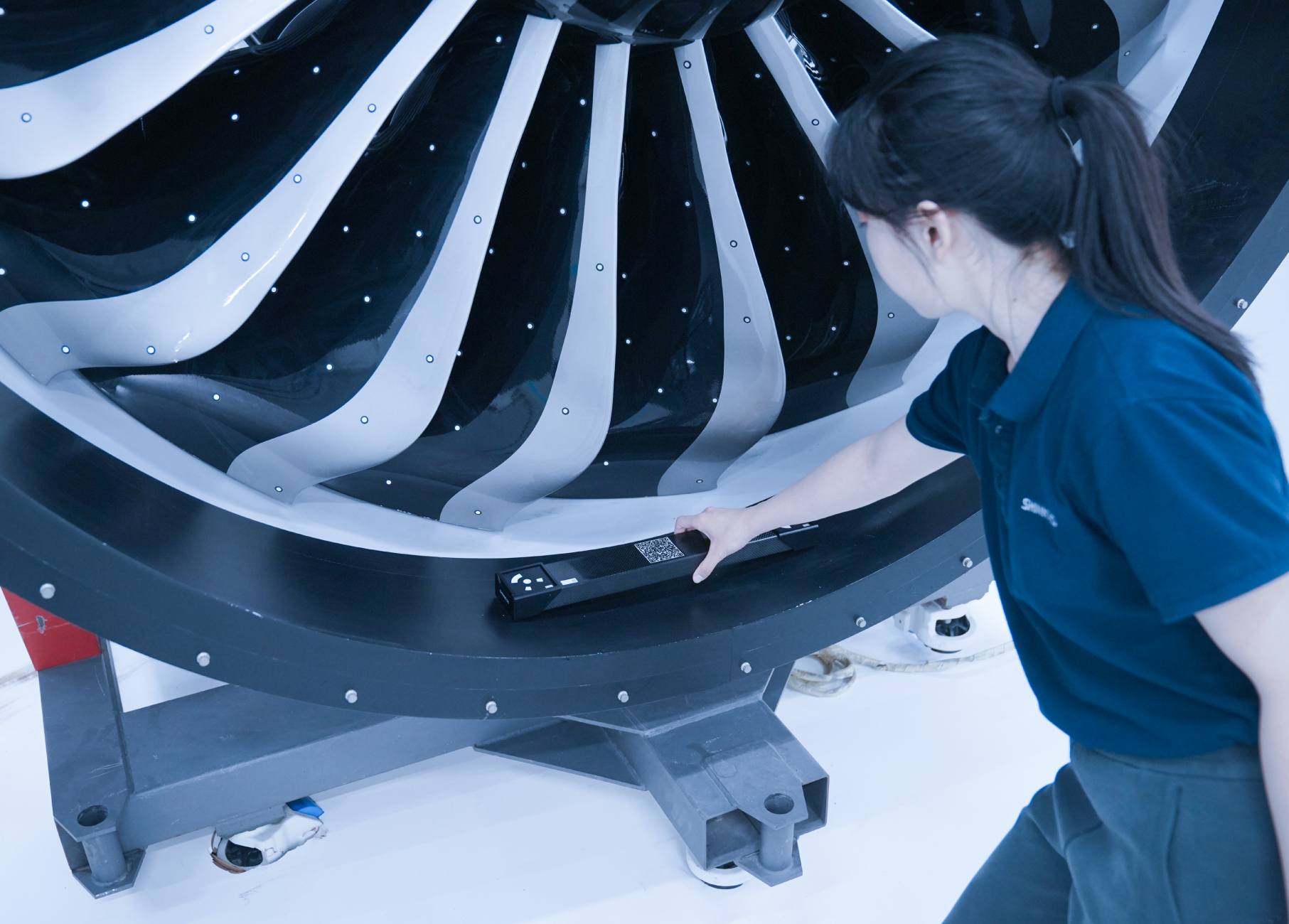

Video Photogrammetry (VPG)

Video Photogrammetry (VPG)

FreeScan Omni features SHINING 3D’s patented video photogrammetry (VPG), which eliminates the need for coded markers. By integrating photogrammetry technology with a calibration rod, it enables real-time marker verification through video capture. This ensures consistent volumetric accuracy and streamlines the setup process for efficient large-object scanning.

Power Without Limits

Power without Limits

FreeScan Omni delivers a fully wireless experience, eliminating power cords and data cables. Scanning, processing, and inspection run entirely on the device. Detachable battery packs enable seamless swaps without downtime.

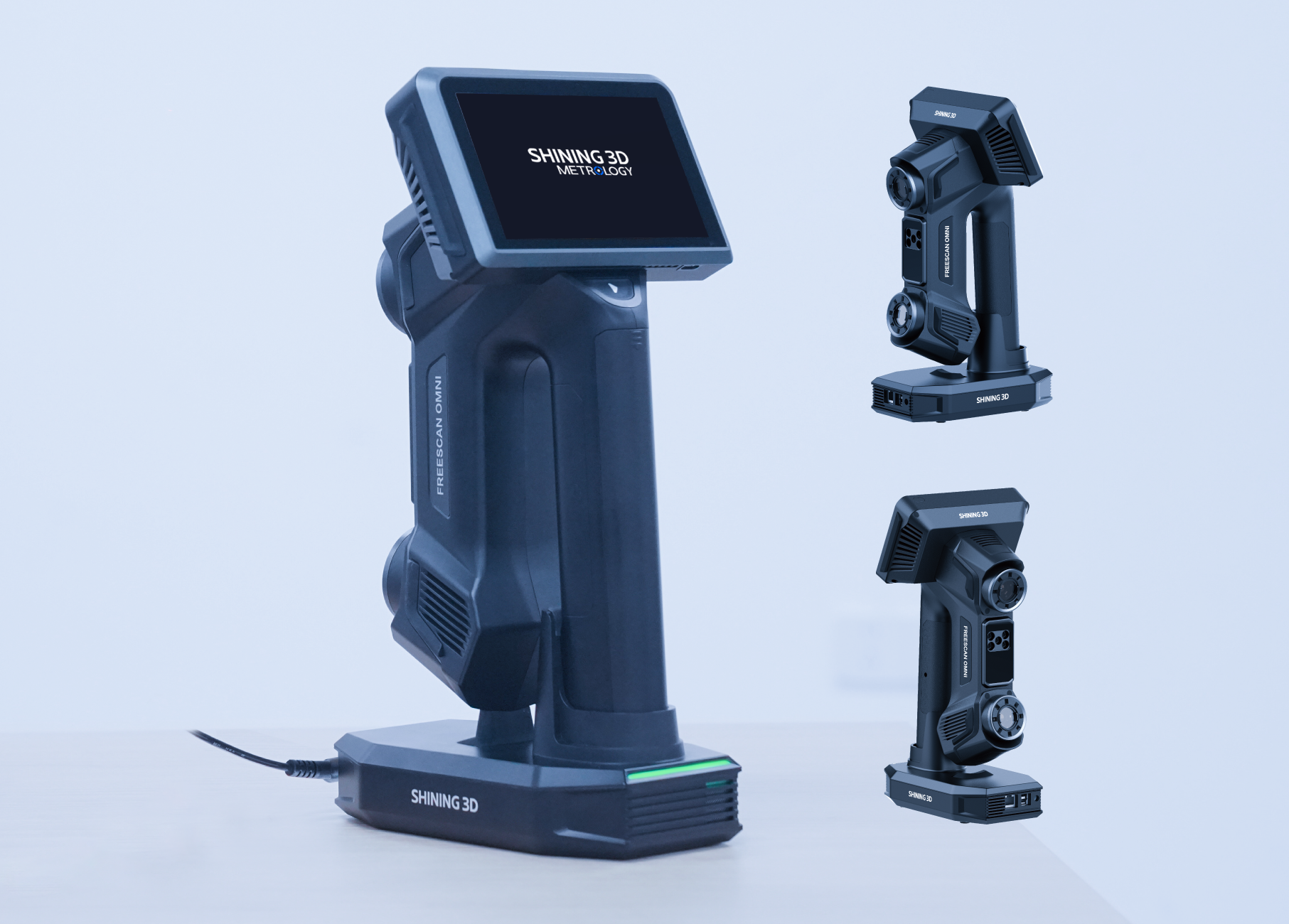

Power & Wi-Fi Set in One Dock

Power & Wi-Fi Set in One Dock

  • Quick power boost — always ready to go.
  • Auto network setup — just dock once to connect.

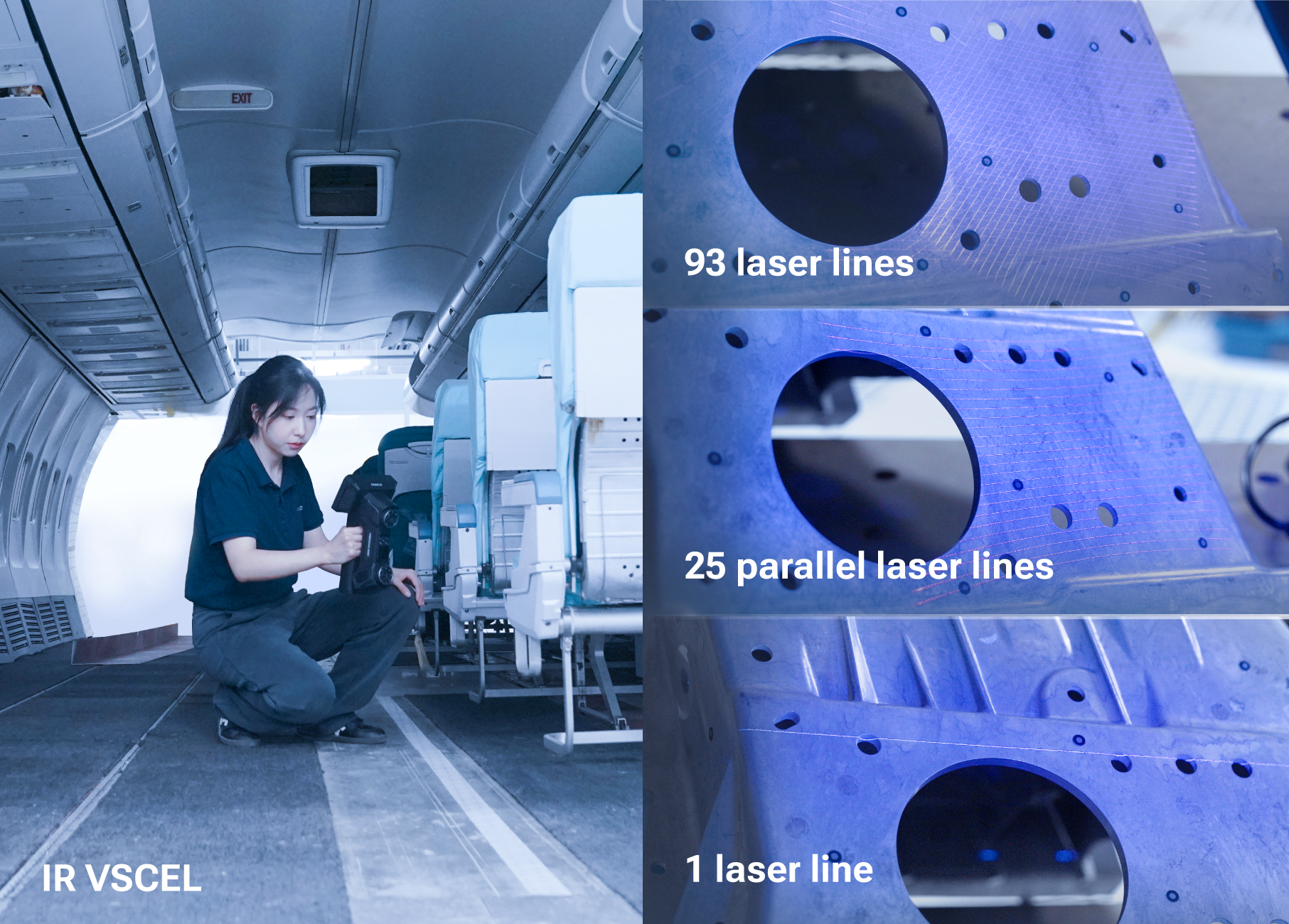

Multiple Scanning Modes for Industrial Usage

Multiple Scanning Modes for Industrial Usage

  • High-speed scan mode with 93 laser lines for overall scans
  • Detailed scan mode with 25 parallel laser lines
  • Deep pockets scan mode with 1 laser line
  • IR rapid scan mode for quick scans without markers
custom support for your needs1

Our Support Coverage

At SHINING 3D, we don’t just provide devices – we deliver customized solutions, global support, and a commitment to your success. From intuitive tools to calibrated accuracy, we’re here to empower your work.



What You Can Achieve with Our Scanners

Discover how integrating our scanners into your workflow can enhance efficiency and help you achieve remarkable results.

  • Automotive

    FreeScan Omni is engineered for outstanding adaptability, effortlessly handling a wide range of surface types, including highly reflective and black surfaces. Its advanced Infrared (IR) mode further enhances flexibility by enabling marker-free scanning, making it a highly versatile solution.

    Learn more

  • Construction Machinery

    Designed for demanding environments, FreeScan Omni excels in construction machinery applications, delivering high-accuracy, standalone scanning for complex structural components, enhancing efficiency and precision directly on the job site.

    Learn more

  • Energy / Heavy Industry

    Untethered from cables and laptops, this versatile scanner allows effortless mobility between workspaces. Equipped with a 5.5-inch touchscreen and rechargeable batteries, it delivers a streamlined and user-friendly onsite scanning experience.

    Learn more

  • General Manufacturing Equipment

    In the general manufacturing equipment industry, FreeScan Omni enables high-precision, standalone scanning of complex machinery parts, streamlining quality control and accelerating reverse engineering workflows, all without the need for external cables or laptops.

    Learn more



FreeScan Omni Software

Advanced software for seamless 3D measurement

Inspection module

Inspection Module

Integrated inspection module, certified by PTB, for reliable, high-quality full-size inspection.

Real-time display of mesh data

Real-Time Display of Mesh Data

Displays mesh data in real time during the scanning process, enhancing visual quality and saving time on meshing later.

AI feature recognition

AI Feature Recognition

Intelligent boundary detection enables fast, accurate scanning and measurement of round and square holes, delivering high-accuracy hole data.

High-detail focus

High-Detail Focus

Capture enhanced high-detail data in specific areas of the scan as needed.

Compatible Software

SHINING3D Inspect
SHINING3D Inspect
for 3D Inspection
PolyWorks
PolyWorks
Geomagic Control X
Geomagic Control X
BlueStar Mapping
BlueStar Mapping
for Texture Mapping
geomagic design x
Geomagic Design X

Technical Data

  • High-speed scan Included (93 laser lines) | VCSEL
  • Detailed scan Included (25 parallel laser lines)
  • Deep pockets scan Included (1 laser line)
  • VPG Included (no coded markers required)
  • Accuracy 0.02 mm
  • Volumetric accuracy 0.02 + 0.03 mm/m
  • Volumetric extension accuracy with VPG 0.02 + 0.015 mm/m
  • Scan speed 7,619,000 points/s
  • Resolution 0.01 ~ 10 mm
  • Max. FOV 580 x 650 mm
  • Connection Wireless & Wired mode
  • Depth of field 830 mm (170 ~ 1000 mm)
  • Net weight ≤1.1 kg
  • Certifications CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50, TELEC, TiSAX
  • Acceptance test VDl/VDE 2634 Part3 (certified in ISO 17025 certificated accuracy lab)

Our Expertise, Your Advantage

20

years of experience

400

patents

200

3D scanners sold Worldwide

  • Bradley Jack

    We tested FreeScan Omni today by going through the full workflow, from scanning a part, inspecting it, to generating a ready-to-share inspection report for managers and clients. Everything worked seamlessly. What really stood out is that the entire process is built into the scanner itself, all done in one place, right on the device.

    Bradley Jack,

    Zero3D

  • Dr. Christian Höhl

    I'm truly impressed that a handheld device has the computational power to scan and deliver live results right on the spot. It’s incredibly convenient, not having to go back and forth to a computer for analysis is a game-changer. It just works. Simple and efficient.

    Dr. Christian Höhl,

    Sparkel GmbH

  • Timmy Schramm

    What I really appreciate about the FreeScan Omni is that it has a built-in inspection module, including reporting, right out of the box. It makes the whole process incredibly easy. With the color map, you can instantly see whether the part meets the specs. It's much faster and more streamlined than traditional workflows.

    Timmy Schramm,

    OKM 3D





Frequently Asked Questions

  • How long is the battery life of FreeScan Omni?

    FreeScan Omni requires 4 batteries to operate. Each package includes 8 rechargeable batteries, allowing for continuous scanning of up to 1 hour per set. Thanks to its hot-swappable battery design, you can replace batteries without shutting down the device, enabling uninterrupted scanning.

  • Is the SHINING3D Inspect module permanently maintained and updated after purchasing the Omni?

    Yes, SHINING 3D will continuously maintain and update the SHINING 3D Inspect software and bring new features and improvements, ensuring the software remains powerful and up to date. All FreeScan Omni customers will receive these updates.

  • Besides having SHINING3D Inspect in Omni, will get access to desktop version as well?

    Yes, FreeScan Omni comes with the full version of SHINING 3D Inspect included in the package. It’s available not only on the scanner itself but also as a desktop application, allowing you to create inspection templates or use it as a standalone inspection tool.

  • How is high accuracy maintained when scanning large objects?

    FreeScan Omni comes with a validated scale bar in the package that being integrated with SHINING 3D video photogrammetry technology to verify markers in real time, which is also reusable for multiple times to improve overall accuracy for large object scans.

  • Is there another way to scan and process data besides directly on Omni itself?

    FreeScan Omni is a standalone device, but it can also work with our desktop FreeScan Omni software, to provide more powerful scanning experience and plenty of features to process your data. With FreeScan Omni, you can stream scanning on your desktop, manage multiple projects, fuse resolutions, and take advantage of various data editing tools, all with customizable settings to suit your needs.

  • Does SHINING3D Inspect support cloud license?

    The license is tied to a specific laptop. If you want to use it on a different device, you’ll need assistance from SHINING 3D support to transfer the license.
