Portable Wireless CMM Scanning System

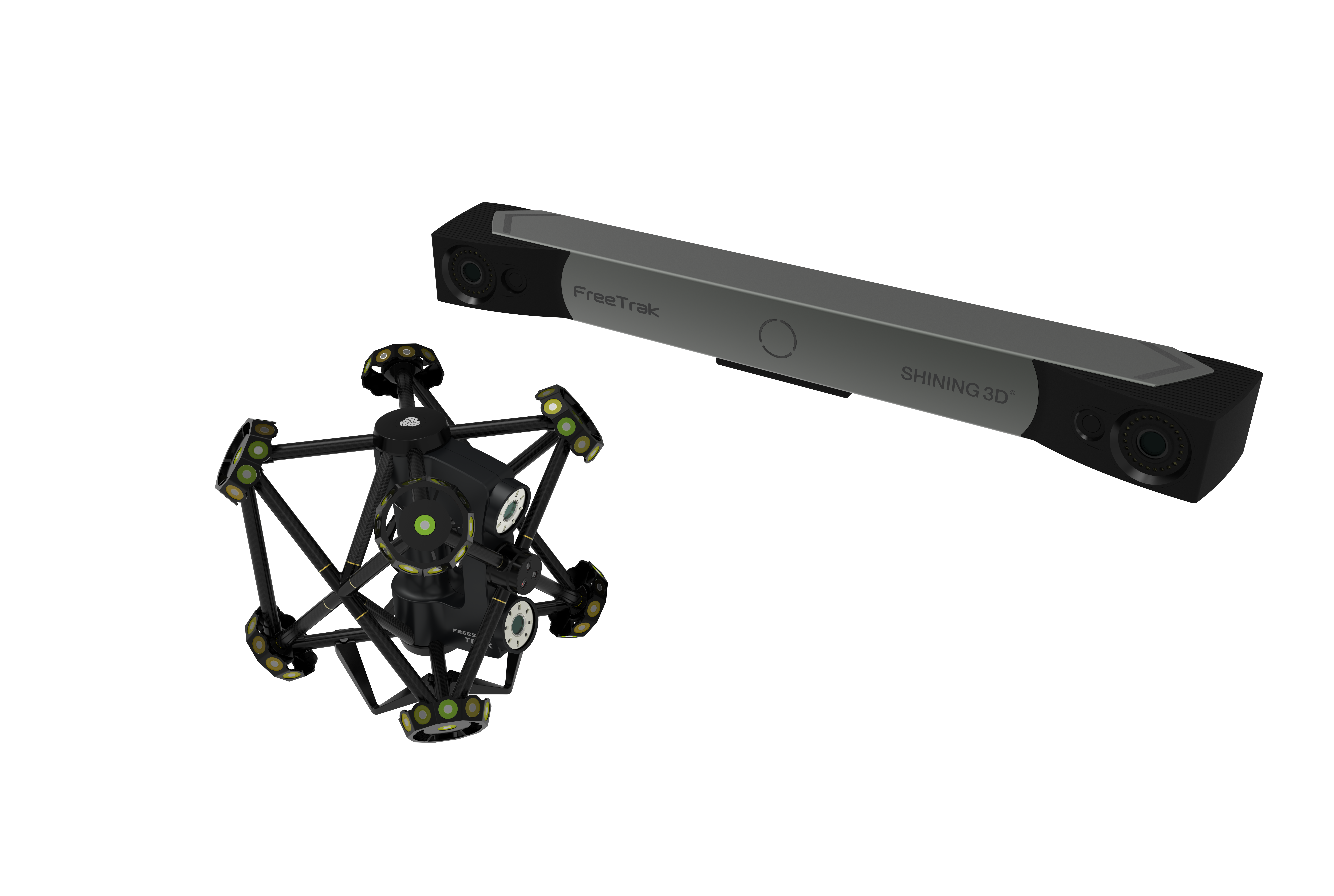

FreeScan Trak

Based on SHINING 3D’s latest technology, the optical tracker is capable of capturing the spatial position of the scanner structure in real time, offering a portable, efficient, and reliable 3D measurement solution. The system helps the operator to get rid of the time-consuming process of sticking markers. This makes it simple to obtain the 3D data of medium to large size objects with metrology-grade accuracy. It is suitable for various static and dynamic applications, including large scale 3D inspection in aerospace, automotive, shipping and energy industries etc.

Features

Specification

Download Brochures

Latest Updates

Related Software

Get a Quote

Features

Dynamic referencing

The markers are used to create a reference structure system. The tracker or the part can be moved freely during measurement, allowing users to scan in unstable environment.

Features

Dynamic referencing

The markers are used to create a reference structure system. The tracker or the part can be moved freely during measurement, allowing users to scan in unstable environment.

Metrology-grade measurements

The accuracy is up to 0.03mm and the resolution can be up to 0.05mm. The system has high repeatability.

Metrology-grade measurements

The accuracy is up to 0.03mm and the resolution can be up to 0.05mm. The system has high repeatability.

Wireless technology

No physical cables between the tracker and the scanner. Use a precise wireless technology between the two terminals to setup 3D scan measurement system.

Wireless technology

No physical cables between the tracker and the scanner. Use a precise wireless technology between the two terminals to setup 3D scan measurement system.

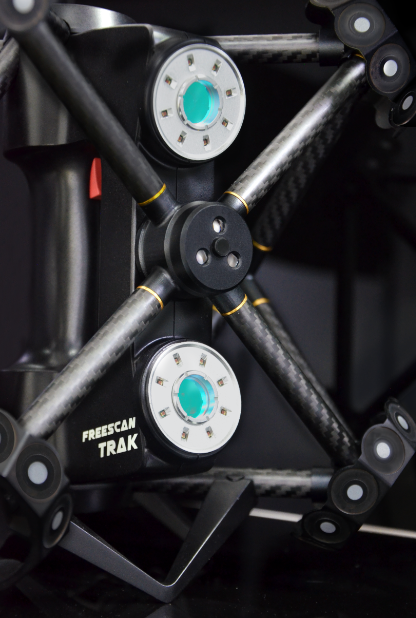

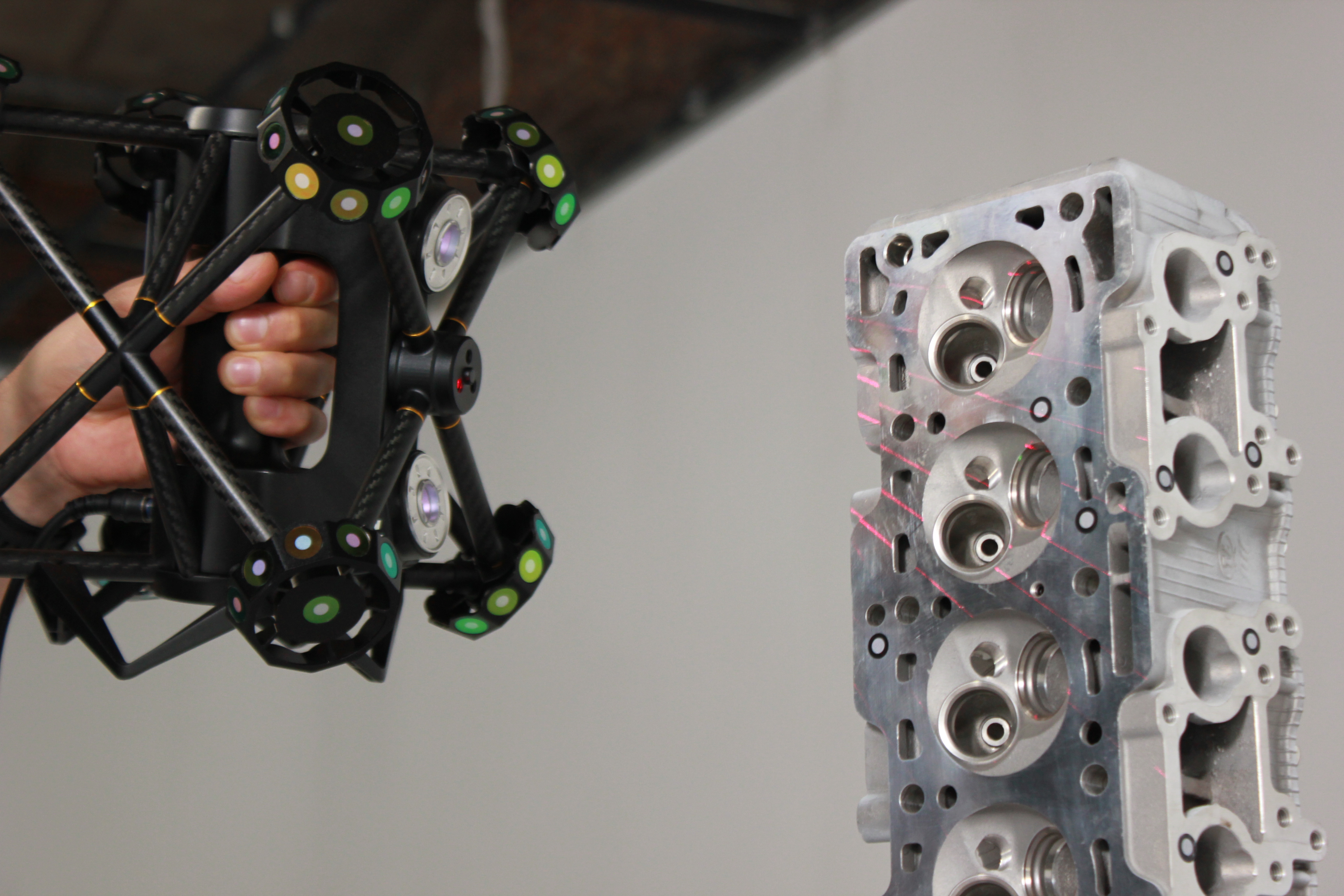

The Scanner

-Independent working mode
The scanner retains the light source and can be used as a standalone scanner to do some scanning jobs.

-AIRMASTER wireless solution
The scanner can be adapted to AIRMASTER™ and does not need any cable connections to the computer or to the optical tracker.

-Lightweight
The weight is 1.2kg and it is easy to be held.

The Scanner

-Independent working mode
The scanner retains the light source and can be used as a standalone scanner to do some scanning jobs.

-AIRMASTER wireless solution
The scanner can be adapted to AIRMASTER™ and does not need any cable connections to the computer or to the optical tracker.

-Lightweight
The weight is 1.2kg and it is easy to be held.

Specification

Accuracy	Up to 0.03mm
Volumetric Accuracy	15m³ ,0.1mm
Resolution	0.05mm
Measurement Rate	480,000 measurements/s
Part Size Range (recommended)	0.2–6m
Connection Type	Support wireless and wired connection

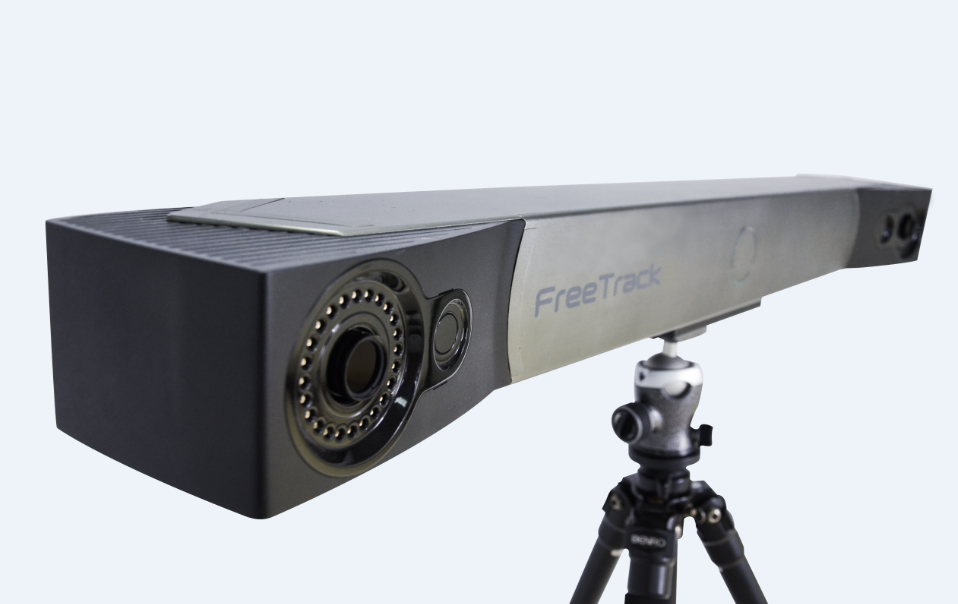

FreeTrak-Weight	7.2kg
FreeTrak-Dimensions	1079mm x 237mm x 110mm
FreeTrak-Light Source	Infrared LED
FreeTrak-Laser Class	N/A
FreeTrak-Stand-off Distance	3000mm
FreeTrak-Depth-of-field	2000mm
FreeTrak-Scanning Area	3000mm x 2500mm
Connection Standard	IEEE802.11n/ac, IEEE802.3ab
Output Formats	.stl、.asc
Operating Temperature Range	5–40°C
Operating Humidity Range (non-condensing)	10–90%
FreeScan Trak-Weight	1.2kg(scanner)+900g(airmaster)
FreeScan Trak-Dimension	210mm210mm215mm
FreeScan Trak-Light Souce	RED LED & 7 Laser Crosses + 1 extra line
FreeScan Trak-Laser Class	Class Ⅱ(eye safe)
FreeScan Trak-Stand-off Distance	300mm
FreeScan Trak-Depth-of-field	250mm
FreeScan Trak-Scanning Area	275mm*250mm
