Customizing treatments with additive manufacturing
As additive manufacturing technologies continue to advance so do their applications and accessibility. While rapid prototyping and tooling have been at the forefront of 3D printing, the endgame has always been to be able to print directly into production, or direct to manufacturing. The medical world is no different. While the first applications of 3D printing in medical fields were prototyping and visualization guides, the technology has finally reached the point of customized implants using state of the art 3D Printers.
SHINING 3D has always stayed true to their vision of making customized 3D solutions available to everyone. With the latest line of 3D Metal Printers SHINING 3D has attracted the attention of partners in the medical world that are putting this technology to incredible use. One of the partners that is pioneering the way medical implants are created and used is MANTIZ.
MANTIZ is a medical device company driven to utilize superior engineering and technology to achieve pain-free, active lives for all patients with spinal disorders. MANTIZ has received KFDA Certification (Medical device approval) and was listed in the HIRA (Health insurance review and assessment) list for South Korea. MANTIZ started the development of their 3D Printed Cage implants in 2018 with the approval and funding of their government. In May of 2019, they launched PANTHER 3D printed cage system for PLIF (posterior lumbar interbody fusion) /TLIF / OLIF / ALIF surgery. This process would use their 3D printed cage implants without the need of outsourcing the production process to a 3rd party. This in turn saves the clients time, money, and the reduces the chances of mistakes in production. MANTIZ is using the EP-M250 metal 3d printer from SHINING 3D to manufacture Titanium 3D printed cages and use them in the implant surgery. The entire process to make the shape of implants is done in-house by MANTIZ. The cages are designed to specification; size, material, shape and porosity are all vital to the effectiveness of the implant. The completed design for the cages is uploaded into the printer’s software where it is prepped for printing. Using the EP-M250’s large print bed they are able to print over 50 individual implants in one build. Once implanted, the surrounding bone and tissue begin to fuse with the implant creating a solid structure in the patient’s spine. The inventor of PANTHER 3D printed cage system in MANTIZ, Hongwon Yoon (CTO of MANTIZ), said “We have completed the development of more improved Titanium 3D printed cage implant using EP-M250 metal 3d printer. The mechanical test results prove the safety and functionality of our implants. The average closed porosity of 3D printed titanium solid part is 3%. It leads to accelerated protein and mesenchymal stem cell attachment for bone fusion.”
Please see the images below to see the complete process, from design to print and from print to implant. The world of 3D printing continues to grow and while the technology advances, so do the direct applications. Having the capability of customization right at your fingertips has never been more accessible. Automotive, aerospace, and medical industries are now 3D printing directly into production and we’ve only just scratched the surface of what the technology is capable of. For more information on how you can apply additive manufacturing into your everyday workflow, please contact SHINING 3D directly at firstname.lastname@example.org
Design and 3D Printing Process:
Designing the implant cage in professional 3D software

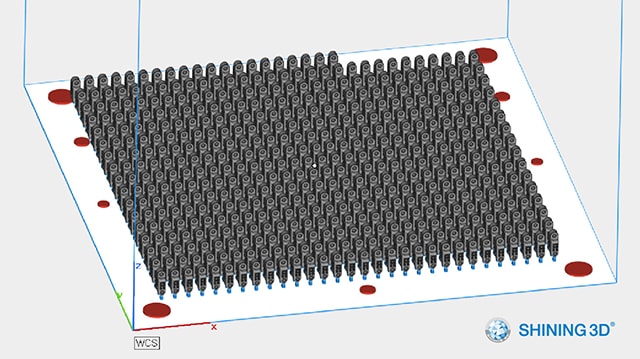

Prepping the parts in 3D printing software

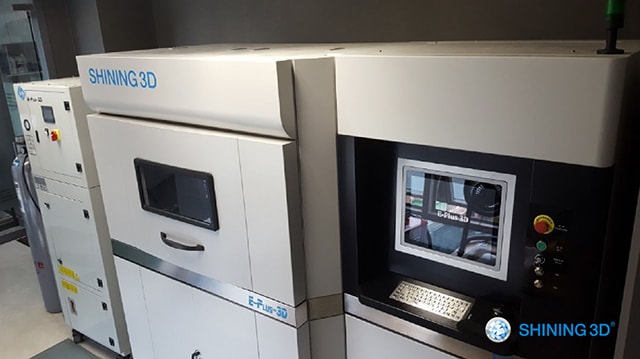

Using SHINING 3D’s EP-M250 for 3D printing

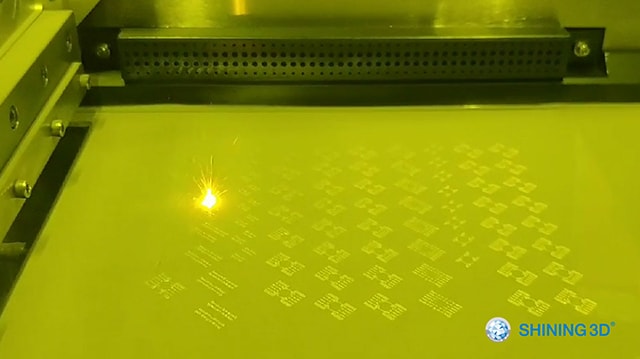

Metal 3D printing process in the chamber
3D Printed cages

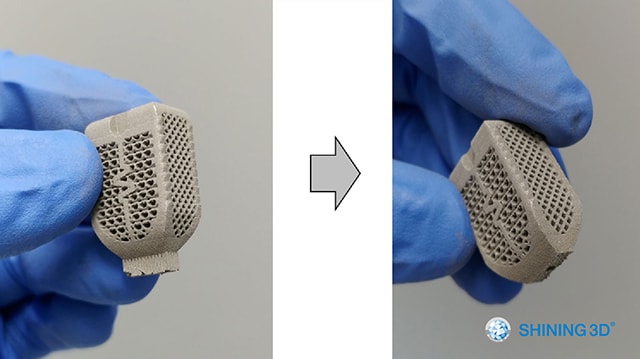

Post processing including heat treatment, removal of supports, surface treatment, disinfection, etc.

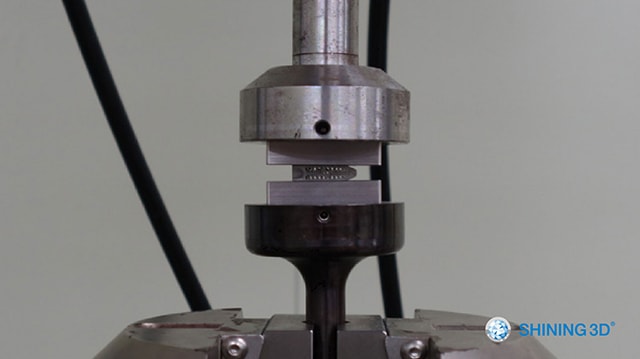

Only after a series of mechanical tests, the 3D Printed cage can be applied in surgery.

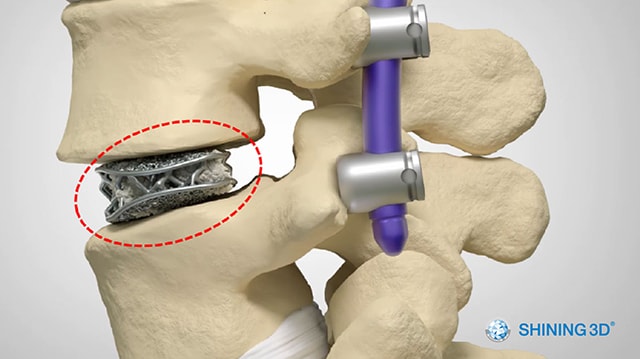

Through the process of “design-3D printing-post-processing-testing”, the PANTHER can be ready for operating surgery. Currently, the PANTHER has already been applied in treatment for patients.
Advantage of Titanium 3D Printed Cage:

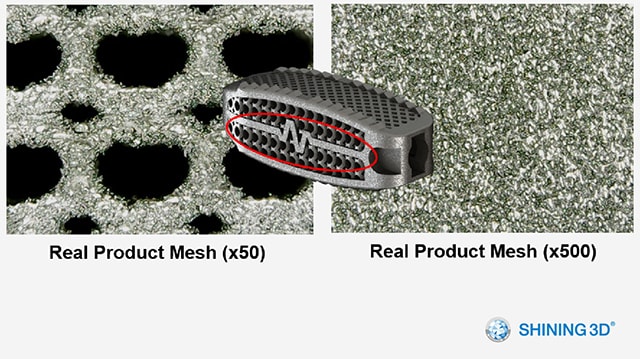

PANTHER has been created to optimized bone in-growth in spinal procedure, with an average pore size range of 630-730μm on the surface in contact with the vertebral body end plate and an average mesh part porosity range of 70%-80%.

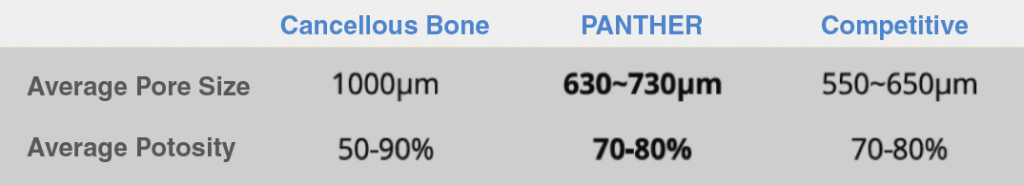

Average Pore Size
